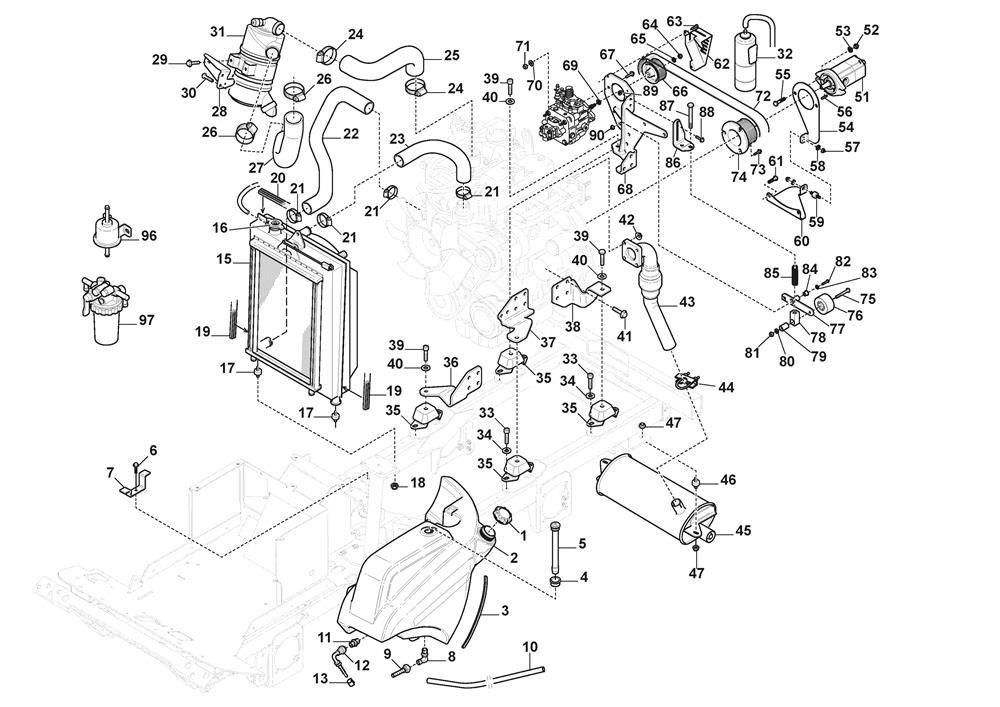

Engine assembly details for Stiga TITAN 740 D 2017 (13-7460-11) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1135-3381-01	FUEL TANK CAP	£68.42	Add to
002	1137-0656-01	FUEL TANK	£688.44	Add to
004	1135-2528-01	RUBBER SLEEVE	£9.23	Add to
005	1135-2526-01	FUEL LEVEL INDICATOR	£156.99	Add to
006	9945-0816-16	SCREW M8 X 16	£2.54	Add to
007	1135-2522-01	FUEL TANK CLAMP	£30.26	Add to
010	9505-0002-01	FUEL HOSE (PER METER)	£10.78	Add to
011	387520119/0	LOWER STEERING COLUMN	£74.87	Add to
013	9578-0023-02	HOSE CLAMP	£5.73	Add to
015	1137-0690-01	RADIATOR	£1,401.28	Add to
016	1139-2122-01	RADIATOR CAP	£52.06	Add to
017	9550-0008-03	VIBRATION DAMPER	£20.72	Add to
019	084-312-01	SEALING STRIP 700140	£20.87	Add to
020	084-239-01	SEALING STRIP 700180	£21.90	Add to
021	085-520-01	HOSE CLAMP (OBSOLETE)	N/A
022	1137-0566-01	RADIATOR HOSE (OBSOLETE)	N/A
023	1137-0565-01	RADIATOR HOSE	£62.20	Add to
024	087-510-01	HOSE CLAMP 44-56	£7.78	Add to
025	1137-0568-01	AIR INTAKE HOSE	£60.93	Add to
026	085-018-01	HOSE CLAMP 50-65 ABA	£8.15	Add to
027	1134-7460-01	HOSE	£49.34	Add to
028	1137-0558-01	AIR FILTER BRACKET	£69.78	Add to
029	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
030	112792610/0	HEX-HEAD SCREW M8 x 16	£2.02	Add to
031	1135-3961-01	AIR FILTER ASSEMBLY	£183.07	Add to
032	1135-2751-01	EXPANSION TANK	£73.87	Add to
033	9939-1020-16	SCREW	£2.06	Add to
034	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
035	084-362-01	ENGINE SUPPORT RUBBER	£266.01	Add to
036	1137-0513-01	ENGINE BRACKET-BLACK	£94.13	Add to
037	1137-0514-01	ENGINE BRACKET-BLACK	£105.21	Add to
038	1137-0512-01	ENGINE BRACKET-BLACK	£94.13	Add to
039	9997-1230-16	SCREW M6S M12 x 30	£2.47	Add to
040	122671652/0	WASHER 12.3 x 20 x 2	£2.74	Add to
041	9959-1225-16	SCREW M6SF 8.8	£2.06	Add to
042	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
043	1137-0578-01	EXHAUST PIPE	£204.69	Add to
044	084-351-01	TUBE CLAMP	£10.23	Add to
045	1137-0576-01	MUFFLER	£272.82	Add to
046	9550-0008-03	VIBRATION DAMPER	£20.72	Add to
047	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
051	1135-2517-01	HYDRAULIC PUMP-PTO	£722.51	Add to
052	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
053	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
054	1135-2579-01	LEVER-PTO PUMP	£101.13	Add to
055	112794400/0	HEX-HEAD SCREW 10 x 35	£2.47	Add to
056	1139-0006-01	KEY (FOR HYDRAULIC PUMP)	£7.92	Add to
057	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
059	9550-0008-03	VIBRATION DAMPER	£20.72	Add to
060	1137-0560-01	BRACKET	£46.61	Add to
061	9997-1225-16	SCREW M6S M12 x 25	£4.52	Add to
063	9959-0616-16	SCREW M6SF M6 X 16	£2.06	Add to
064	112156603/0	SELF-LOCKING NUT M12	£2.06	Add to
065	122671652/0	WASHER 12.3 x 20 x 2	£2.74	Add to
066	1137-1069-01	PUMP PULLEY	£117.47	Add to
067	112794400/0	HEX-HEAD SCREW 10 x 35	£2.47	Add to
068	1137-0517-01	HST-PUMP BRACKET	£484.04	Add to
069	1137-0604-01	SPACER	£26.18	Add to
070	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
071	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
072	9585-0222-01	POLY-V BELT	£58.87	Add to
073	9997-1225-16	SCREW M6S M12 x 25	£4.52	Add to
074	1137-1070-01	ENGINE PULLEY	£306.88	Add to
076	1137-1071-01	TENSION ROLLER	£315.28	Add to
077	1137-0526-01	TENSION ARM	£99.76	Add to
078	1137-0529-01	BLOCK	£32.68	Add to
079	1137-0530-01	SLEEVE	£16.54	Add to
080	122671652/0	WASHER 12.3 x 20 x 2	£2.74	Add to
081	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
082	9997-1065-12	SCREW M6S M10 x 65	£5.73	Add to
083	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
084	9544-0023-01	BEARING	£2.87	Add to
085	1137-0599-01	SPRING	£14.05	Add to
086	1137-0532-01	BRACKET	£64.32	Add to
087	9939-1213-02	SCREW	£3.69	Add to
088	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
089	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
090	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
096	1135-2745-01	FUEL FEED PUMP	£441.19	Add to
097	1135-2818-01	WATER SEPARATOR	£266.01	Add to
