Selector Valve

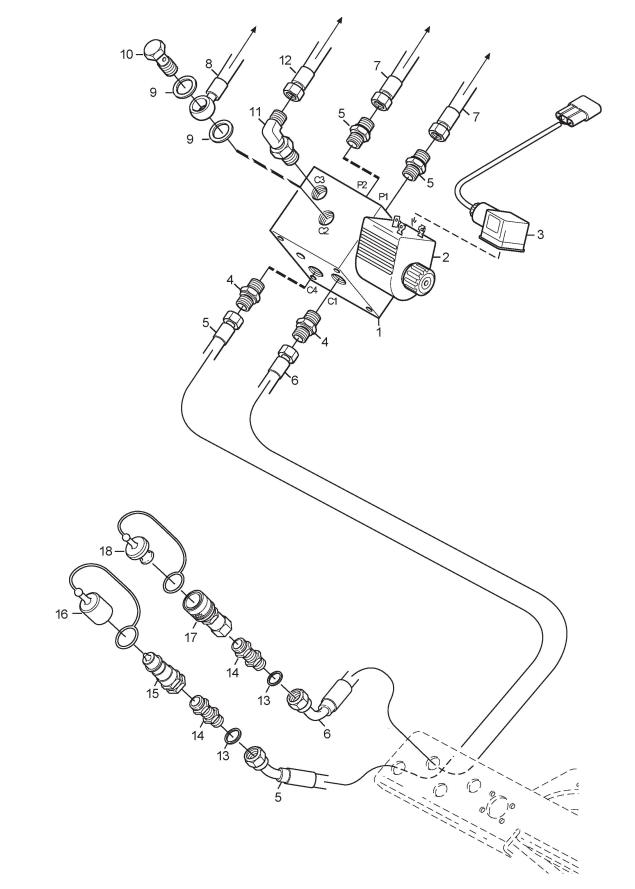

Selector Valve assembly details for Stiga TITAN 540 D 2017 (13-7454-11) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011135-2538-01SELECTOR VALVE£895.20 Add to
0021139-2097-01MAGNET VALVE£343.20 Add to
0031137-0903-01CABLE HARNESS PTO£89.77 Add to
0041134-7165-01HYDRAULIC CONNECTOR£8.52 Add to
0051137-0186-04HYDRAULIC HOSE L=350mm 45° ¼"£29.34 Add to
0061137-0186-05HYDRAULIC HOSE L=330mm 45° ¼"£28.96 Add to
0071137-0185-20HYDRAULIC HOSE 90° ¼"£30.70 Add to
0081137-0631-01HYDRAULIC HOSE L=1595mm 1/4"£63.98 Add to
0091134-4948-01SEAL WASHER 1/4"£3.24 Add to
0101135-2704-01BANJO BOLT£6.90 Add to
0111135-2703-01HYDRAULIC COUPLING£15.03 Add to
0121137-0184-06HYDRAULIC HOSE 1/4"£53.36 Add to
0131134-4948-01SEAL WASHER 1/4"£3.24 Add to
0141134-7296-01HYDRAULIC COUPLING 1/4"£17.88 Add to
0151135-2498-01KNOB£7.80 Add to
0161134-7173-01PLASTIC PLUG 1/4"£13.24 Add to
0171134-6042-01QUICK COUPLING-MALE 1/4"£27.17 Add to
0181134-7175-01PLASTIC CAP£8.76 Add to
