Electrical System

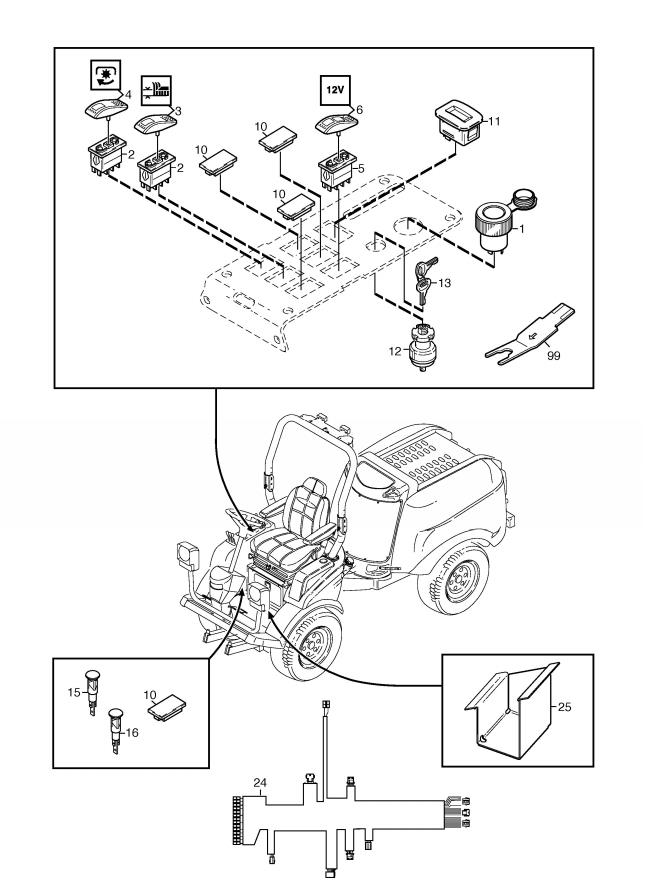

Electrical System assembly details for Stiga TITAN 540 D 2017 (13-7454-11) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0019400-0317-02DC-SOCKET£17.72 Add to
0029400-0282-01SWITCH C/W DIODE£76.59 Add to
0039400-0280-03SWITCH COVER-HEIGHT ADJUST£18.27 Add to
0049400-0343-01SWITCH COVER-PTO£9.28 Add to
0059400-0321-01SWITCH£61.60 Add to
0069400-0322-01SWITCH COVER-12V£16.22 Add to
0101134-4129-01COVER£6.14 Add to
0111134-6097-02HOUR METER£102.01 Add to
0121135-2754-01IGNITION KEY SWITCH£156.31 Add to
0131139-2505-01IGNITION KEY [PAIR]£41.16 Add to
0159400-0320-01PILOT LAMP [RED]£10.33 Add to
0169400-0346-01PILOT LAMP [FLASHING RED]£15.41 Add to
0241137-0817-01WIRING HARNESS£409.09 Add to
0251137-0697-01STORAGE BOX£55.21 Add to
