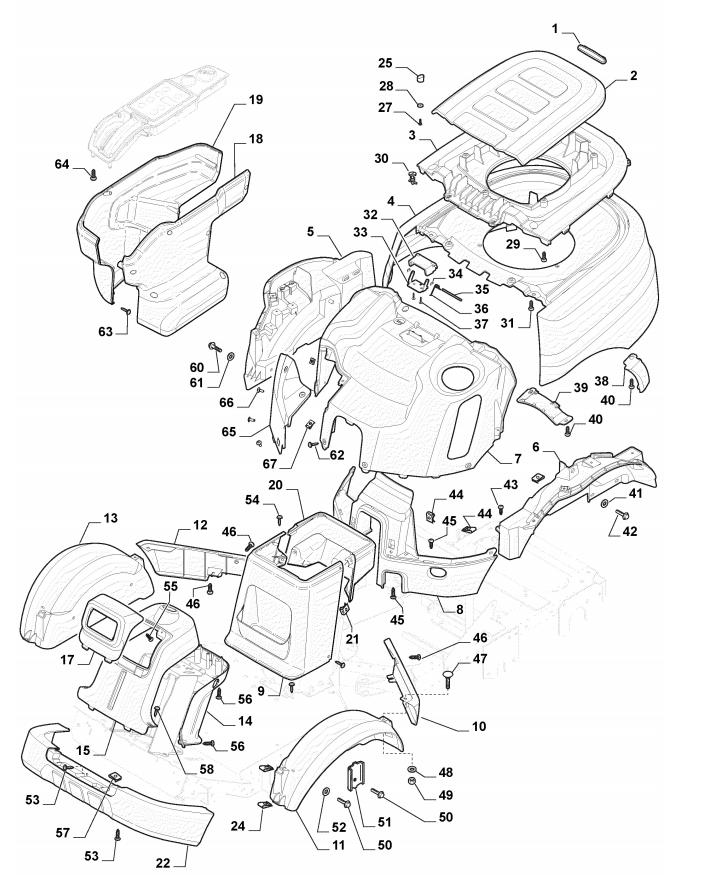

Body assembly details for Stiga PARK PRO 340 IX 2017 (13-6451-11) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001337120281/0REAR CAP [GREY]£3.83 Add to
002337110302/0ENGINE TOP COVER [GREY]£45.26 Add to
003337110301/0ENGINE COVER [GREY]£67.05 Add to
004337076801/0ENGINE COVER [YELLOW]£197.87 Add to
005337110304/0RIGHT REAR WHEELS COVER [BLACK]£129.74 Add to
006337110305/0LEFT REAR WHEELS COVER [BLACK]£117.47 Add to
007337110328/0FUEL TANK COVER [GREY]£80.68 Add to
008337502500/0CENTRAL BUMPER [GREY]£69.78 Add to
009337207102/0COVER [BLACK]£20.45 Add to
010337110311/0LEFT MOULDING [GREY]£14.73 Add to
011337491251/0LEFT FRONT MUDGUARD [GREY]£110.66 Add to
012337110312/0RIGHT MOULDING [GREY]£14.73 Add to
013337491250/0RIGHT FRONT MUDGUARD [GREY]£117.47 Add to
014337110307/0STEERING REAR COVER [GREY]£19.22 Add to
015337110306/0STEERING FRONT COVER [YELLOW]£49.34 Add to
017337110308/0FRONT LAMP COVER [GREY]£9.14 Add to
018337110320/0LEFT COMMAND ARM COVER [YELLOW]£56.15 Add to
019337110319/0RIGHT COMMAND ARM COVER [YELLOW]£68.81 Add to
020337207103/0REAR COVER [BLACK]£8.73 Add to
0211134-4176-01CLIP£5.19 Add to
022337502502/0FRONT BUMPER [GREY]£42.53 Add to
0249893-0616-16SCREW M6 x 16£2.47 Add to
025337120280/0CAP [GREY]£2.47 Add to
027112728698/0SELF-TAPPING SCREW K50 x 20£2.06 Add to
027112728698/0SELF-TAPPING SCREW K50 x 20£2.06 Add to
028112523030/0WASHER M5 5.5 x 20 x 1.6£2.06 Add to
029112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
030125580020/2SPRING TENSIONED SCREW£7.23 Add to
031112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
032337394200/0ENGINE BONNET HANDLE [GREY]£4.10 Add to
033337785021/0HANDLE SUPPORT BRACKET£15.52 Add to
034112000915/0CIRCLIP D=4£2.06 Add to
035137510300/0HANDLE BONNET PIN£5.76 Add to
036137430100/0SPRING£5.87 Add to
038337109532/0REAR BUMPER END COVER L/H£4.37 Add to
039337109531/0REAR BUMPER END COVER R/H£4.37 Add to
0409893-0616-16SCREW M6 x 16£2.47 Add to
041112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0421134-4242-01SPACER WASHER£4.78 Add to
0439893-0616-16SCREW M6 x 16£2.47 Add to
0441134-4176-01CLIP£5.19 Add to
0459893-0616-16SCREW M6 x 16£2.47 Add to
0469893-0616-16SCREW M6 x 16£2.47 Add to
047112815200/0SCREW TTDQ M6X16£2.06 Add to
048112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
049112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0501134-4242-01SPACER WASHER£4.78 Add to
0511137-0088-01SUPPORT PLATE£2.74 Add to
052112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0539893-0616-16SCREW M6 x 16£2.47 Add to
0541134-4176-01CLIP£5.19 Add to
056112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
0571134-4176-01CLIP£5.19 Add to
0589893-0616-16SCREW M6 x 16£2.47 Add to
0601134-4242-01SPACER WASHER£4.78 Add to
061112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0629893-0616-16SCREW M6 x 16£2.47 Add to
063112727796/0SCREW TCB TORX M5 x 12£2.06 Add to
065337487520/0BATTERY DOOR [GREY]£13.77 Add to
0669893-0616-16SCREW M6 x 16£2.47 Add to
0671134-4176-01CLIP£5.19 Add to
