Transmission

Transmission assembly details for Stiga PARK 220 2017 (2F5820321/S16) 2017 model

Parts list

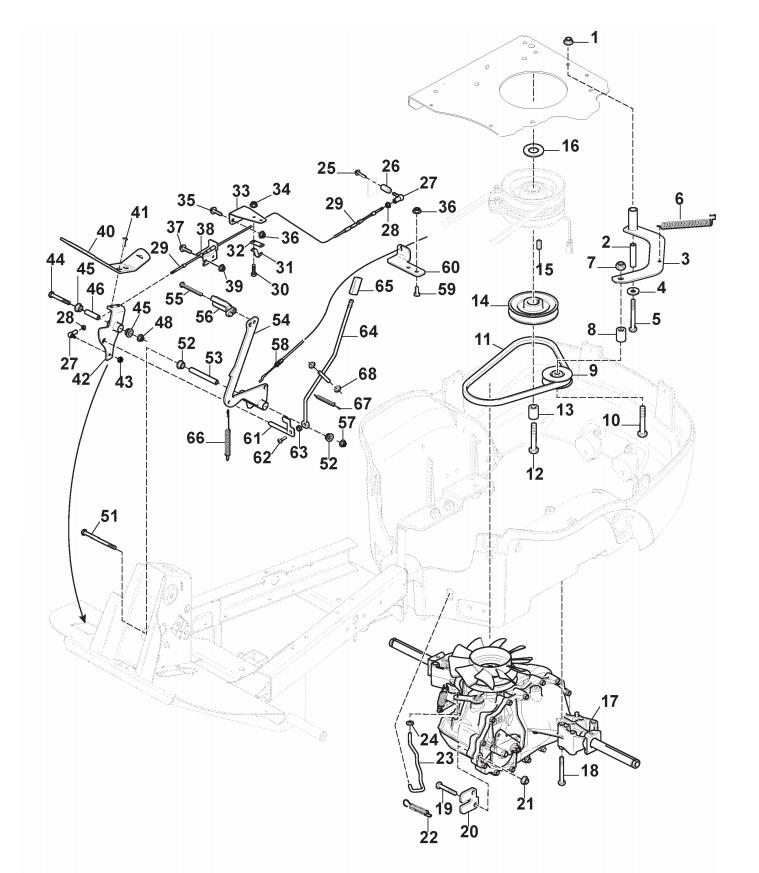

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
002	1134-1565-08	SPACER	£9.94	Add to
003	1137-0769-01	TENSION ARM	£30.56	Add to
004	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
005	112793905/0	HEX-HEAD SCREW M8 x 70	£2.32	Add to
006	1131-1507-00	SPRING	£34.35	Add to
007	9739-1031-22	NUT M10	£2.32	Add to
008	1134-5210-05	SPACER	£7.36	Add to
009	387605012/0	TENSION PULLEY	£59.68	Add to
010	112692395/2	SCREW M10 x 60	£3.49	Add to
011	1134-9168-01	TRANSMISSION BELT	£21.67	Add to
012	9987-5332-16	SCREW U6S 7/16" UNF x 32	£2.47	Add to
013	1137-0835-01	SPACER	£4.52	Add to
014	1137-0714-01	ENGINE PULLEY	£26.16	Add to
015	9600-0251-00	KEY L=3/4"	£4.91	Add to
016	1134-5017-02	WASHER 40 x 11.5 x 4	£3.15	Add to
017	1137-0890-01	TRANSAXLE T2	£874.01	Add to
018	9960-0860-12	SCREW M8 x 60	£2.32	Add to
019	112691400/0	HEX-HEAD SCREW M8 X 50	£1.76	Add to
021	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
022	1137-0936-01	SPRING	£2.18	Add to
024	112604896/0	STARLOCK WASHER D=6	£2.06	Add to
025	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
026	1134-4013-01	SPACER	£20.24	Add to
027	9570-0001-00	ELBOW LINK	£18.90	Add to
028	9739-0531-22	NUT M5	£2.47	Add to
029	1134-2766-10	SPEED CONTROL CABLE	£87.07	Add to
030	112789008/0	HEX-HEAD SCREW M5 x 20	£2.06	Add to
031	1134-0267-00	CLAMP PLATE	£7.11	Add to
032	1134-0266-00	ATTACHING CLAMP	£7.36	Add to
034	9739-0531-22	NUT M5	£2.47	Add to
035	9959-0825-16	SCREW FLANGED TE M6SF M8 x 25	£2.06	Add to
036	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
037	9959-0620-16	SCREW	£2.32	Add to
038	337774041/0	CABLE BRACKET	£7.92	Add to
039	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
040	337506741/0	HYDROSTATIC PEDAL	£34.35	Add to
041	9893-0616-16	SCREW M6 x 16	£2.47	Add to
042	387318259/0	BRACKET	£24.95	Add to
043	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
044	112691800/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
045	1134-6313-01	BEARING	£7.36	Add to
048	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
051	9997-0811-02	SCREW M6S M8 x 110	£3.69	Add to
052	1134-6313-01	BEARING	£7.36	Add to
054	387500007/0	PARKING PEDAL	£41.87	Add to
055	9930-0870-12	SCREW M8 x 70	£2.14	Add to
056	1137-0959-01	PARKING BRAKE PEDAL	£4.78	Add to
057	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
058	1137-0992-01	BRAKE CABLE	£41.16	Add to
059	9959-0620-16	SCREW	£2.32	Add to
061	1137-0825-01	LOCKING ARM	£8.73	Add to
062	9893-0616-16	SCREW M6 x 16	£2.47	Add to
063	1137-0872-01	SPACER	£2.06	Add to
065	1137-0952-01	KNOB	£2.06	Add to
066	1131-1507-00	SPRING	£34.35	Add to
067	1137-1092-01	SPRING	£2.18	Add to
068	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
