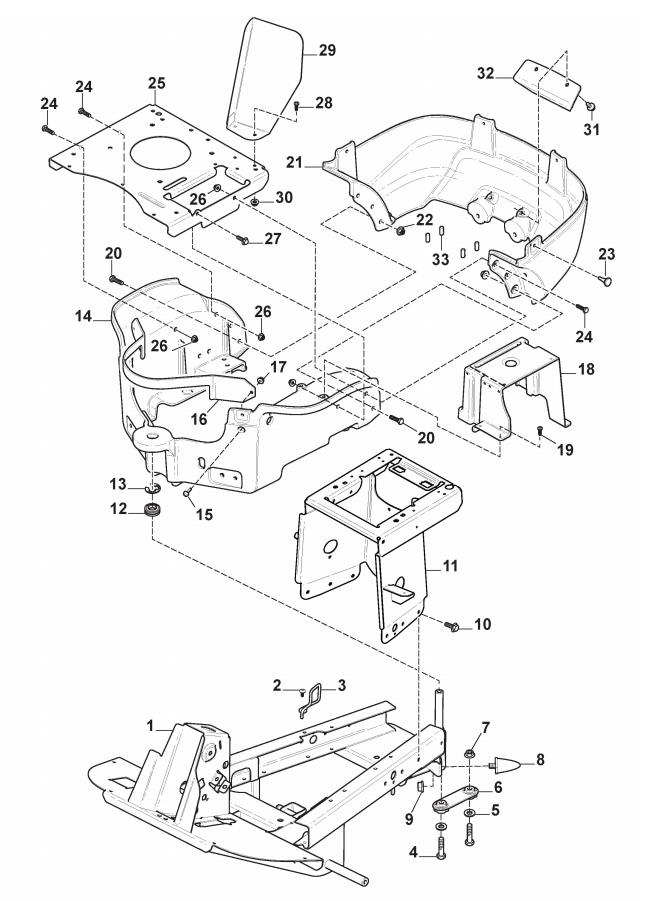

Frame assembly details for Stiga PARK 220 2017 (2F5820321/S16) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387800019/1FRONT FRAME ASSEMBLY£456.94 Add to
0029945-0816-16SCREW M8 X 16£2.54 Add to
003137600037/0PULLEY PROTECTION GUIDE£17.45 Add to
004112794900/0HEX-HEAD SCREW M10 x 50£2.06 Add to
0059699-0109-02WASHER 10.5 x 40 x 2£2.32 Add to
0061137-0963-01LINK PLATE£40.71 Add to
0079739-1031-22NUT M10£2.32 Add to
0081137-0064-01RUBBER CONE£42.53 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0109945-0816-16SCREW M8 X 16£2.54 Add to
011387785213/1SEAT BRACKET ASSEMBLY£156.99 Add to
0129547-0008-01BEARING£10.25 Add to
013112610200/0CIRCLIP D=30£1.79 Add to
014387800029/1REAR FRAME FRONT SIDE£504.47 Add to
015112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
017112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0181137-0914-01TANK BRACKET£31.10 Add to
0199893-0616-16SCREW M6 x 16£2.47 Add to
0209959-0825-16SCREW FLANGED TE M6SF M8 x 25£2.06 Add to
021387800031/0REAR FRAME REAR SIDE£378.23 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
023127275000/0RUBBER GROMMET FOR BRAKE PEDAL£3.55 Add to
024112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
026112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0279959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0289893-0616-16SCREW M6 x 16£2.47 Add to
030112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0319959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0321137-0893-01TOWING PLATE£18.61 Add to
033112390007/0ROUND THREAD INSERT£1.58 Add to
