Wheels

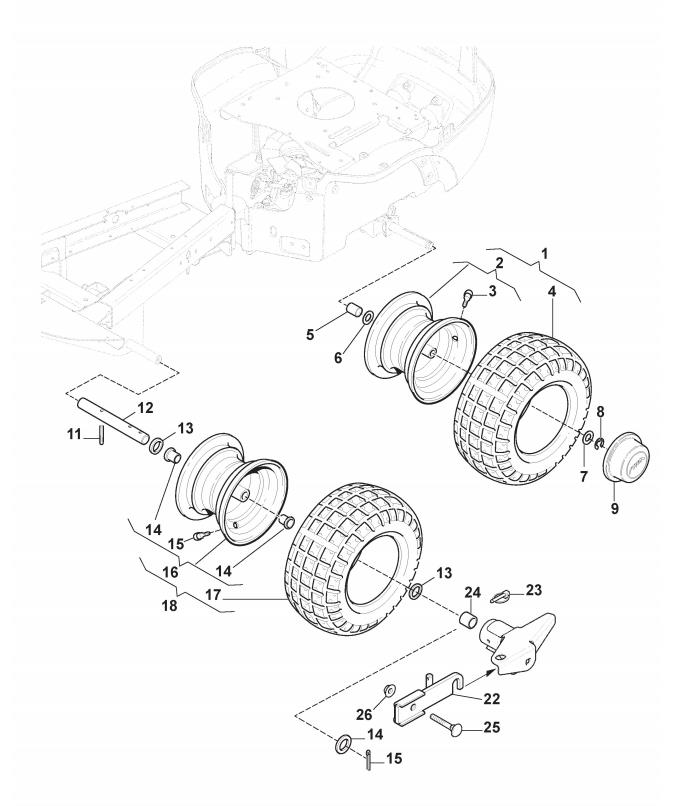

Wheels assembly details for Stiga PARK 120 2017 (2F5820241/S16) 2017 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	387680301/0	REAR WHEEL ASSEMBLY 14"	£162.60	Add to
002	187000451/1	REAR WHEEL RIM 4.375 x 8	£76.59	Add to
003	125950000/0	PNEUMATIC VALVE	£5.73	Add to
004	137950010/0	TYRE 160/50-8 TURF GRIP	£76.59	Add to
005	1134-4845-02	HUB SLEEVE	£9.00	Add to
006	1134-0341-01	WASHER	£7.10	Add to
007	1134-4981-01	WASHER	£3.41	Add to
008	9653-0001-04	CIRCLIP 3/4"	£2.61	Add to
009	1137-1006-01	HUB CAP	£7.36	Add to
011	112645710/0	ROLL PIN D=6 x 32	£2.47	Add to
012	1134-0075-00	FRONT AXLE	£19.09	Add to
013	1134-0341-01	WASHER	£7.10	Add to
014	137038001/0	15" FRONT WHEEL BUSH	£7.27	Add to
014A	9699-0042-02	WASHER 20 x 36 x 3	£2.47	Add to
015	125950000/0	PNEUMATIC VALVE	£5.73	Add to
015A	9599-0080-02	COTTER PIN	£2.47	Add to
016	187000450/1	FRONT WHEEL RIM 4.375 x 8	£68.42	Add to
017	137950010/0	TYRE 160/50-8 TURF GRIP	£76.59	Add to
018	387680303/0	WHEEL ASSEMBLY 14"	£155.53	Add to
021	13-0992-62	RAC QUICK CONNECTION 2WD PARK	£135.85	Add to
022	1134-7465-01	ATTACHMENT HOOK PLATES [LH & RH]	£53.42	Add to
023	1137-0077-01	LOCKING PIN	£3.81	Add to
024	9548-0026-01	BEARING 20E7x26-20	£32.99	Add to
025	9898-1035-16	SCREW 10 x 35	£3.15	Add to
026	9739-1031-22	NUT M10	£2.32	Add to
