Transmission Unit, Hydro-Gear T2-BDBF-3X3C-19X1

Transmission Unit, Hydro-Gear T2-BDBF-3X3C-19X1 assembly details for Stiga PARK 120 2017 (2F5820241/S16) 2017 model

Parts list

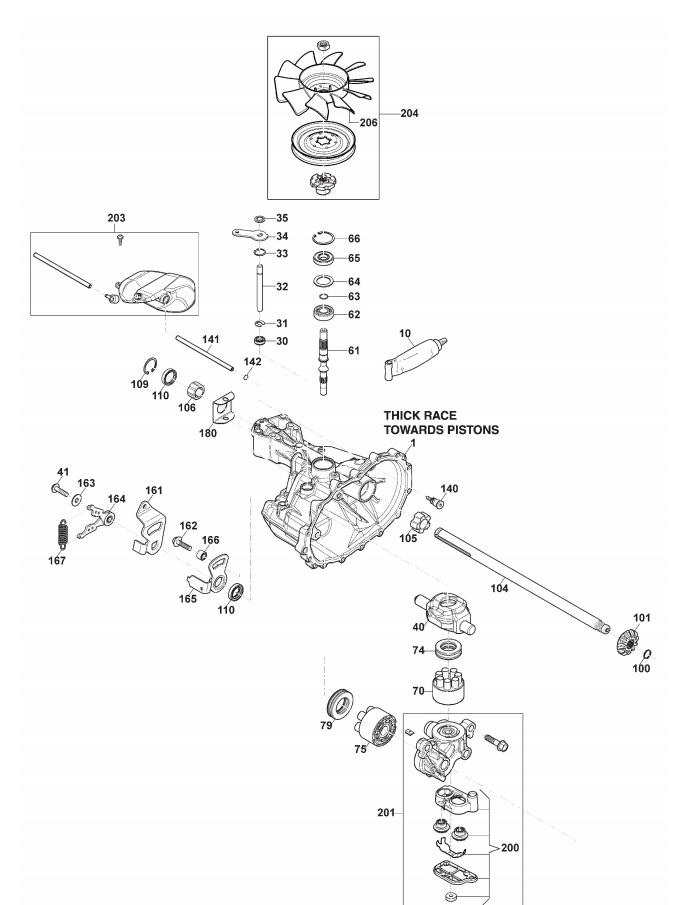

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
030118870079/0SEAL 0.375 X 0.75 X 0.25£10.09 Add to
061118870092/0INPUT DRIVE SHAFT£91.58 Add to
070118870125/0PUMP BLOCK ASSEMBLY£132.33 Add to
0791139-2021-01THRUST BEARING£43.89 Add to
100118870072/0RETAINING RING£6.27 Add to
104118870115/0AXLE SHAFT 0.75 x 16.48 (L/H KEY)£128.77 Add to
106118870085/0AXLE BUSH£8.44 Add to
1101139-2204-01SEAL£8.87 Add to
163112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
166118870104/0BUSH 0.315 x 0.618 x 0.390£5.46 Add to
167118870089/0EXTENSION SPRING£9.54 Add to
201118870127/0CENTER SECTION KIT£367.61 Add to
203118870122/0EXPANSION TANK KIT£65.69 Add to
204118870061/0HYDRO FAN KIT£140.35 Add to
206118870132/0HYDRO GEAR FAN [T2-BDBF-3X3C-19X1]£47.97 Add to
