Frame

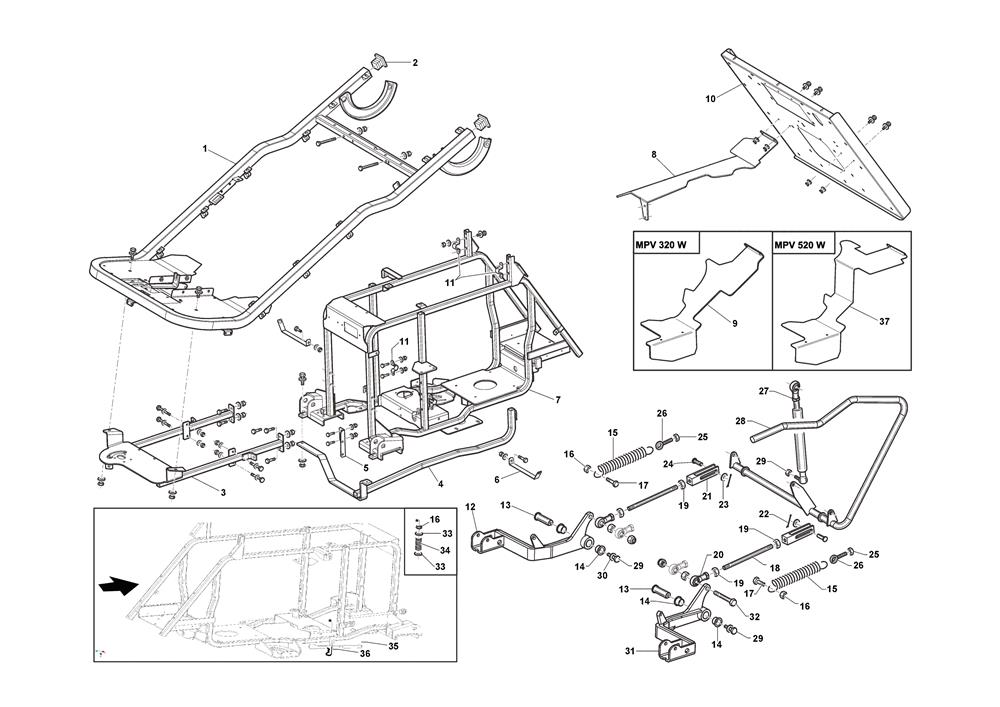

Frame assembly details for Stiga MPV 320 W (2F2020521/S17) 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118830719/0EXTERNAL FRAME [GREY]£409.09 Add to
006118830434/0CLAMP£5.29 Add to
010118830682/0REAR COVER PLATE£156.99 Add to
012118830466/0R/H FULCRUM LEVER£131.12 Add to
016112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
017112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
018118830439/0TIE ROD£10.56 Add to
019112171502/0NUT M12£3.64 Add to
023112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
025112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
027118830368/0DAMPER£34.02 Add to
029112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
030112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
033112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
