Transmission (2)

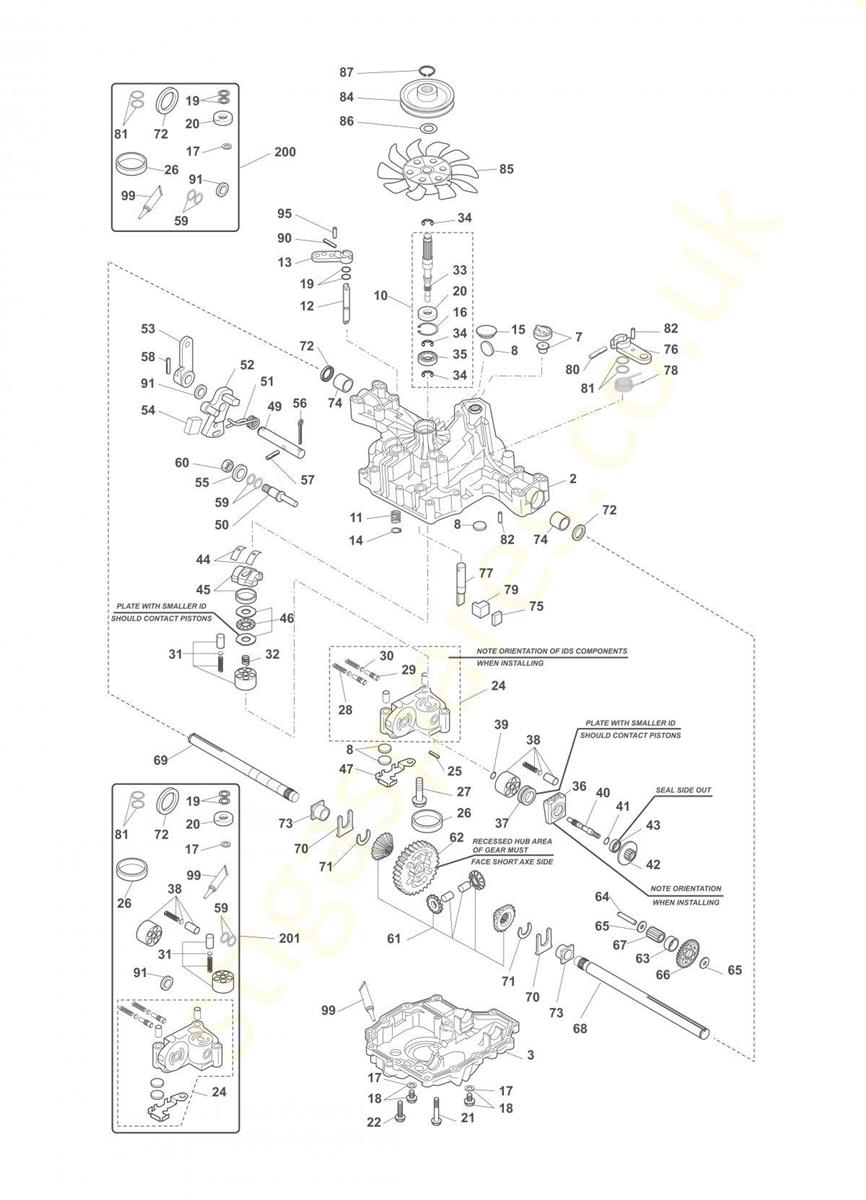

Transmission (2) assembly details for Mountfield stiga-villa-silent-2f2720231 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 1134-7766-01 TRANSAXLE K46 CJ £761.81 Add to
002 1139-1485-01 UPPER CASE KIT £179.77 Add to
003 1139-1402-01 LOWER CASE £112.87 Add to
007 1139-1595-01 VENT VALVE CAP £11.90 Add to
008 1139-1150-01 MAGNET £7.42 Add to
010 1139-1499-01 PUMP SHAFT KIT £77.59 Add to
011 1139-1347-01 SPRING £4.87 Add to
012 1139-1324-01 SHAFT BY-PASS £38.51 Add to
013 1139-1189-01 BY-PASS LEVER £11.60 Add to
014 1139-1161-01 RING £3.60 Add to
015 1139-1735-01 SEALING CAP £5.99 Add to
016 1139-1104-01 CIRCLIP £4.87 Add to
017 1139-1103-01 SEAL WASHER £5.24 Add to
018 1139-1500-01 DRAIN BOLT KIT £3.60 Add to
019 1139-1117-01 O-ring £3.89 Add to
020 1139-1119-01 SEAL 15*35*7 £12.11 Add to
021 1139-1295-01 SCREW £6.88 Add to
022 1139-0244-01 TAPPING SCREW £5.56 Add to
024 1139-1599-01 CENTRE CASE £143.75 Add to
025 1139-1158-01 PIN £3.60 Add to
026 1139-1405-01 FILTER (105 µ) £26.69 Add to
027 1139-1718-01 BOLT (1139-1294-01) £3.89 Add to
028 1139-1468-01 IDS VALVE £10.60 Add to
029 1139-1243-01 SPRING £5.30 Add to
030 1139-1307-01 FILTER £7.63 Add to
031 1139-1601-01 CYLINDER BLOCK KIT (PUMP) £100.38 Add to
032 1139-1245-01 PUMP SPRING £5.30 Add to
033 1139-1406-01 PUMP SHAFT £49.85 Add to
034 1139-1146-01 Ring N/A POA
035 1139-1110-01 BEARING £20.74 Add to
036 1139-1157-01 HOUSING £22.52 Add to
037 1139-1501-01 BEARING £56.53 Add to
038 1139-1717-01 CYLINDER BLOCK (MOTOR) £139.74 Add to
039 1139-1160-01 WASHER £3.60 Add to
040 1139-1353-01 MOTOR SHAFT £49.42 Add to
041 1139-1021-01 CIRCLIP £5.56 Add to
042 1139-1272-01 MOTOR GEAR £26.69 Add to
043 1139-1453-01 BEARING £8.88 Add to
044 1139-1066-01 Metal thrust (OBSOLETE) (OBSOLETE) N/A
045 1139-1597-01 SWASH PLATE £14.18 Add to
046 1139-1508-01 THRUST BEARING KIT £58.22 Add to
047 1139-1598-01 MAGNET HOLDER £5.30 Add to
049 1139-1354-01 CONTROL SHAFT £33.05 Add to
050 1139-1410-01 FULCRUM £32.88 Add to
051 1139-1312-01 Torsion Spring N/A POA
052 1139-1409-01 CONTROL ARM £53.18 Add to
053 1139-1325-01 CONTROL LEVER £29.87 Add to
054 1139-1596-01 JERKY PLATE £4.73 Add to
055 1139-1102-01 WASHER £3.60 Add to
056 1139-1329-01 COTTER PIN £3.60 Add to
057 1139-1329-01 PIN £3.60 Add to
058 1139-1285-01 PIN £3.60 Add to
059 1139-1115-01 O-ring £3.89 Add to
060 1139-1127-01 NUT £3.60 Add to
061 1139-1404-01 DIFFERENTIAL GEAR KIT £59.88 Add to
062 1139-1258-01 FINAL GEAR £106.84 Add to
063 1139-1255-01 COLLAR £6.06 Add to
064 1139-1256-01 REDUCTION SHAFT £15.44 Add to
065 1139-1398-01 WASHER £3.60 Add to
066 1139-1267-01 REDUCTION GEAR £26.77 Add to
067 1139-1361-01 FINAL PINION GEAR £23.02 Add to
068 1139-1342-01 AXLE SHAFT LH £105.66 Add to
069 1139-1343-01 AXLE SHAFT RH £110.20 Add to
070 1139-1078-01 THRUST WASHER £19.90 Add to
071 1139-1163-01 RING £3.60 Add to
072 1139-1080-01 SEAL 19*32*8 £19.49 Add to
073 1139-1164-01 BUSH £5.14 Add to
074 1139-1414-01 BUSH £7.93 Add to
075 1139-1260-01 BRAKE SHOE £5.30 Add to
076 1139-1261-01 BRAKE ARM £10.44 Add to
077 1139-1320-01 BRAKE SHAFT £51.49 Add to
078 1139-1411-01 RETURN SPRING £12.11 Add to
079 1139-1264-01 BRAKE ACTUATOR £6.27 Add to
080 1139-1282-01 PIN £3.60 Add to
081 1139-1114-01 O RING £3.60 Add to
082 1139-1281-01 PIN £3.60 Add to
084 1139-1484-01 BELT PULLEY £23.02 Add to
085 1134-4190-01 FAN £33.90 Add to
086 1139-1266-01 LOCK WASHER £3.60 Add to
087 1139-1149-01 CIRCLIP £3.89 Add to
090 1139-1280-01 PIN £3.60 Add to
091 1139-1303-01 SEAL RING £7.10 Add to
095 1139-1279-01 PIN £3.60 Add to
099 1139-1443-01 SEALANT (TUBE) £21.31 Add to
200 1139-1403-01 SEAL KIT £79.99 Add to
201 1139-1600-01 REPAIR KIT £294.64 Add to
