Transmission (1)

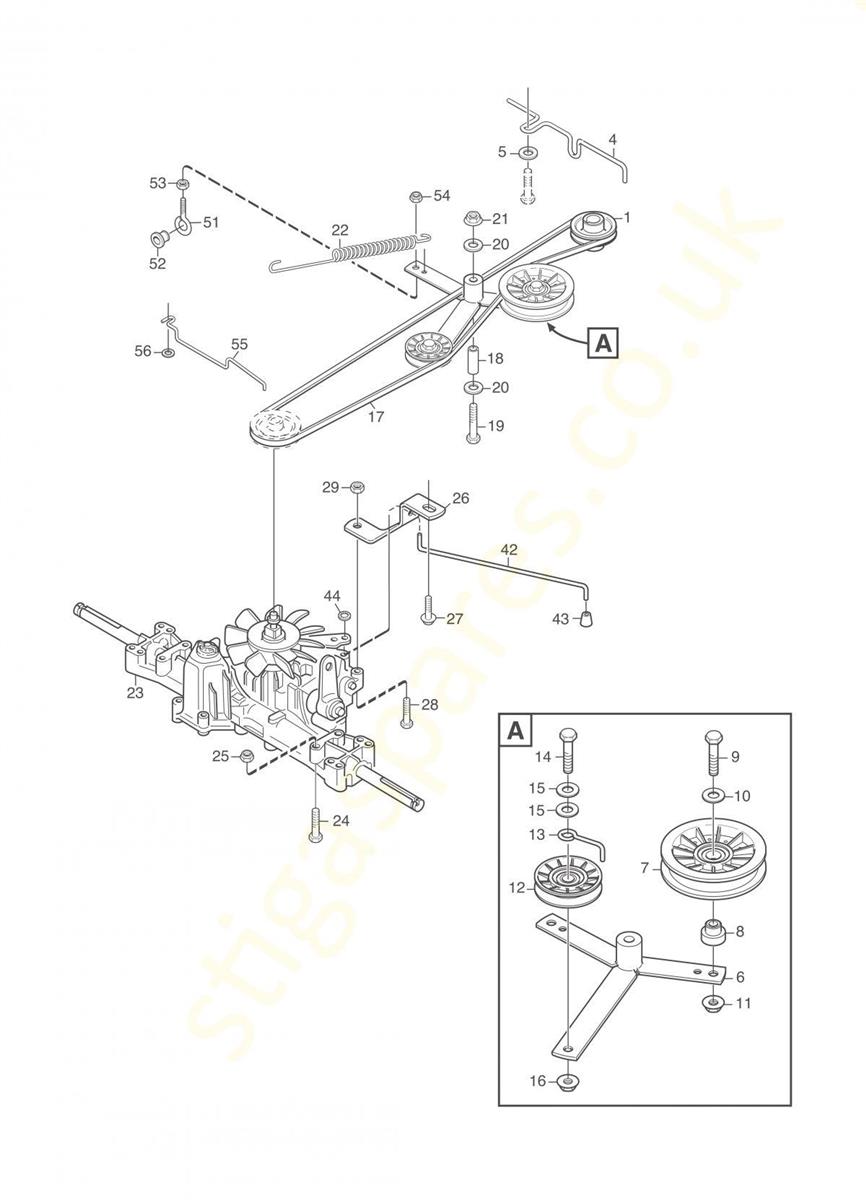

Transmission (1) assembly details for Mountfield stiga-villa-silent-2f2720231 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 1137-0205-01 ENGINE PULLEY £19.55 Add to
004 1134-6637-01 Belt guide £9.31 Add to
005 112523060/0 WASHER M8 8.4 X 24 X 2 £3.60 Add to
006 1134-4519-01 TENSION ARM £37.73 Add to
007 1134-9091-01 Tension Roller £43.27 Add to
008 1134-4614-01 Shoulder spacer £10.15 Add to
009 9997-1040-16 SCREW M6S 10 X 40 L=40MM £5.41 Add to
010 112521360/0 WASHER M10 10.5 X 20 X 2 £3.60 Add to
011 9739-1031-22 NUT M10 £3.60 Add to
012 1134-2989-02 TENSION PULLEY [GREY] £28.30 Add to
013 1134-1795-01 BELT STIRRUP £13.31 Add to
014 9997-1040-16 SCREW M6S 10 X 40 L=40MM £5.41 Add to
015 112521360/0 WASHER M10 10.5 X 20 X 2 £3.60 Add to
016 9739-1031-22 NUT M10 £3.60 Add to
017 9585-0212-01 V-Belt = 9585-0099-01 N/A POA
018 1134-1565-08 SPACER £8.77 Add to
019 112793905/0 HEX-HEAD SCREW M8 X 70 GEOMET321A £3.60 Add to
020 112523060/0 WASHER M8 8.4 X 24 X 2 £3.60 Add to
021 112154220/0 SELF-LOCK FLANGED NUT M8 £3.60 Add to
022 1134-5214-01 SPRING £12.74 Add to
023 1134-7766-01 TRANSAXLE K46 CJ £761.81 Add to
024 9960-0860-12 SCREW M8 X 60 £3.60 Add to
025 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
026 1134-6290-01 Strut £9.28 Add to
027 9945-0816-16 SCREW M8 X 16 £3.60 Add to
028 112691115/0 HEX-HEAD SCREW M8 X 40 £3.60 Add to
029 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
042 1134-5156-01 PULL ROD £14.02 Add to
043 1134-4014-01 KNOB £6.31 Add to
044 112604896/0 STARLOCK WASHER D=6 £3.60 Add to
051 1134-2138-01 Eye bolt £10.15 Add to
052 1134-4779-01 Plastic bushing £6.31 Add to
053 112293200/0 HEXAGON NUT M8 £3.60 Add to
054 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
055 1134-5319-01 BELT GUIDE £19.98 Add to
056 112523060/0 WASHER M8 8.4 X 24 X 2 £3.60 Add to
All our prices include VAT
