Seat

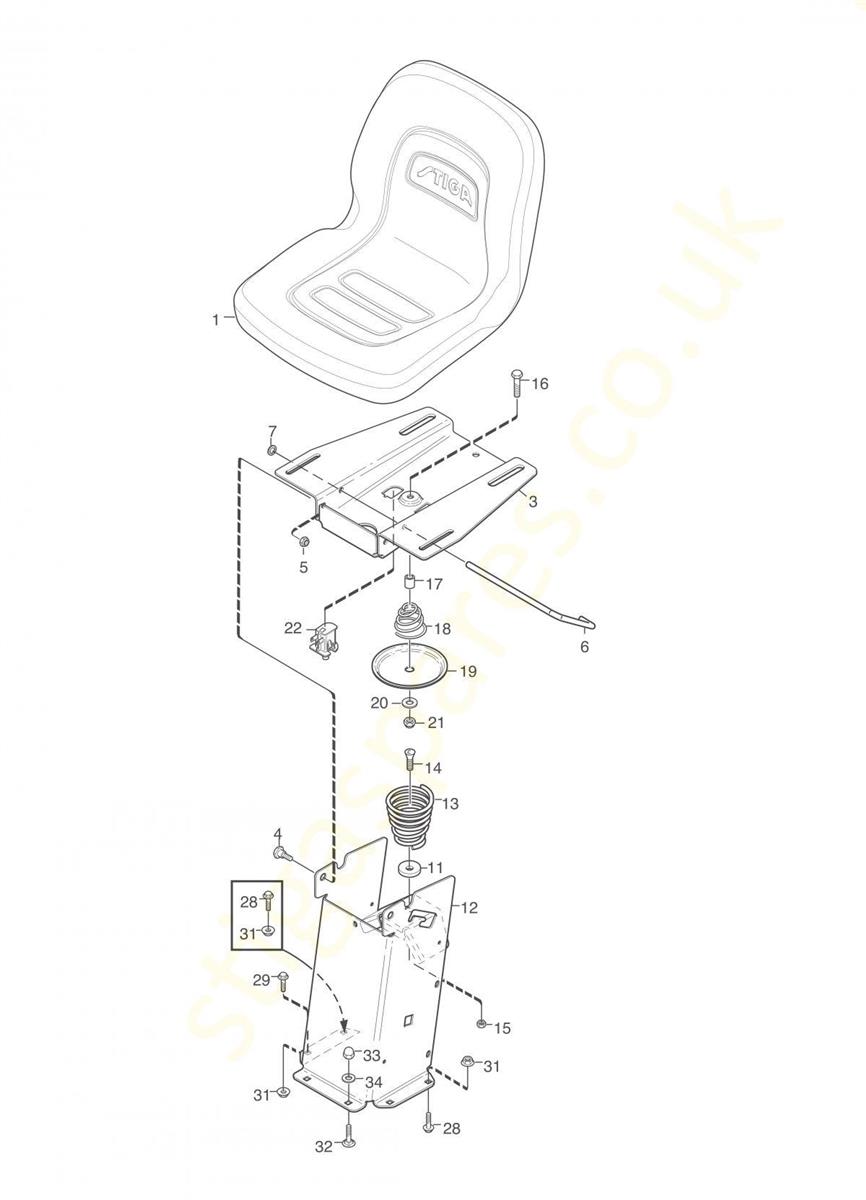

Seat assembly details for Stiga Stiga Villa SILENT 2F2720231 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 137722604/0 SEAT [PARK,VILLA,PCH] £203.95 Add to
003 1134-5301-01 UPPER SEAT BRACKET £98.88 Add to
004 1134-0240-00 SHOULDER SCREW £9.50 Add to
005 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
006 1134-5454-01 CATCH ROD £12.16 Add to
007 112604899/0 STARLOCK WASHER D=8 £3.60 Add to
011 137160001/0 SPACER WASHER £8.65 Add to
012 1134-5296-04 SEAT BRACKET [YELLOW] £128.05 Add to
013 1134-4256-01 SEAT SPRING £28.14 Add to
014 9924-1235-19 SCREW MF6S M12 X 35 £3.60 Add to
015 112156603/0 SELF-LOCKING NUT M12 £3.60 Add to
016 9997-0840-16 SCREW M6S M8 X 40 £3.60 Add to
017 1134-1565-06 SPACER £9.18 Add to
018 1134-5302-01 SPRING £9.25 Add to
019 1134-5299-01 PUSH PLATE £17.04 Add to
020 9699-0090-02 WASHER 8.4 X 18 X 1.5 £3.60 Add to
021 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
022 1134-3156-02 SEAT SWITCH [GREY] £46.72 Add to
028 9959-0820-16 SCREW M6SF M8 X 20 L=20MM £3.60 Add to
029 9959-0825-16 SCREW M6SF M8 X 25 TL L=25MM £3.60 Add to
031 1137-0155-01 SPACER £4.81 Add to
032 9897-0820-16 SCREW M8 X 20 L=20MM £3.60 Add to
033 9757-0821-02 NUT £3.60 Add to
034 9699-0090-02 WASHER 8.4 X 18 X 1.5 £3.60 Add to
