Power take-off

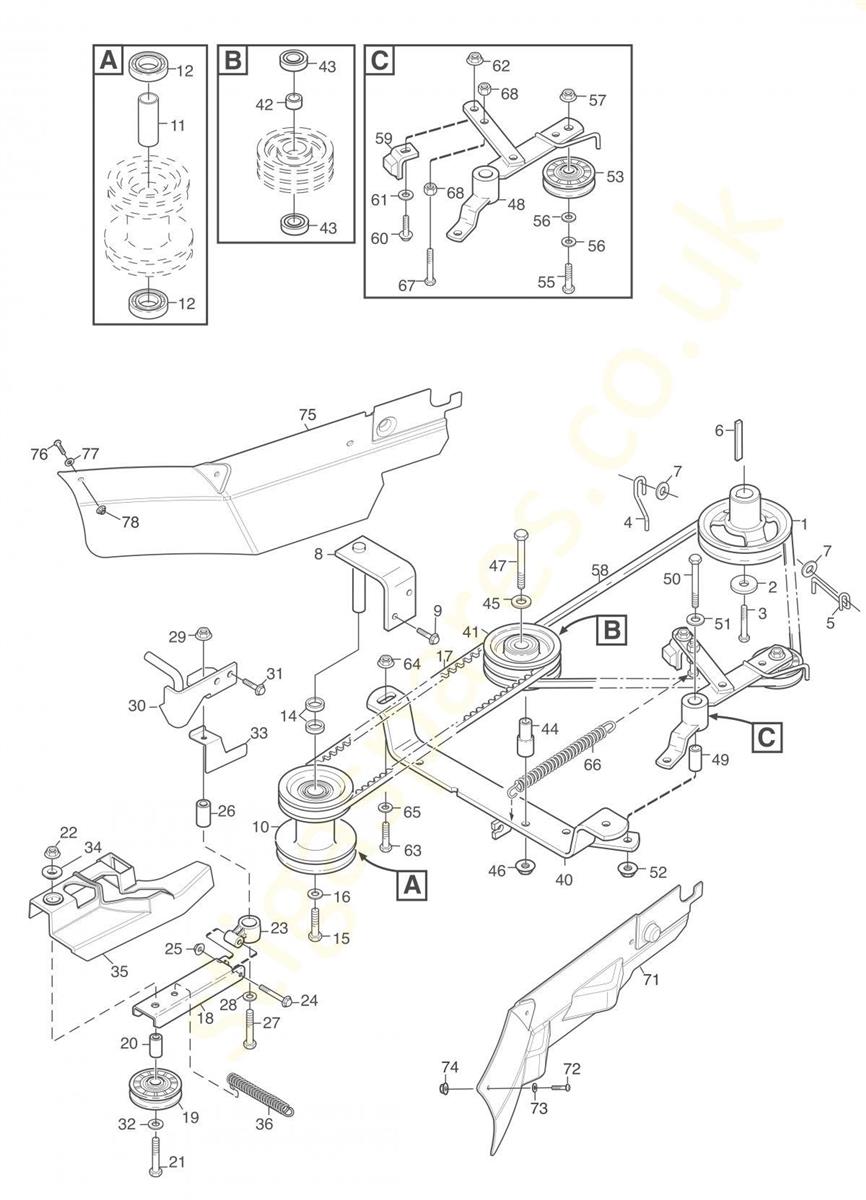

Power take-off assembly details for Mountfield stiga-villa-silent-2f2720231 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 1137-0081-01 ENGINE PULLEY £22.32 Add to
002 1134-5017-01 WASHER 40 X 11.5 X 4 £3.60 Add to
003 9987-5332-16 SCREW U6S 7/16" UNF X 32 £3.60 Add to
004 1134-5058-01 BELT GUIDE £21.64 Add to
005 1134-5057-01 BELT GUIDE £21.64 Add to
006 9600-0251-01 KEY L=2.5" £7.93 Add to
007 112523060/0 WASHER M8 8.4 X 24 X 2 £3.60 Add to
008 1134-4650-01 PULLEY BRACKET £37.73 Add to
009 9945-0816-16 SCREW M8 X 16 £3.60 Add to
010 1137-0003-01 INTERMEDIATE PULLEY £45.84 Add to
011 1134-0051-12 Spacer £8.71 Add to
012 120001215/0 BEARING 6203 2RS C3 £25.66 Add to
014 1134-0052-00 SPACER £10.12 Add to
015 9997-1040-16 SCREW M6S 10 X 40 L=40MM £5.41 Add to
016 112521360/0 WASHER M10 10.5 X 20 X 2 £3.60 Add to
017 1134-9079-01 DRIVE BELT £73.75 Add to
018 1134-5231-01 TENSION ARM £26.57 Add to
019 1134-2989-02 TENSION PULLEY [GREY] £28.30 Add to
020 1134-4619-01 Spacer £9.82 Add to
021 9997-1070-12 SCREW M6S M10 X 70 £3.60 Add to
022 112156602/0 LOW SELF-LOCKING NUT M10 £3.60 Add to
023 1134-6314-01 TENSION ARM ATTACHMENT £20.70 Add to
024 112689500/0 SCREW M6 X 40 £3.60 Add to
025 112154510/0 LOW SELF-LOCKING NUT M6 £3.60 Add to
026 1134-4619-01 Spacer £9.82 Add to
027 9930-1050-12 SCREW £3.60 Add to
028 112521360/0 WASHER M10 10.5 X 20 X 2 £3.60 Add to
029 112156602/0 LOW SELF-LOCKING NUT M10 £3.60 Add to
030 1137-1101-01 FULCRUM BRACKET £29.71 Add to
031 9945-0816-16 SCREW M8 X 16 £3.60 Add to
032 112521360/0 WASHER M10 10.5 X 20 X 2 £3.60 Add to
033 337546579/0 Plate £9.14 Add to
034 137038000/0 BUSH £4.02 Add to
035 337600007/0 BELT GUARD [BLACK] £5.42 Add to
036 1131-1507-00 SPRING £21.71 Add to
040 1134-5037-01 BRACKET £75.34 Add to
041 1137-0209-01 CENTRE PULLEY ASSEMBLY £62.35 Add to
042 1134-0051-09 SPACER £12.73 Add to
043 120001215/0 BEARING 6203 2RS C3 £25.66 Add to
044 1134-1839-02 SHAFT £19.20 Add to
045 112521360/0 WASHER M10 10.5 X 20 X 2 £3.60 Add to
046 9739-1031-22 NUT M10 £3.60 Add to
047 9997-1070-12 SCREW M6S M10 X 70 £3.60 Add to
048 1137-0144-01 TENSION ARM £21.07 Add to
049 1134-1565-10 SPACER £8.75 Add to
050 112691800/0 SCREW M8 X 60 £3.60 Add to
051 112523060/0 WASHER M8 8.4 X 24 X 2 £3.60 Add to
052 1137-0155-01 SPACER £4.74 Add to
053 1134-2989-02 TENSION PULLEY [GREY] £28.30 Add to
055 112794400/0 Screw £3.89 Add to
056 112521360/0 WASHER M10 10.5 X 20 X 2 £3.60 Add to
057 9739-1031-22 NUT M10 £3.60 Add to
058 1134-9146-01 PTO DRIVE BELT £37.13 Add to
059 1134-4164-03 BRAKE PAD £28.13 Add to
060 9959-0820-16 SCREW M6SF M8 X 20 L=20MM £3.60 Add to
061 9699-0090-02 WASHER 8.4 X 18 X 1.5 £3.60 Add to
062 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
063 9959-0820-16 SCREW M6SF M8 X 20 L=20MM £3.60 Add to
064 1137-0155-01 SPACER £4.74 Add to
065 112523060/0 WASHER M8 8.4 X 24 X 2 £3.60 Add to
066 1131-1506-00 SPRING £16.32 Add to
067 112691800/0 SCREW M8 X 60 £3.60 Add to
068 1137-0155-01 SPACER £4.74 Add to
071 337600009/0 Sidoskydd - Vä Side Protection - Lh £10.56 Add to
072 9893-0616-16 SCREW M6 X 16 £3.60 Add to
073 112523040/0 WASHER M6 6.6 X 18 X 1.6 £3.60 Add to
074 112292102/0 HEXAGON NUT M6 £3.60 Add to
075 337600008/0 Sidoskydd - Hö Side Protection - Rh £10.56 Add to
076 9893-0616-16 SCREW M6 X 16 £3.60 Add to
077 112523040/0 WASHER M6 6.6 X 18 X 1.6 £3.60 Add to
078 112292102/0 HEXAGON NUT M6 £3.60 Add to
