Pedal lift

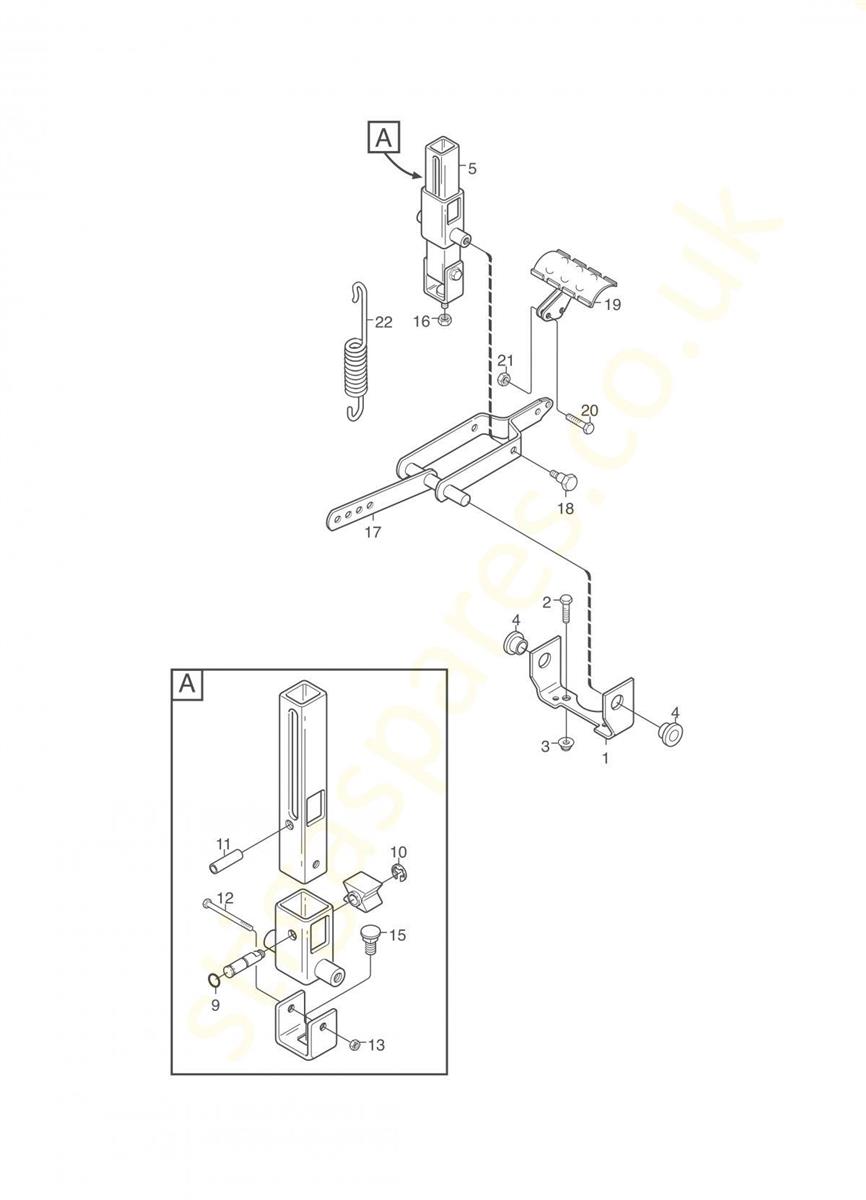

Pedal lift assembly details for Stiga Stiga Villa SILENT 2F2720231 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 1134-4117-01 BRACKET £28.61 Add to
002 9959-1025-16 SCREW M6SF M10 X 25 TL £3.60 Add to
003 9739-1031-22 NUT M10 £3.60 Add to
004 1134-2684-01 BUSH £8.31 Add to
005 1134-4945-01 LIFT CATCH ASSEMBLY £119.05 Add to
009 9404-0027-01 O RING 4.48 X 1.78 £3.60 Add to
010 9650-0039-04 CIRCLIP (8MM) £3.60 Add to
011 9595-0276-01 LOCATING PIN £3.60 Add to
012 112689500/0 SCREW M6 X 40 £3.60 Add to
013 112154510/0 LOW SELF-LOCKING NUT M6 £3.60 Add to
015 9897-0820-16 SCREW M8 X 20 L=20MM £3.60 Add to
016 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
017 387256053/0 LIFT LEVER ASSEMBLY £54.56 Add to
018 1134-0240-00 SHOULDER SCREW £9.50 Add to
019 1134-4938-01 LIFT PEDAL £26.00 Add to
020 112791500/0 SCREW M6 X 25 £3.60 Add to
021 112292102/0 HEXAGON NUT M6 £3.60 Add to
022 4231-0013-00 SPRING £12.48 Add to
