Foot controls

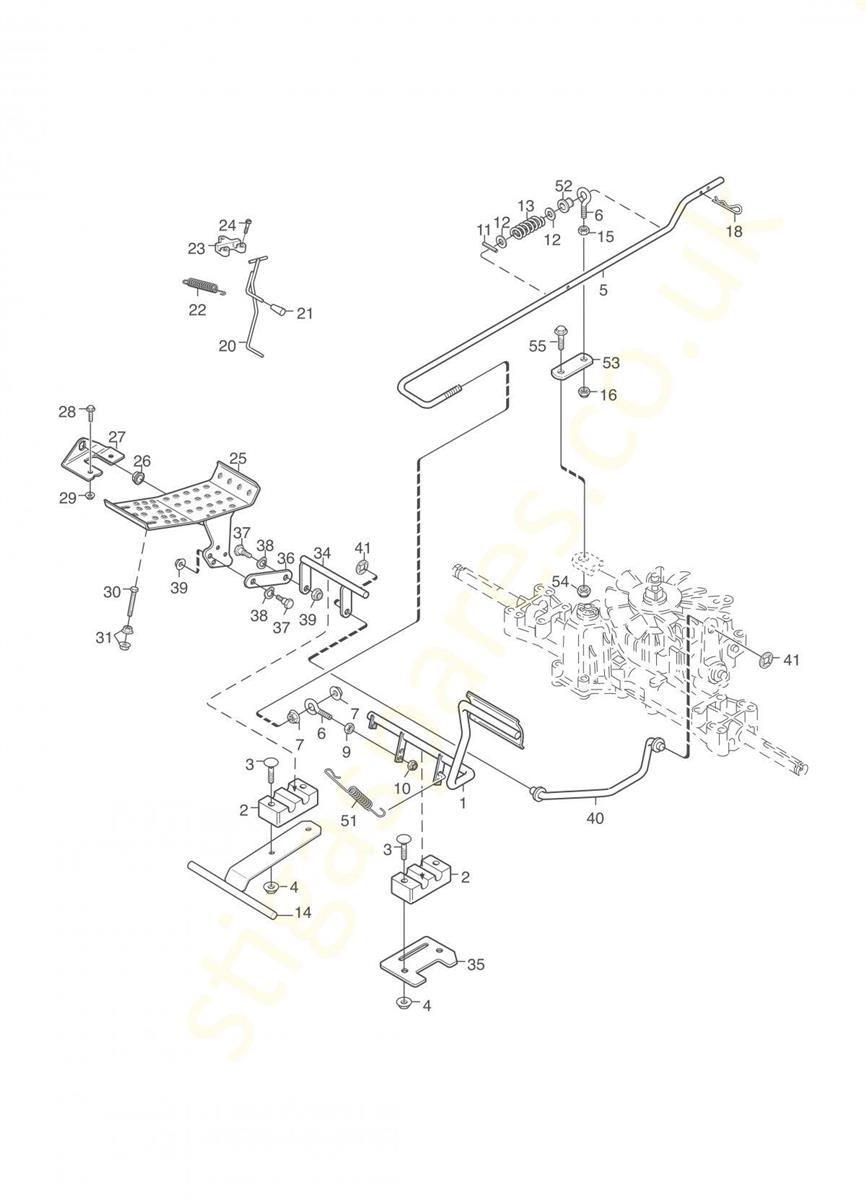

Foot controls assembly details for Stiga Stiga Villa SILENT 2F2720231 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 1134-4802-01 PEDAL £60.32 Add to
002 1134-4624-01 BEARING £11.16 Add to
003 9897-0640-12 SCREW M6 x 40 £3.89 Add to
004 112292102/0 HEXAGON NUT M6 £3.60 Add to
005 1134-4949-01 CLUTCH ROD £38.76 Add to
006 1134-2138-01 EYE BOLT £10.15 Add to
007 9739-1031-22 NUT M10 £3.60 Add to
009 112293200/0 HEXAGON NUT M8 £3.60 Add to
010 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
011 9595-0208-00 LOCATING PIN £3.89 Add to
012 112521360/0 WASHER M10 10.5 X 20 X 2 £3.60 Add to
013 1134-4617-01 SPRING £6.31 Add to
014 387773501/0 BRACKET £16.29 Add to
015 1137-0155-01 SPACER £4.81 Add to
016 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
018 9598-0002-02 SPRING PIN 2.5mm L=47mm £3.60 Add to
020 1134-5353-01 BRAKE ROD £17.28 Add to
021 1134-2786-01 PLASTIC KNOB £6.73 Add to
022 1131-1497-01 BRAKE SPRING £11.96 Add to
023 1134-4002-01 BRAKE ROD ATTACHMENT £13.93 Add to
024 112728697/0 SELF-TAP SCREW PT TORX K50 X 16 £3.60 Add to
025 1134-6353-01 IMPLEMENT PEDAL £39.67 Add to
026 1134-6313-01 BEARING £9.04 Add to
027 1134-2700-01 BRACKET £17.28 Add to
028 9959-0820-16 SCREW M6SF M8 X 20 L=20MM £3.60 Add to
029 1137-0155-01 SPACER £4.81 Add to
030 112793900/0 HEX-HEAD SCREW M8 X 60 £3.60 Add to
031 1137-0155-01 SPACER £4.81 Add to
034 1134-4440-01 SHAFT £33.72 Add to
035 1134-4793-01 BRACKET £19.45 Add to
036 1134-4441-01 LINK £13.57 Add to
037 1134-0240-00 SHOULDER SCREW £9.50 Add to
038 122675110/0 WASHER D=13.5 X 20.5 X 0.5 £3.60 Add to
039 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
040 1134-5288-01 CONTROL ROD £31.99 Add to
041 112604899/0 STARLOCK WASHER D=8 £3.60 Add to
051 4231-0013-00 SPRING £12.48 Add to
052 1134-4779-01 PLASTIC BUSHING £6.31 Add to
053 1134-4972-01 BRACKET £16.19 Add to
054 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
055 112793102/0 HEX-HEAD SCREW TE M8 X 20 £3.60 Add to
