Wheels

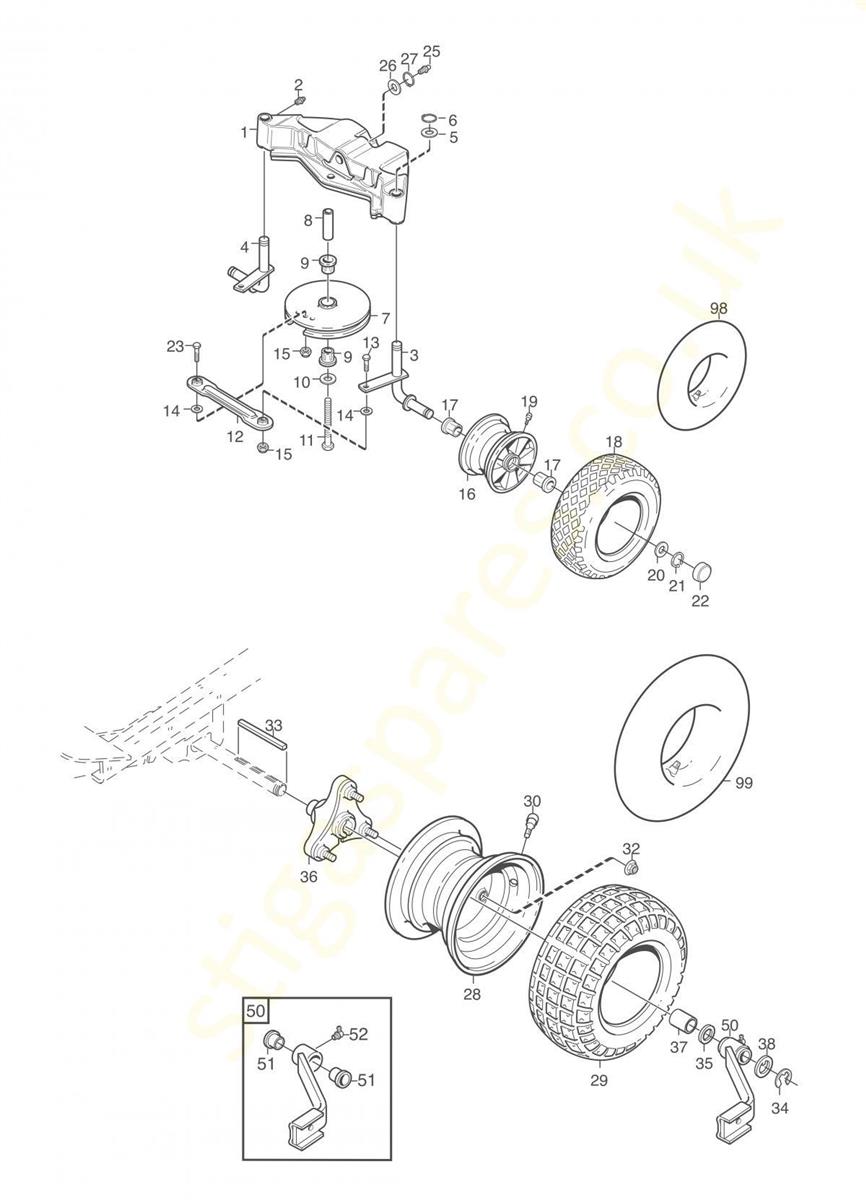

Wheels assembly details for Mountfield stiga-villa-14-hst-2f2720421 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 1134-6703-01 REAR AXLE £212.48 Add to
002 112379511/0 STRAIGHT GREASE NIPPLE M6 X 1 4A £3.60 Add to
003 1134-5009-02 LEFT STUB AXLE £62.40 Add to
004 1134-5009-01 RIGHT STUB AXLE £62.40 Add to
005 9699-0088-02 Flat washer £3.89 Add to
006 112609260/0 CIRCLIP D=20 £3.89 Add to
007 1137-0090-01 STEERING PULLEY £41.35 Add to
008 1134-5575-01 SPACER SLEEVE £14.84 Add to
009 1134-9024-01 PLASTIC BUSH (4 PCS) £20.34 Add to
010 112521390/0 WASHER M16 17 X 30 X 3 £3.60 Add to
011 112694100/0 Screw £3.89 Add to
012 1134-3247-05 TIE ROD £32.14 Add to
013 112793301/0 HEX-HEAD SCREW M8 X 25 (9997-0825-16) £3.60 Add to
014 9699-0090-02 WASHER 8.4 X 18 X 1.5 £3.60 Add to
015 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
016 187000452/0 REAR WHEEL RIM 3.5" x 6" £73.27 Add to
017 1134-9026-01 BEARING BUSH (4 PCS) £33.23 Add to
018 9545-0117-00 Tyre £129.03 Add to
019 9545-0500-00 Valve N/A POA
020 1134-0341-01 WASHER £8.32 Add to
021 112609260/0 CIRCLIP D=20 £3.89 Add to
022 1134-4344-01 Hub cap £9.93 Add to
023 112691100/0 HEX-HEAD SCREW M8 x 35 £3.89 Add to
025 112379511/0 STRAIGHT GREASE NIPPLE M6 X 1 4A £3.60 Add to
026 9699-0088-02 Flat washer £3.89 Add to
027 112609260/0 CIRCLIP D=20 £3.89 Add to
028 187000453/0 FRONT WHEEL RIM 4.375" x 8" £73.73 Add to
029 9545-0126-01 TYRE 16 X 6.00 X 8 £58.32 Add to
030 9545-0500-00 Valve N/A POA
032 9731-1031-22 LOCK NUT M6MF M10 £3.60 Add to
033 1134-2471-03 Key £10.16 Add to
034 9653-0001-04 CIRCLIP 3/4" £3.60 Add to
035 1134-0341-01 WASHER £8.32 Add to
036 1134-4844-02 WHEEL HUB ASSEMBLY £87.65 Add to
037 1134-4845-02 Hub sleeve £7.97 Add to
038 1134-4981-01 WASHER £3.60 Add to
050 1134-6274-01 ATTACHMENT ARM £34.82 Add to
051 1134-9026-01 BEARING BUSH (4 PCS) £33.23 Add to
052 9501-0502-00 GREASE JOINT £9.16 Add to
098 9545-0204-00 INNER TUBE 13 X 5.00-6/2 £40.78 Add to
099 9545-0203-00 INNER TUBE 16 X 6.50 £20.64 Add to
