Steering

Steering assembly details for Mountfield stiga-villa-14-hst-2f2720421 model

Parts list

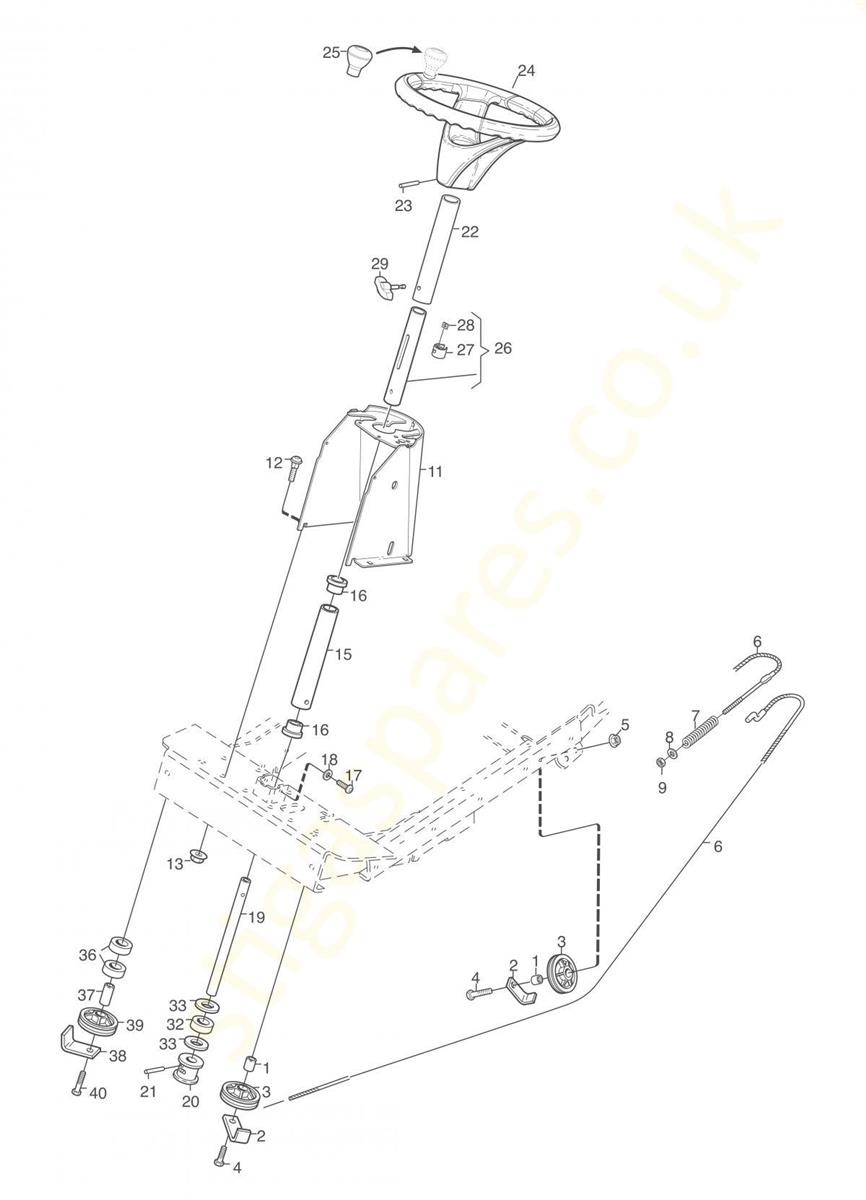

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 1134-0041-01 BUSH £7.27 Add to
002 1134-3022-01 BRACKET £15.86 Add to
003 1134-9025-01 STEERING PULLEY [2 PCS] KIT OF 2 £25.14 Add to
004 9997-1040-16 SCREW M6S 10 X 40 L=40MM £5.41 Add to
005 9739-1031-22 NUT M10 £3.60 Add to
006 1134-9154-01 STEERING CABLE £38.99 Add to
007 1134-1310-01 SPRING £14.45 Add to
008 112523060/0 WASHER M8 8.4 X 24 X 2 £3.60 Add to
009 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
011 387785245/0 STEERING CONSOLE [GREY] £88.08 Add to
012 9897-0820-16 SCREW M8 X 20 L=20MM £3.60 Add to
013 1137-0155-01 SPACER £4.74 Add to
015 387520125/0 LOWER STEERING COLUMN £30.40 Add to
016 1134-1901-01 PLASTIC BUSH £11.04 Add to
017 9893-0616-16 SCREW M6 X 16 £3.60 Add to
018 112523040/0 WASHER M6 6.6 X 18 X 1.6 £3.60 Add to
019 1134-5495-01 STEERING ROD £38.66 Add to
020 1134-1933-01 STEERING PULLEY £55.81 Add to
021 9595-0262-00 LOCATING PIN (0.5MM) £3.60 Add to
022 387520115/0 UPPER STEERING COLUMN £25.46 Add to
023 9595-0277-01 LOCATING PIN £3.60 Add to
024 1134-5494-01 STEERING WHEEL £45.94 Add to
025 1134-3769-01 STEERING WHEEL BUTTON KIT £33.20 Add to
026 387520123/0 INNER STEERING TUBE ASSEMBLY £46.45 Add to
027 1134-5177-01 SLIDE COLLAR VILLA 520 £12.46 Add to
028 9710-0631-12 SQUARE NUT VILLA 520 £3.60 Add to
029 337394201/0 WING NUT VILLA 520 £8.37 Add to
032 1134-3047-01 SPACER £10.16 Add to
033 112521390/0 WASHER M16 17 X 30 X 3 £3.60 Add to
036 1134-3047-01 SPACER £10.16 Add to
037 1134-0041-05 BUSH £12.92 Add to
038 1134-3022-01 BRACKET £15.86 Add to
039 1134-9025-01 STEERING PULLEY [2 PCS] KIT OF 2 £25.14 Add to
040 112692395/1 SCREW M10 X 60 L=60MM £3.60 Add to
