Hand controls

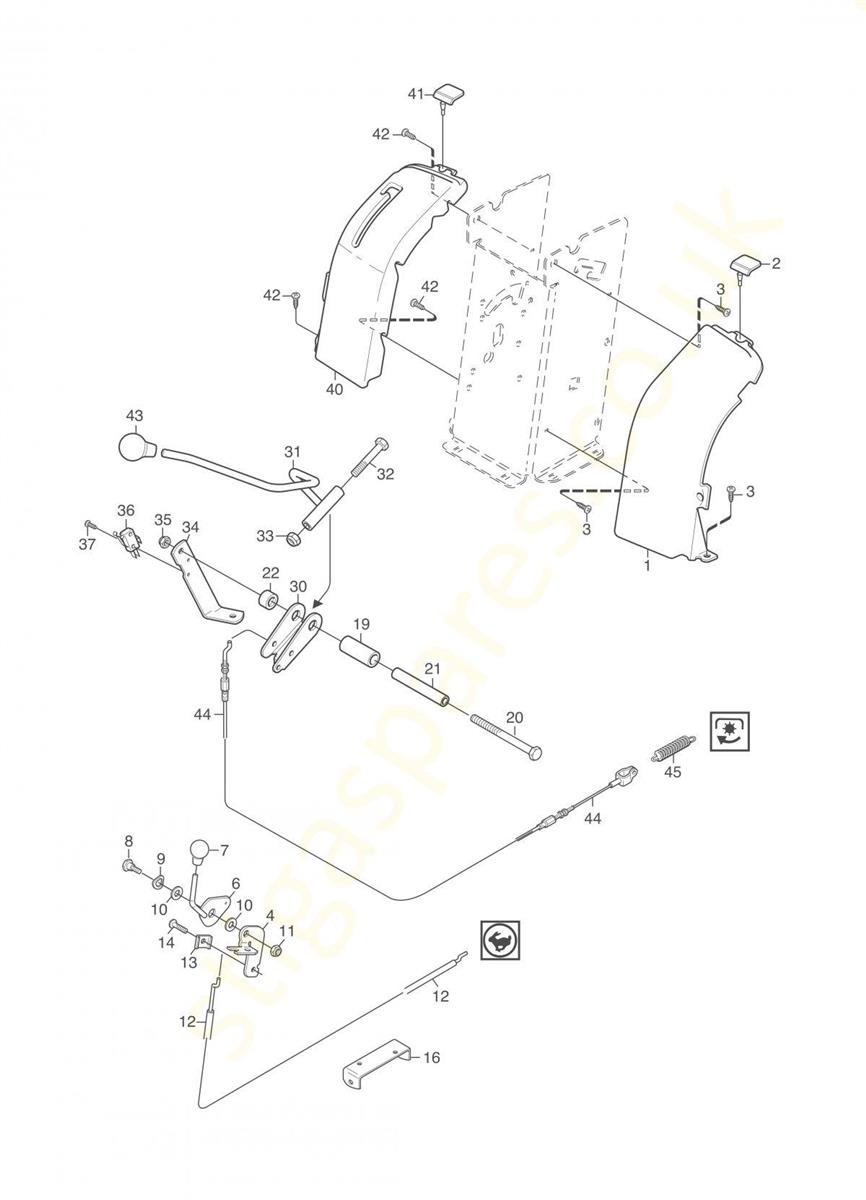

Hand controls assembly details for Stiga Stiga Villa 14 HST 2F2720421 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 337120152/0 LEFT DASHBOARD [GREY] £49.20 Add to
002 125260000/0 ANTI-VIBRATION RUBBER GROMMET £4.33 Add to
003 9893-0616-16 SCREW M6 X 16 £3.60 Add to
004 1134-5464-01 BRACKET £25.74 Add to
006 1134-5465-02 THROTTLE LEVER £11.90 Add to
007 1134-4078-01 KNOB £6.26 Add to
008 1134-0240-00 SHOULDER SCREW £9.50 Add to
009 122675110/0 WASHER D=13.5 X 20.5 X 0.5 £3.60 Add to
010 1134-4242-01 SPACER WASHER £3.60 Add to
011 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
012 1134-4197-03 THROTTLE CABLE £18.02 Add to
013 9500-9991-00 CABLE CLAMP £7.55 Add to
014 112735654/0 SELF-TAPPING SCREW M5 X 16 £3.60 Add to
016 1134-6370-01 WIRE GUIDE £8.93 Add to
019 1134-5508-01 CONTROL SLEEVE £17.65 Add to
020 9997-0812-02 SCREW £3.60 Add to
021 1134-5274-02 SPACER £17.65 Add to
022 1134-3047-01 SPACER £10.16 Add to
030 1134-5271-01 CONTROL BRACKET £33.73 Add to
031 1134-5276-01 CONTROL LEVER £41.35 Add to
032 112692080/0 HEX-HEAD SCREW M8 X 90 £3.89 Add to
033 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
034 1134-5356-01 STRUT £20.33 Add to
035 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
036 9400-0360-01 MICRO SWITCH £6.48 Add to
037 9840-7716-16 SCREW £3.60 Add to
040 337120151/0 RIGHT DASHBOARD [GREY] £49.20 Add to
041 125260000/0 ANTI-VIBRATION RUBBER GROMMET £4.33 Add to
042 9893-0616-16 SCREW M6 X 16 £3.60 Add to
043 1134-2551-01 GEAR KNOB £13.15 Add to
044 1134-3573-06 PTO CABLE £54.38 Add to
045 1134-1242-02 SPRING £11.99 Add to
