Electric system

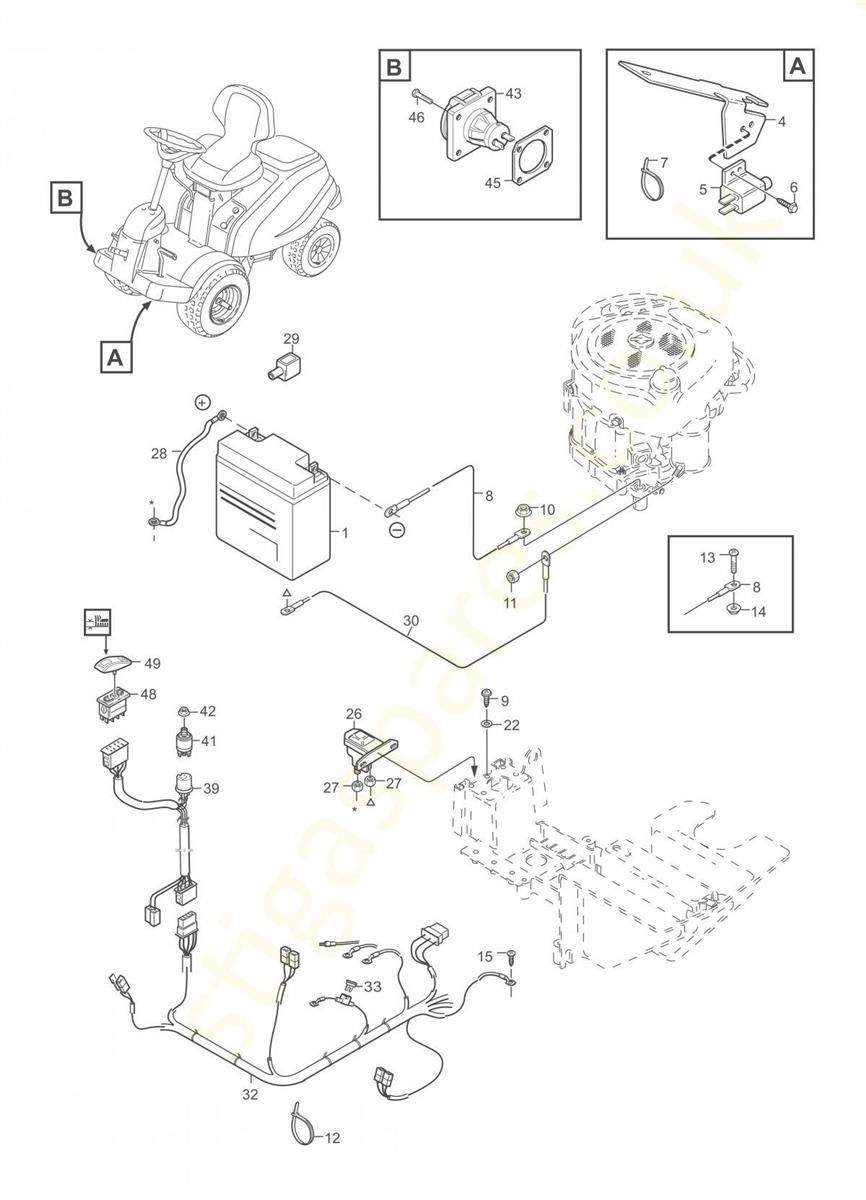

Electric system assembly details for Stiga Stiga Villa 14 HST 2F2720421 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 118120007/0 BATTERY 12V 18AH £103.68 Add to
004 1134-4610-01 BRACKET £21.67 Add to
005 1134-3399-02 SWITCH £45.35 Add to
006 9852-8013-16 SCREW £3.60 Add to
007 133320027/0 CABLE CLAMP £4.26 Add to
007 133320027/0 CABLE CLAMP £4.26 Add to
008 1134-2042-02 BATTERY CABLE L=350mm £26.82 Add to
009 112728697/0 SELF-TAP SCREW PT TORX K50 X 16 £3.60 Add to
010 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
011 112361005/0 HEXAGON NUT 1/4" UNC £3.60 Add to
022 112523040/0 WASHER M6 6.6 X 18 X 1.6 £3.60 Add to
027 9743-5121-32 LOCKING NUT 5/16" £3.60 Add to
028 1134-0234-02 BATTERY CABLE (+) L=395MM £16.49 Add to
029 1134-2310-01 GUARD CAP (+) £10.16 Add to
033 1134-3496-06 FUSE 20A YELLOW £6.26 Add to
