Assembly parts

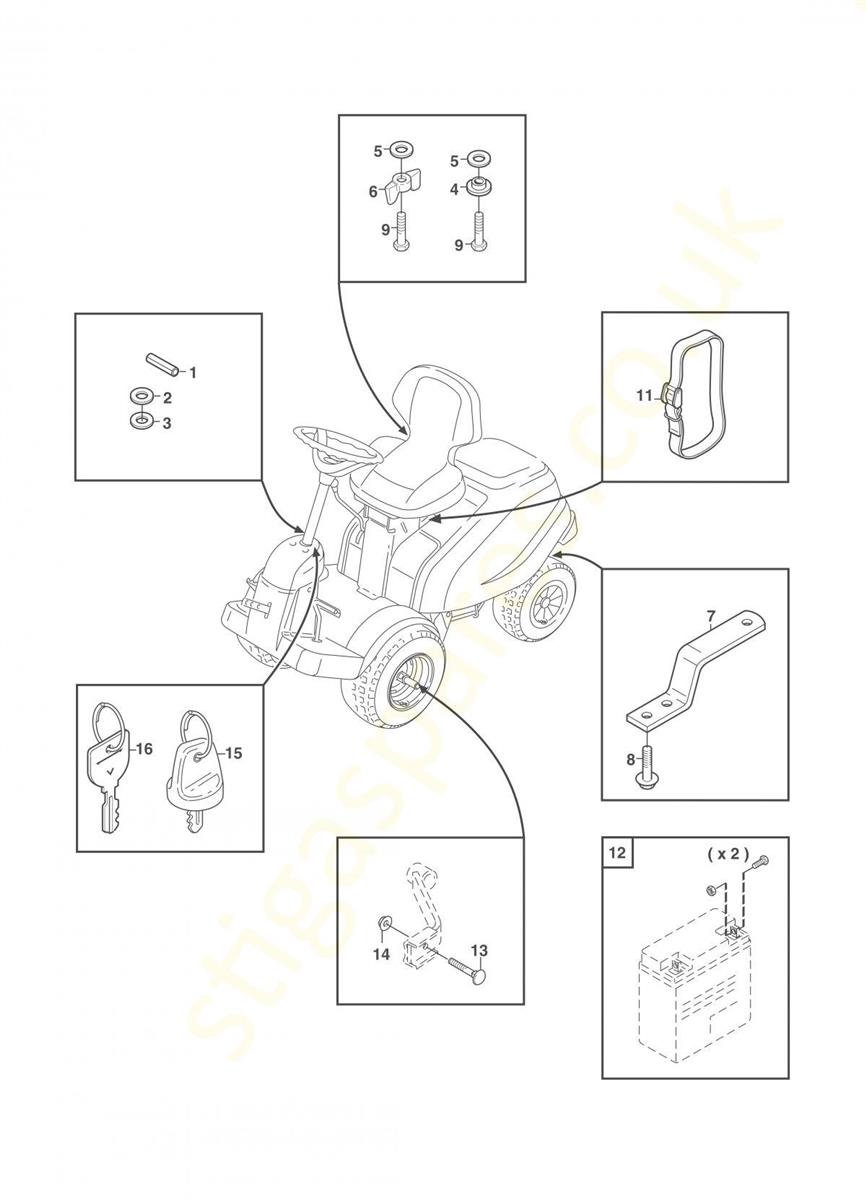

Assembly parts assembly details for Stiga Stiga Villa 14 HST 2F2720421 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 9595-0262-00 LOCATING PIN £3.60 Add to
002 9699-0103-02 WASHER (0.5MM) £3.60 Add to
003 9699-0114-02 WASHER 16 X 38 X 1 £3.89 Add to
004 1134-4185-01 FLANGE WASHER £6.40 Add to
005 112523060/0 WASHER M8 8.4 X 24 X 2 £3.60 Add to
006 1134-4481-01 WING NUT (M8) £3.89 Add to
007 1134-4627-01 TOWING STRAP £19.43 Add to
008 9959-0820-16 SCREW M6SF M8 X 20 L=20MM £3.60 Add to
009 112793102/0 HEX-HEAD SCREW TE M8 X 20 £3.60 Add to
011 1134-5245-01 BATTERY STRAP £22.87 Add to
012 1134-6113-01 BATTERY SCREW PACK £14.18 Add to
013 9898-1035-16 SCREW 10 X 35 £3.60 Add to
014 9739-1031-22 NUT M10 £3.60 Add to
015 1134-4734-01 IGNITION KEY £17.58 Add to
016 1134-4734-01 IGNITION KEY £17.58 Add to
