Transmission

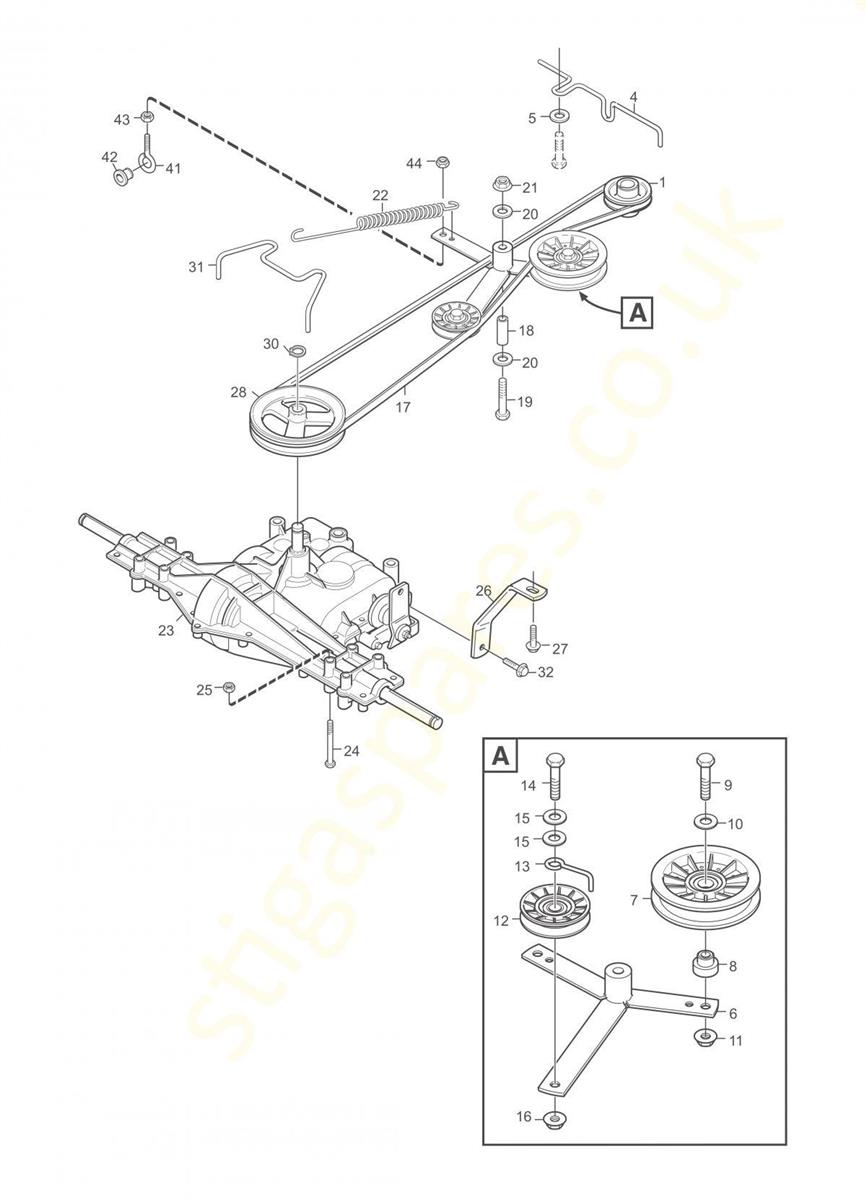

Transmission assembly details for Mountfield stiga-villa-12-2f2700141 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 1137-0205-01 ENGINE PULLEY £19.55 Add to
004 1134-6637-01 Belt guide £9.31 Add to
005 112523060/0 WASHER M8 8.4 X 24 X 2 £3.60 Add to
006 1134-4519-01 TENSION ARM £37.73 Add to
007 1134-9091-01 Tension Roller £43.27 Add to
008 1134-4614-01 Shoulder spacer £10.15 Add to
009 9997-1040-16 SCREW M6S 10 X 40 L=40MM £5.41 Add to
010 112521360/0 WASHER M10 10.5 X 20 X 2 £3.60 Add to
011 9739-1031-22 NUT M10 £3.60 Add to
012 1134-2989-02 TENSION PULLEY [GREY] £28.30 Add to
013 1134-1795-01 BELT STIRRUP £13.31 Add to
014 9997-1040-16 SCREW M6S 10 X 40 L=40MM £5.41 Add to
015 112521360/0 WASHER M10 10.5 X 20 X 2 £3.60 Add to
016 9739-1031-22 NUT M10 £3.60 Add to
017 1134-9164-01 TRANSMISSION BELT £51.44 Add to
018 1134-1565-08 SPACER £8.77 Add to
019 112793905/0 HEX-HEAD SCREW M8 X 70 GEOMET321A £3.60 Add to
020 112523060/0 WASHER M8 8.4 X 24 X 2 £3.60 Add to
021 112154220/0 SELF-LOCK FLANGED NUT M8 £3.60 Add to
022 1134-5214-01 SPRING £12.74 Add to
023 1134-4847-01 Transaxel (Mst205) Transaxle (Mst205) £822.88 Add to
024 9960-0860-12 SCREW M8 X 60 £3.60 Add to
025 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
026 1134-4687-01 STRUT £16.25 Add to
027 9945-0816-16 SCREW M8 X 16 £3.60 Add to
028 1137-0006-01 PULLEY £20.84 Add to
030 9650-0016-04 Lock ring N/A POA
031 1134-4707-01 BELT GUIDE £19.26 Add to
032 112735595/0 Screw £3.89 Add to
041 1134-2138-01 Eye bolt £10.15 Add to
042 1134-4779-01 Plastic bushing £6.31 Add to
043 112293200/0 HEXAGON NUT M8 £3.60 Add to
044 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
All our prices include VAT
