Power take-off

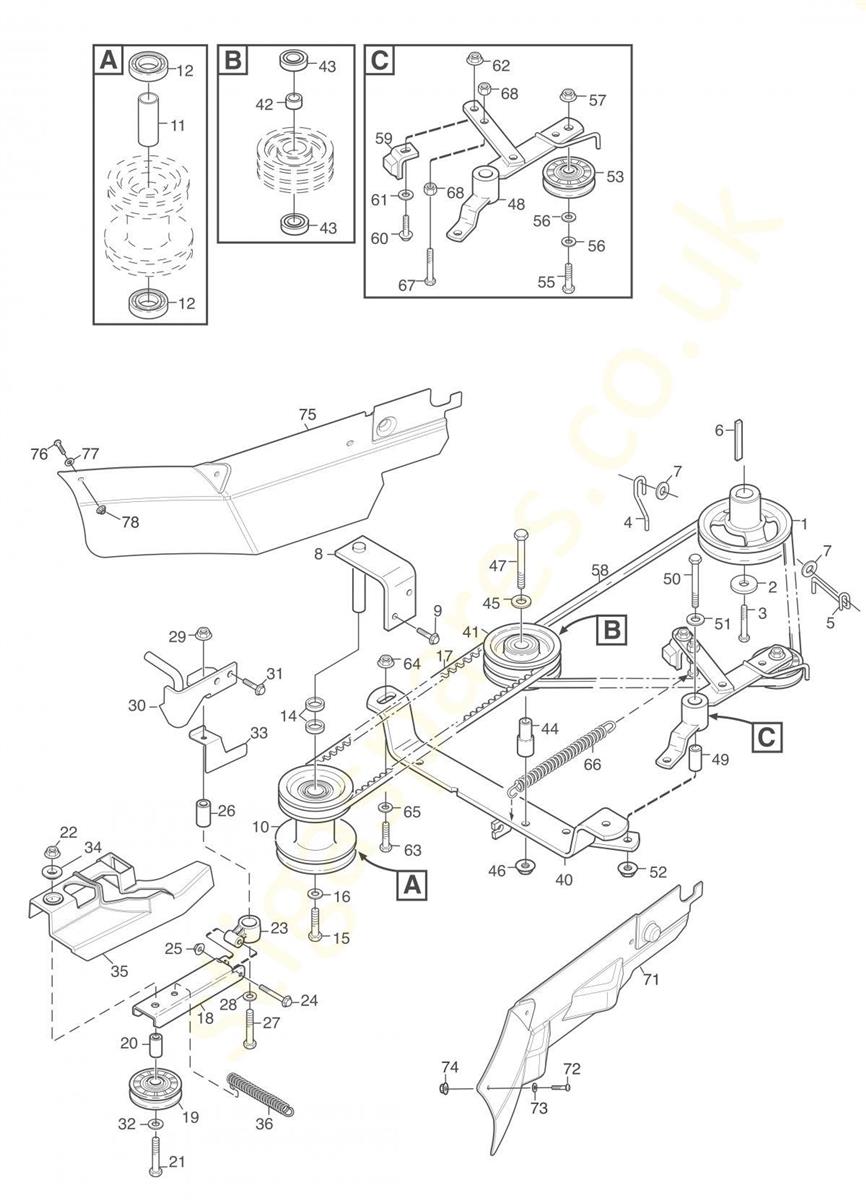

Power take-off assembly details for Stiga Stiga Villa 12 2F2700141 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011137-0081-01ENGINE PULLEY£26.28 Add to
0021134-5017-01WASHER 40 x 11.5 x 4£3.66 Add to
0039987-5332-16SCREW U6S 7/16" UNF x 32£2.70 Add to
0041134-5058-01BELT GUIDE£17.70 Add to
0051134-5057-01BELT GUIDE£17.16 Add to
0069600-0251-01KEY L=2.5"£6.48 Add to
007112523060/0WASHER M8 8.4 x 24 x 2£2.46 Add to
0081134-4650-01PULLEY BRACKET£34.44 Add to
0091134-4242-01SPACER WASHER£4.86 Add to
0101137-0003-01INTERMEDIATE PULLEY£69.00 Add to
0111134-0051-12SPACER£11.34 Add to
012120001215/0BEARING 6203 2RS C3£25.66 Add to
0141134-0052-00SPACER£8.22 Add to
0159997-1040-16SCREW M6S 10 x 40£6.90 Add to
016112521360/0WASHER M10 10.5 x 20 x 2£2.46 Add to
0171134-9079-01DRIVE BELT£33.72 Add to
0181134-5231-01TENSION ARM£21.48 Add to
0191134-2989-02TENSION PULLEY [GREY]£28.30 Add to
0201134-4619-01SPACER£7.98 Add to
0219997-1070-12SCREW M6S (M10 X 70)£2.46 Add to
022112156602/0LOW SELF-LOCKING NUT M10£2.46 Add to
0231134-6314-01TENSION ARM ATTACHMENT£8.40 Add to
024112689500/0SCREW M6 x 40£2.46 Add to
025112154510/0LOW SELF-LOCKING NUT M6£2.46 Add to
0261134-4619-01SPACER£7.98 Add to
0279930-1050-12SCREW M10 x 50£3.12 Add to
028112521360/0WASHER M10 10.5 x 20 x 2£2.46 Add to
029112156602/0LOW SELF-LOCKING NUT M10£2.46 Add to
0301137-1101-01FULCRUM BRACKET£29.71 Add to
0311134-4242-01SPACER WASHER£4.86 Add to
032112521360/0WASHER M10 10.5 x 20 x 2£2.46 Add to
033337546579/0BELT PROTECTION PLATE£9.14 Add to
034137038000/0BUSH£5.52 Add to
035337600007/0BELT GUARD [BLACK]£6.36 Add to
0361131-1507-00SPRING£27.36 Add to
0401134-5037-01BRACKET£53.40 Add to
0411137-0209-01CENTRE PULLEY ASSEMBLY£62.35 Add to
0421134-0051-09SPACER£12.54 Add to
043120001215/0BEARING 6203 2RS C3£25.66 Add to
0441134-1839-02SHAFT£16.14 Add to
045112521360/0WASHER M10 10.5 x 20 x 2£2.46 Add to
0469739-1031-22NUT (M10)£2.46 Add to
0479997-1070-12SCREW M6S (M10 X 70)£2.46 Add to
0481137-0144-01TENSION ARM£30.84 Add to
0491134-1565-10SPACER£7.98 Add to
050112691800/0SCREW M8 x 60£2.46 Add to
051112523060/0WASHER M8 8.4 x 24 x 2£2.46 Add to
0521137-0155-01SPACER£4.62 Add to
0531134-2989-02TENSION PULLEY [GREY]£28.30 Add to
055112794400/0HEX-HEAD SCREW 10 x 35£2.70 Add to
056112521360/0WASHER M10 10.5 x 20 x 2£2.46 Add to
0579739-1031-22NUT (M10)£2.46 Add to
0581134-9146-01PTO DRIVE BELT£31.26 Add to
0591134-4164-03BRAKE PAD£27.00 Add to
0609959-0820-16SCREW M6SF M8 X 20 TL£2.46 Add to
0619699-0090-02WASHER 8.4 x 18 x 1.5£2.82 Add to
062112155000/0LOW SELF-LOCKING NUT M8£2.46 Add to
0639959-0820-16SCREW M6SF M8 X 20 TL£2.46 Add to
0641137-0155-01SPACER£4.62 Add to
065112523060/0WASHER M8 8.4 x 24 x 2£2.46 Add to
0661131-1506-00SPRING£21.42 Add to
067112691800/0SCREW M8 x 60£2.46 Add to
0681137-0155-01SPACER£4.62 Add to
071337600009/1LEFT BELT GUARD [BLACK]£17.22 Add to
0729893-0616-16SCREW M6 x 16£2.94 Add to
073112523040/0WASHER M6 6.6 x 18 x 1.6£2.46 Add to
074112292102/0HEXAGON NUT M6£2.64 Add to
075337600008/0RIGHT BELT GUARD [BLACK]£14.35 Add to
0769893-0616-16SCREW M6 x 16£2.94 Add to
077112523040/0WASHER M6 6.6 x 18 x 1.6£2.46 Add to
078112292102/0HEXAGON NUT M6£2.64 Add to
