Pedal lift

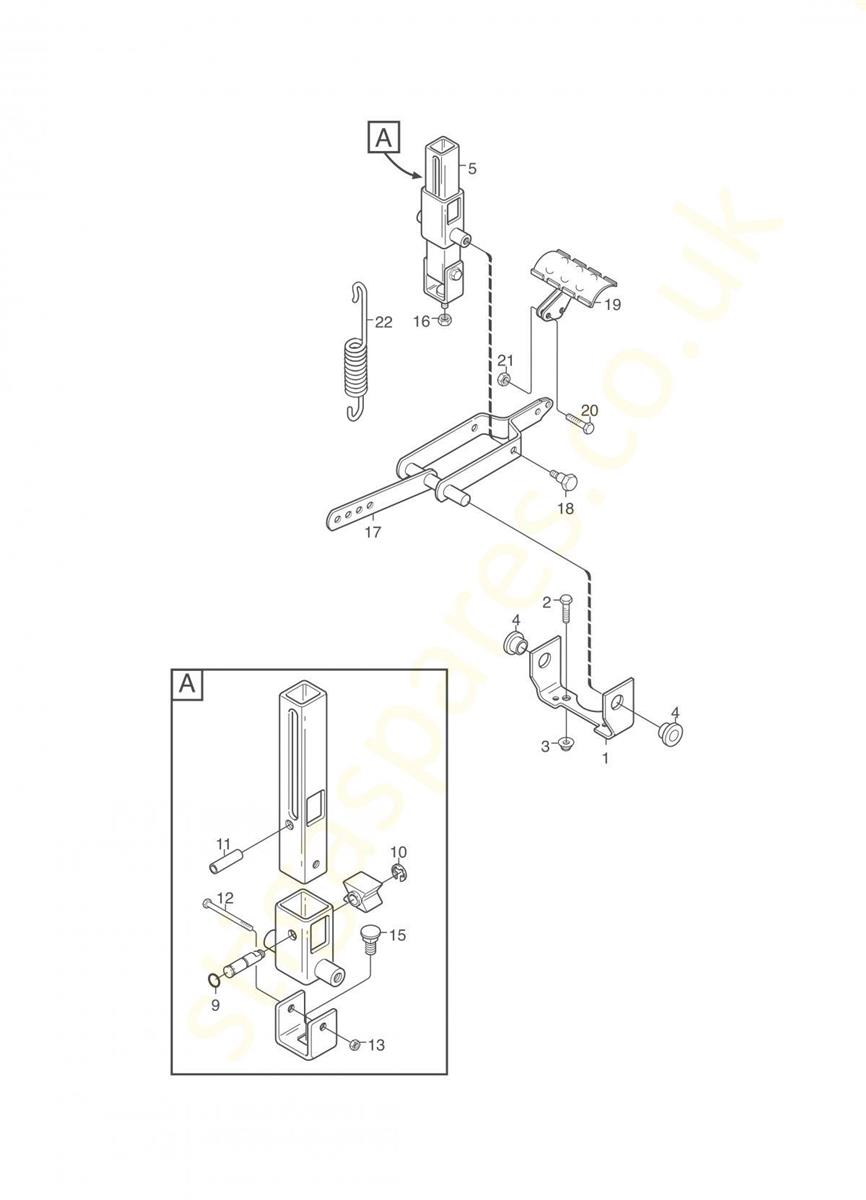

Pedal lift assembly details for Stiga Stiga Villa 12 2F2700141 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-4117-01BRACKET£31.42 Add to
0029959-1025-16SCREW M6SF M10 x 25 TL£2.86 Add to
0039739-1031-22NUT M10£2.21 Add to
0041134-2684-01BUSH£6.76 Add to
0051134-4945-01LIFT CATCH ASSEMBLY£118.37 Add to
0099404-0027-01O RING 4.48 X 1.78£2.86 Add to
0109650-0039-04CIRCLIP 8mm£2.35 Add to
0119595-0276-01LOCATING PIN£3.38 Add to
012112689500/0SCREW M6 x 40£1.96 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£1.96 Add to
0159897-0820-16SCREW M8 x 20£2.21 Add to
016112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
017387256053/0LIFT LEVER ASSEMBLY£72.94 Add to
0181134-0240-00SCREW£8.70 Add to
0191134-4938-01LIFT PEDAL£23.76 Add to
020112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£1.96 Add to
021112292102/0FLANGED HEXAGONAL NUT M6£1.96 Add to
0224231-0013-00SPRING£8.45 Add to
