Foot controls

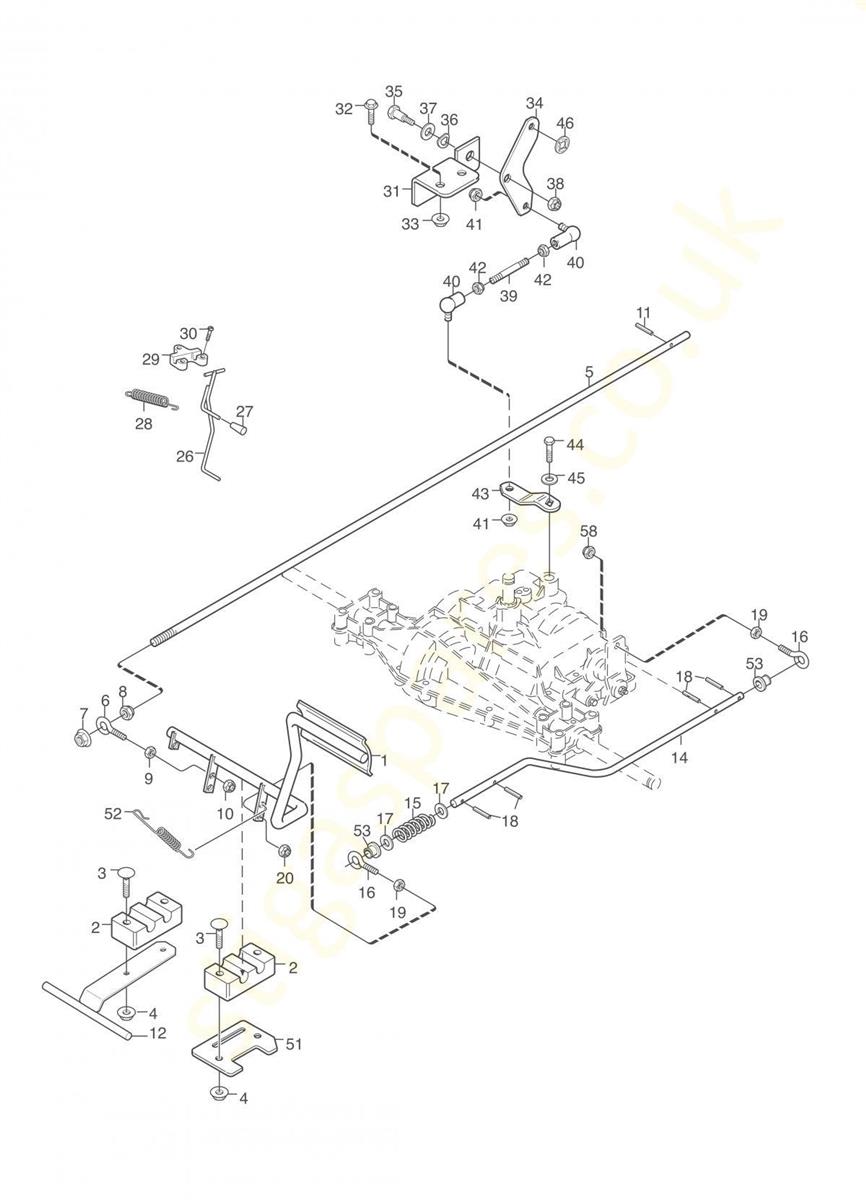

Foot controls assembly details for Stiga Stiga Villa 12 2F2700141 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 1134-4802-01 PEDAL £60.32 Add to
002 1134-4624-01 BEARING £11.16 Add to
003 9897-0640-12 SCREW M6 x 40 £3.89 Add to
004 112292102/0 HEXAGON NUT M6 £3.60 Add to
005 1134-4795-01 CLUTCH ROD £33.72 Add to
006 1134-2138-01 EYE BOLT £10.15 Add to
007 9739-1031-22 NUT M10 £3.60 Add to
008 9731-1031-22 LOCK NUT M6MF M10 £3.60 Add to
009 112293200/0 HEXAGON NUT M8 £3.60 Add to
010 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
011 9595-0208-00 LOCATING PIN £3.89 Add to
012 387773501/0 BRACKET £16.29 Add to
014 1134-4777-01 BRAKE ROD £33.72 Add to
015 1134-4617-01 SPRING £6.31 Add to
016 1134-2138-01 EYE BOLT £10.15 Add to
017 112521360/0 WASHER M10 10.5 X 20 X 2 £3.60 Add to
018 9595-0208-00 LOCATING PIN £3.89 Add to
019 112293200/0 HEXAGON NUT M8 £3.60 Add to
020 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
026 1134-5353-01 BRAKE ROD £17.28 Add to
027 1134-2786-01 PLASTIC KNOB £6.73 Add to
028 1131-1497-01 BRAKE SPRING £11.96 Add to
029 1134-4002-01 BRAKE ROD ATTACHMENT £13.93 Add to
030 112728697/0 SELF-TAP SCREW PT TORX K50 X 16 £3.60 Add to
031 1134-4714-01 ANGLE BRACKET £21.67 Add to
032 9959-0820-16 SCREW M6SF M8 X 20 L=20MM £3.60 Add to
033 1137-0155-01 SPACER £4.81 Add to
034 1134-4715-01 ANGLE BRACKET £21.67 Add to
035 1134-0240-00 SHOULDER SCREW £9.50 Add to
036 122675110/0 WASHER D=13.5 X 20.5 X 0.5 £3.60 Add to
037 122671652/0 WASHER 12,3X20X2 ES WBH £3.60 Add to
038 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
039 1134-4717-03 THREADED ROD £5.38 Add to
040 9570-0004-00 ELBOW LINK £26.92 Add to
041 112154510/0 LOW SELF-LOCKING NUT M6 £3.60 Add to
042 112292102/0 HEXAGON NUT M6 £3.60 Add to
043 1134-4722-01 CLUTCH LEVER £11.37 Add to
044 112735520/0 HEX-HEAD SCREW 1/4" x 5/8" £3.89 Add to
045 112523040/0 WASHER M6 6.6 X 18 X 1.6 £3.60 Add to
046 112604896/0 STARLOCK WASHER D=6 £3.60 Add to
051 1134-4793-01 BRACKET £19.45 Add to
052 4231-0013-00 SPRING £12.48 Add to
053 1134-4779-01 PLASTIC BUSHING £6.31 Add to
058 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
