Engine

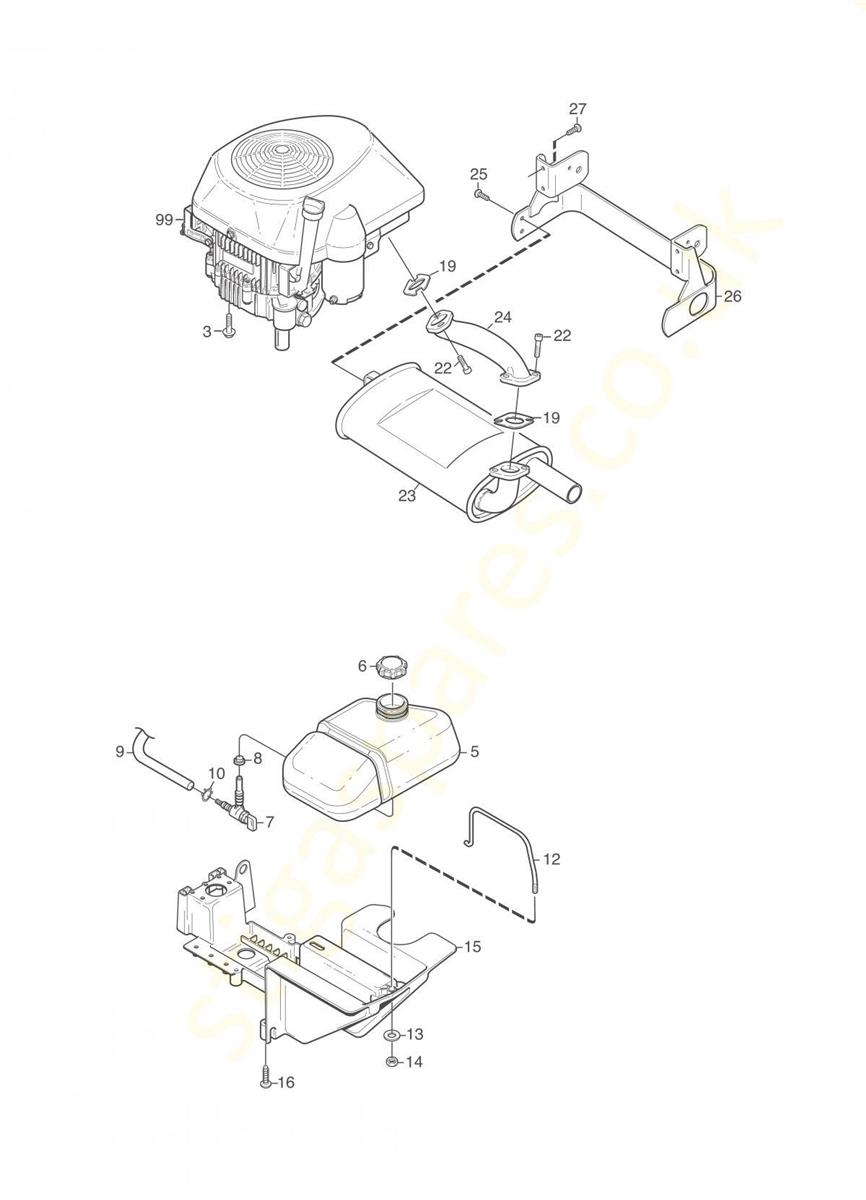

Engine assembly details for Stiga Stiga Villa 12 2F2700141 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
003 9955-3725-16 SCREW 3/8" X 25 £3.60 Add to
005 1134-6626-01 FUEL TANK £28.93 Add to
006 1134-5532-01 FUEL TANK CAP £22.94 Add to
007 1134-3224-01 FUEL SHUT-OFF VALVE (B&S) £24.74 Add to
008 1134-3225-01 GROMMET £6.30 Add to
009 1134-2975-15 FUEL HOSE (L=1400) £23.65 Add to
010 9578-0023-02 HOSE CLAMP [12MM] (B&S) £13.25 Add to
012 1134-4808-01 TANK CLAMP £16.34 Add to
013 112523040/0 WASHER M6 6.6 X 18 X 1.6 £3.60 Add to
014 112154510/0 LOW SELF-LOCKING NUT M6 £3.60 Add to
015 1134-4807-02 BATTERY SUPPORT PLATE £81.48 Add to
016 9829-8830-12 SCREW £3.89 Add to
019 1134-0433-00 MUFFLER GASKET £7.13 Add to
022 1134-4930-01 SCREW £3.60 Add to
023 387753302/0 MUFFLER £116.30 Add to
024 1134-6634-01 EXHAUST PIPE ASSY £64.60 Add to
025 9893-0616-16 SCREW M6 X 16 £3.60 Add to
026 387593601/0 HEAT GUARD £48.95 Add to
027 9893-0616-16 SCREW M6 X 16 £3.60 Add to
099 118550439/0 ENGINE ASSEMBLY 414CC TRE0702(ST.WM12) £492.00 Add to
