WHEEL ENGINES-FRONT

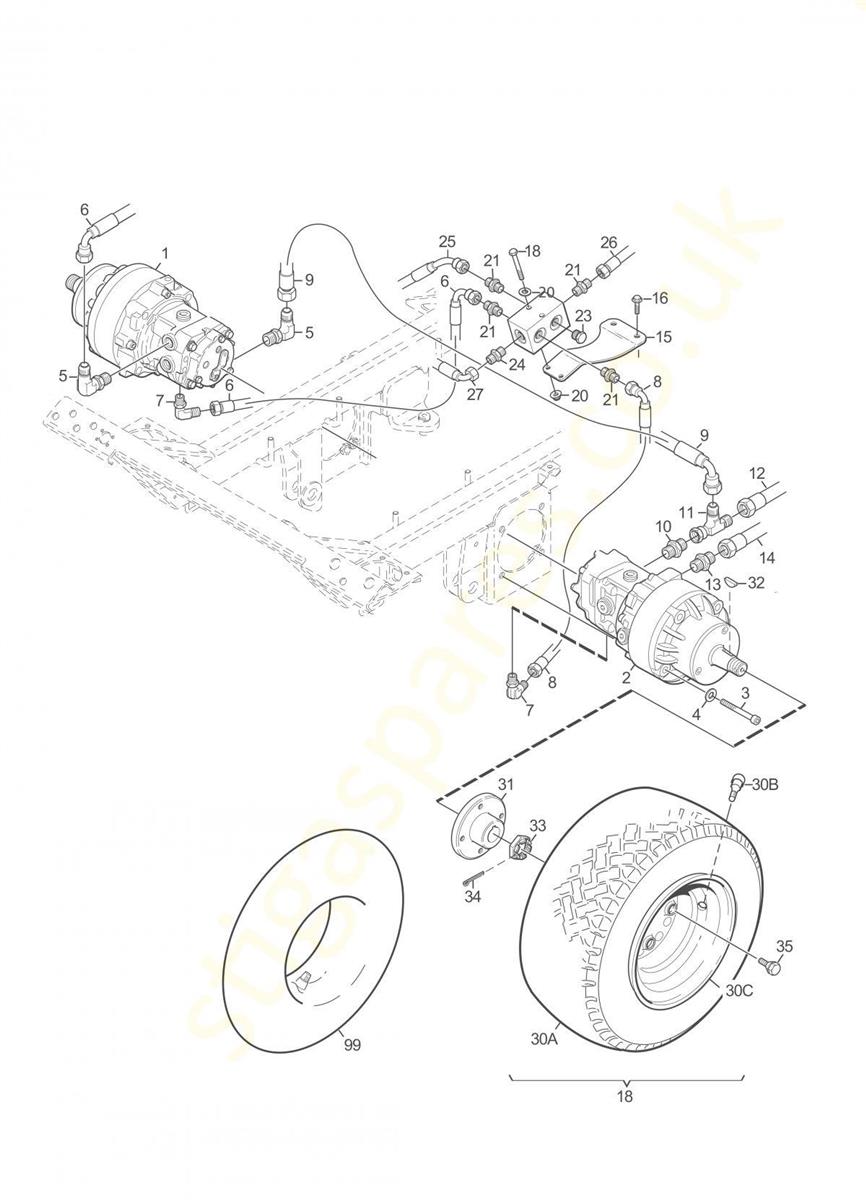

WHEEL ENGINES-FRONT assembly details for Stiga Stiga TITAN 740DCR 13-7462-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011137-0961-01WHEEL MOTOR KWM 13S-186D£3,931.64 Add to
0021137-0960-01WHEEL MOTOR WITH ORIFICE£2,466.75 Add to
0039939-1213-02SCREW£3.69 Add to
004122671652/0WASHER 12.3 x 20 x 2£2.74 Add to
0051137-0755-02HYDRAULIC CONNECTOR£43.03 Add to
0061137-0633-01HYDRAULIC HOSE L=1375m 90° 5/8"£124.97 Add to
0071137-0755-01HYDRAULIC CONNECTOR£43.03 Add to
0081137-0195-14HYDRAULIC HOSE L=360mm 90° 3/8"£35.23 Add to
0091137-0217-03Hydraulic tubeN/A POA
0101137-0756-01HYDRAULIC CONNECTOR£26.23 Add to
0111137-0757-01HYDRAULIC CONNECTOR£23.39 Add to
0121137-0227-09HYDRAULIC TUBE (OBSOLETE)N/A
0131137-0756-04HYDRAULIC CONNECTOR£22.37 Add to
0141137-0632-01HYDRAULIC HOSE L=1240mm 5/8"£98.29 Add to
0151137-0597-01HYDRAULIC BLOCK BRACKET£45.26 Add to
016112800815/0SCREW TE FL M8 x 16£2.06 Add to
0171137-0575-01CONNECTION BLOCK£212.98 Add to
018081-461-01ScrewN/A POA
0199699-0025-02Bricka WasherN/A POA
020112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0211134-7156-01HYDRAULIC COUPLING£10.45 Add to
0221134-7161-01HYDRAULIC CONNECTOR£24.20 Add to
0231134-7453-01PLUG (3/8")£10.75 Add to
024082-019-01Adapter Hydraulic couplingN/A POA
0251137-0196-02Hydraulic tubeN/A POA
0261137-0217-04HYDRAULIC HOSE L=1820mm 1/2"£88.85 Add to
0271137-0195-15HYDRAULIC HOSE L=860mm 90° 3/8"£40.80 Add to
0301134-7308-02WHEEL ASSEMBLY 20"£346.76 Add to
0311134-6971-01WHEEL HUB£124.29 Add to
0321134-6996-01WOODRUFF KEY£7.78 Add to
0339781-2431-32HEX.CASTLE NUT M24 X 2£9.54 Add to
0349599-0101-02COTTER PIN 5 x 45£1.79 Add to
0351134-7041-01WHEEL SCREW£4.91 Add to
0999545-0211-01INNER TUBE (FOR 20"" WHEELS)£37.08 Add to
30A9545-0127-02TyreN/A POA
30B125950000/0PNEUMATIC VALVE£5.73 Add to
30C1134-7309-01WHEEL RIM 10"£259.19 Add to
