STEERING

STEERING assembly details for Stiga Stiga TITAN 740DCR 13-7462-11 2016 model

Parts list

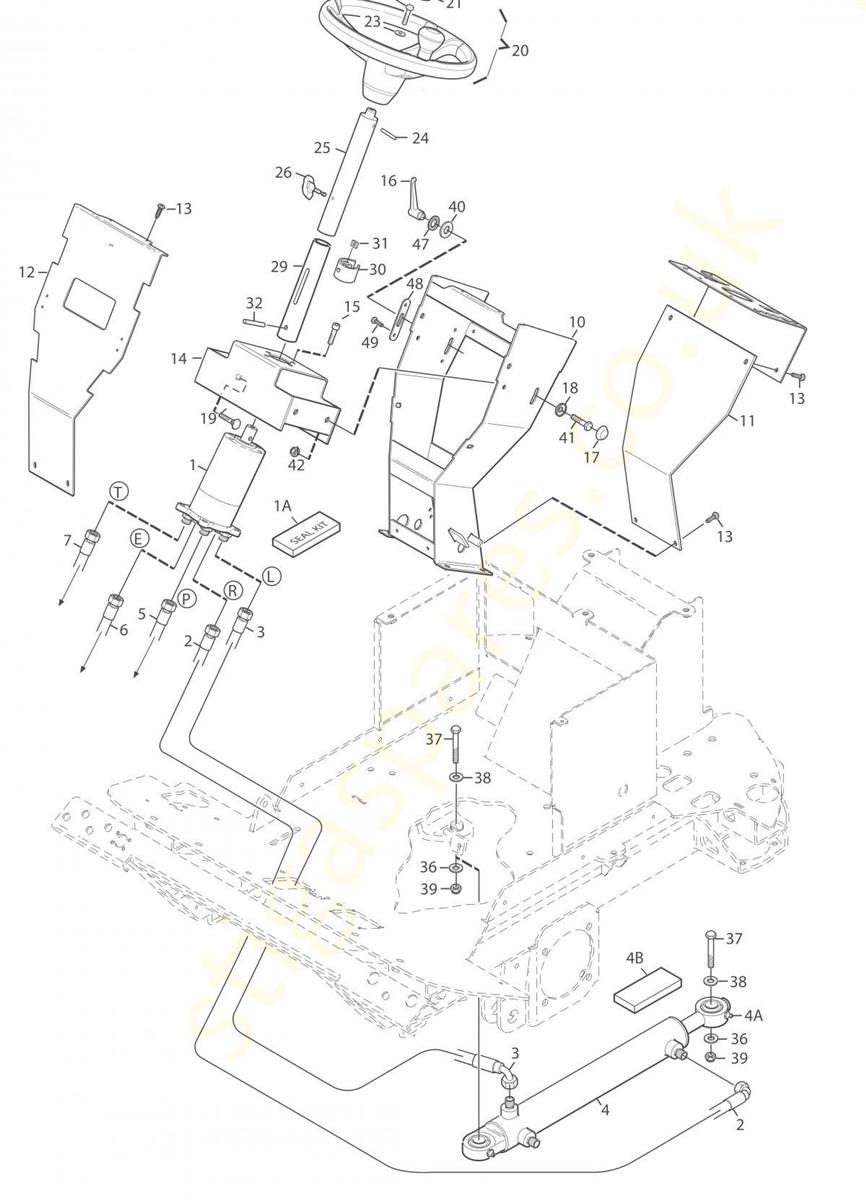

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-7214-01STEERING BOOSTER£961.20 Add to
0021137-0185-13HYDRAULIC HOSE 90° ¼"£42.78 Add to
0031137-0186-08HYDRAULIC HOSE 45° ¼"£51.78 Add to
0041135-2808-01STEERING CYLINDER£511.20 Add to
0051137-0195-03HYDRAULIC HOSE£103.20 Add to
0061137-0196-05HYDRAULIC HOSE L=1350mm 45° 3/8"£48.29 Add to
0071137-0196-02Hydraulic tubeN/A POA
0101137-0667-01Styrkonsol bracketN/A POA
0111134-7198-01REAR PLATE-STEERING CONSOLE£49.20 Add to
0121137-0670-02FRONT PLATE£87.50 Add to
0139893-0616-16SCREW M6 x 16£3.12 Add to
0141134-6995-01BRACKET-STEERING SERVO£110.40 Add to
015112800815/0SCREW TE FL M8 x 16£2.76 Add to
0161134-7123-01LOCK LEVER-ADJUSTABLE£32.40 Add to
0179403-0053-01COVER CAP£5.93 Add to
0189400-0052-01Hattbricka Cap ringN/A POA
0199897-0820-16SCREW M8 x 20£3.00 Add to
01A1139-2081-01SEAL KIT£175.20 Add to
020337961200/0STEERING WHEEL [BLACK]£259.20 Add to
021337580550/0STEERING WHEEL PLATE£8.66 Add to
022112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.76 Add to
023112583500/0WASHER M8 UNI 1751 WZ£2.76 Add to
024112620299/0............................Locating pinN/A POA
025387520101/0Rattstång columnN/A POA
026337394201/0WING NUT£12.96 Add to
0291134-5216-01INNER STEERING TUBE£78.00 Add to
0301134-5177-01SLIDE COLLAR£12.96 Add to
0319710-0631-12SQUARE NUT£4.08 Add to
0329595-0258-01............................Locating pinN/A POA
0331134-4481-02WING NUT£6.36 Add to
0349997-0630-12ScrewN/A POA
0369690-0003-02Bricka WasherN/A POA
0379997-0860-12ScrewN/A POA
0381134-4176-01CLIP£5.52 Add to
039112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
0409699-0090-02WASHER 8.4 x 18 x 1.5£3.00 Add to
041112800815/0SCREW TE FL M8 x 16£2.76 Add to
042112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.76 Add to
047081-470-01LOCK WASHER 5/16" - NLA£2.76 Add to
0481135-2514-01WEAR PLATE£26.39 Add to
0499893-0616-16SCREW M6 x 16£3.12 Add to
04A112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.76 Add to
04B1139-2083-01SEAL KIT£115.20 Add to
0529893-0616-16SCREW M6 x 16£3.12 Add to
