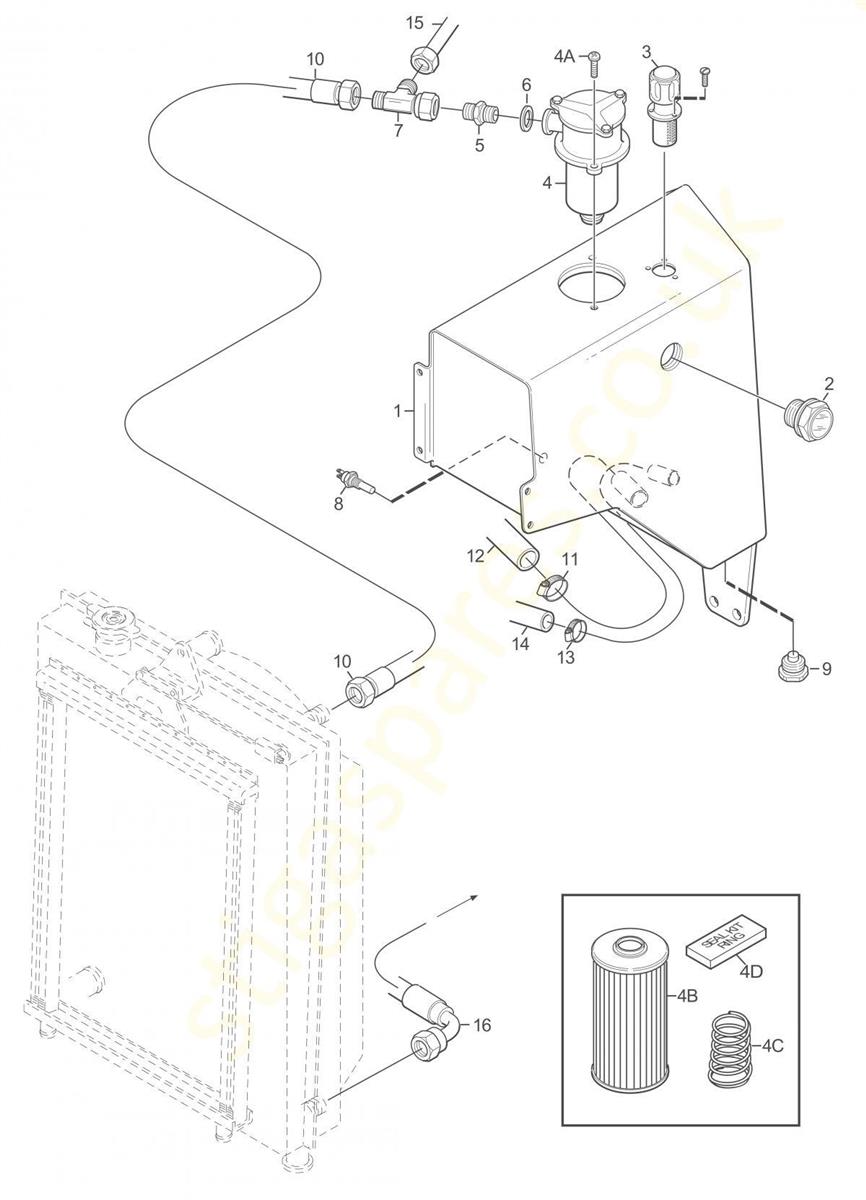

OIL TANK assembly details for Stiga Stiga TITAN 740DCR 13-7462-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011137-0485-01HYDRAULIC OIL TANK£1,055.02 Add to
0021137-7379-02Level eyeN/A POA
0031135-3965-01AIR VENTING FILTER£86.27 Add to
004084-297-01OIL FILTER CASING ASSEMBLY£170.61 Add to
005084-983-01HYDRAULIC CONNECTOR£35.35 Add to
0061134-4948-01SEAL WASHER 1/4"£2.59 Add to
0071137-0807-01L-COUPLING£48.44 Add to
008084-459-02TEMPERATURE SENSOR£170.47 Add to
0091135-2936-02MAGNET PLUG£29.21 Add to
0101137-0224-02Hydraulic tubeN/A POA
0121134-7152-02Hydraulic tubeN/A POA
0139578-0031-01HOSE CLAMP£5.58 Add to
0151137-0594-01HYDRAULIC HOSE£94.13 Add to
0161137-0633-02Hydraulic tubeN/A POA
04A112760515/0HEXAGONAL SCREW TC M8 x 20£0.79 Add to
04B084-479-01HYDRAULIC OIL FILTER-LONG£184.24 Add to
04C1139-2087-01SPRING FOR OIL FILTER£50.70 Add to
04D1139-2068-01EXPANSION TANK KIT£92.57 Add to
