KANZAKI WHEEL ENGINE KWM 13S-186C AXLE ASSY

KANZAKI WHEEL ENGINE KWM 13S-186C AXLE ASSY assembly details for Stiga Stiga TITAN 740DCR 13-7462-11 2016 model

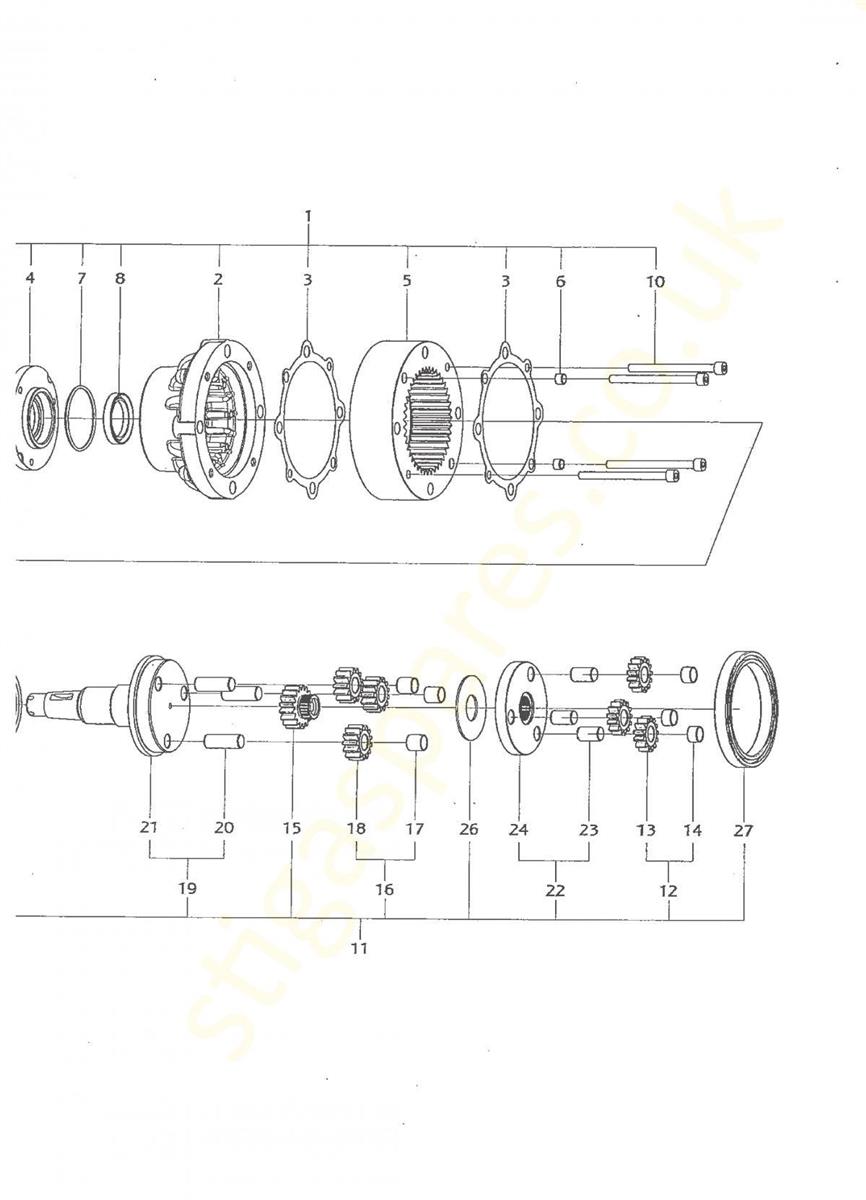

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1139-1634-01	AXLE ASSEMBLY	£1,451.70	Add to
002	1139-1635-01	AXLE CASE	£295.98	Add to
003	1139-1636-01	GASKET	£27.60	Add to
004	1139-1637-01	SEAL COVER (OBSOLETE)	N/A
005	1139-1697-01	INTERNAL GEAR	£1,036.24	Add to
006	1139-1166-01	PIN	£3.48	Add to
007	1139-1682-01	SEAL RING	£4.56	Add to
008	1139-1684-01	SEAL	£19.68	Add to
009	1139-1688-01	BOLT	£4.16	Add to
010	1139-1691-01	BOLT	£9.89	Add to
011	1139-1699-01	AXLE SHAFT ASSEMBLY	£2,055.99	Add to
012	1139-1645-01	GEAR 1ST ASSEMBLY	£197.78	Add to
015	1139-1640-01	SUN GEAR 2ND	£122.25	Add to
016	1139-1701-01	GEAR 2ND ASSEMBLY	£356.41	Add to
019	1139-1700-01	SHAFT ASSEMBLY	£922.94	Add to
022	1139-1644-01	CARRIER ASSEMBLY	£341.30	Add to
025	1139-1675-01	BALL BEARING	£107.14	Add to
026	1139-1641-01	PLATE	£26.54	Add to
027	1139-1642-01	BEARING	£832.29	Add to
