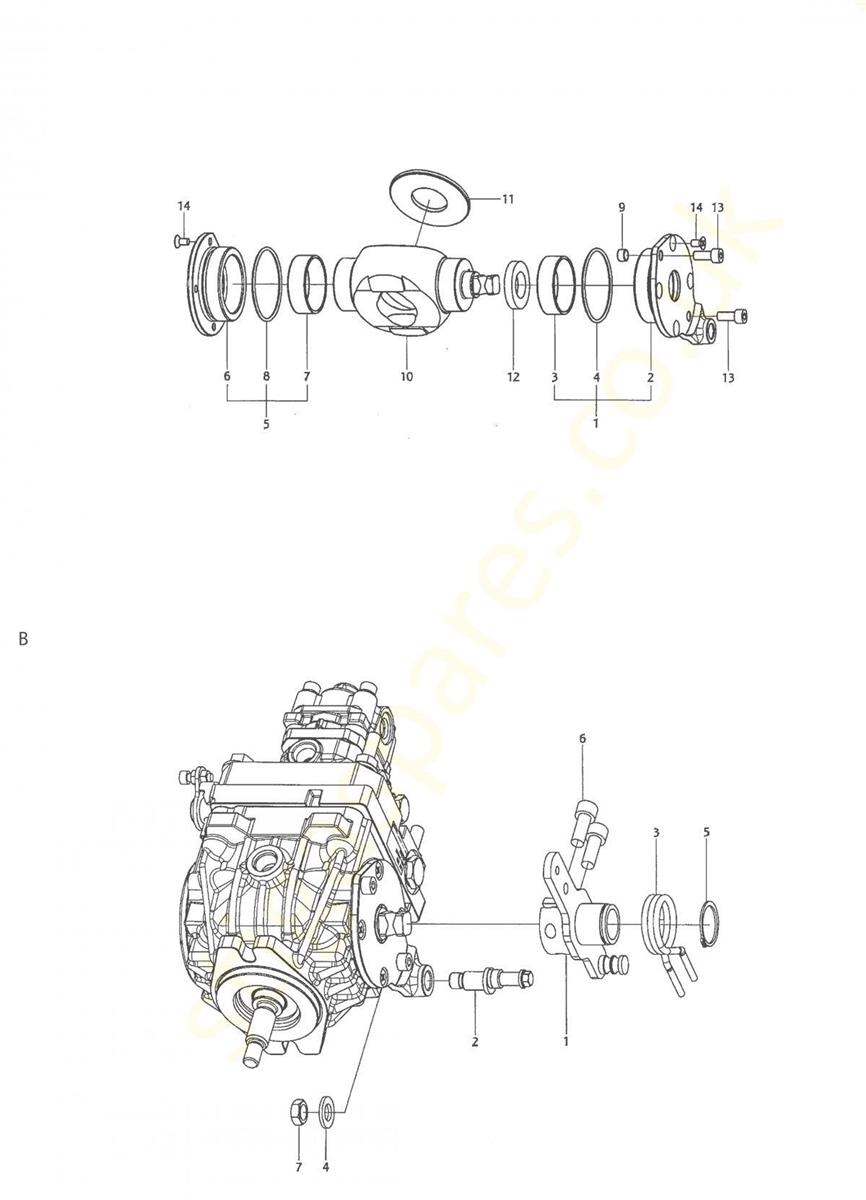

KANZAKI HYDRAULIC PUMP KPS-23ALPH CONTROL-NEUTRAL assembly details for Stiga Stiga TITAN 740DCR 13-7462-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

A011139-1711-01SIDE COVER ASSEMBLY£1,110.10 Add to
A041139-1682-01SEAL RING£4.10 Add to
A051139-1712-01SIDE COVER ASSEMBLY£326.46 Add to
A081139-1682-01SEAL RING£4.10 Add to
A091139-1166-01PIN£4.94 Add to
A101139-1612-01PLATE£341.32 Add to
A111139-1611-01THRUST PLATE£70.68 Add to
A121139-1613-01SEAL£57.52 Add to
A131139-1586-01Bolt£4.01 Add to
A141139-1692-01SCREW£3.64 Add to
B011139-1565-01LEVER CMP£495.35 Add to
B021139-1555-01FULCRUM£130.25 Add to
B031135-3751-01RETURN SPRING£149.23 Add to
B041139-1102-01WASHER£5.75 Add to
B051139-1574-01Ring£4.01 Add to
B061139-1588-01Bolt£6.54 Add to
B071139-1127-01NUT£3.40 Add to
