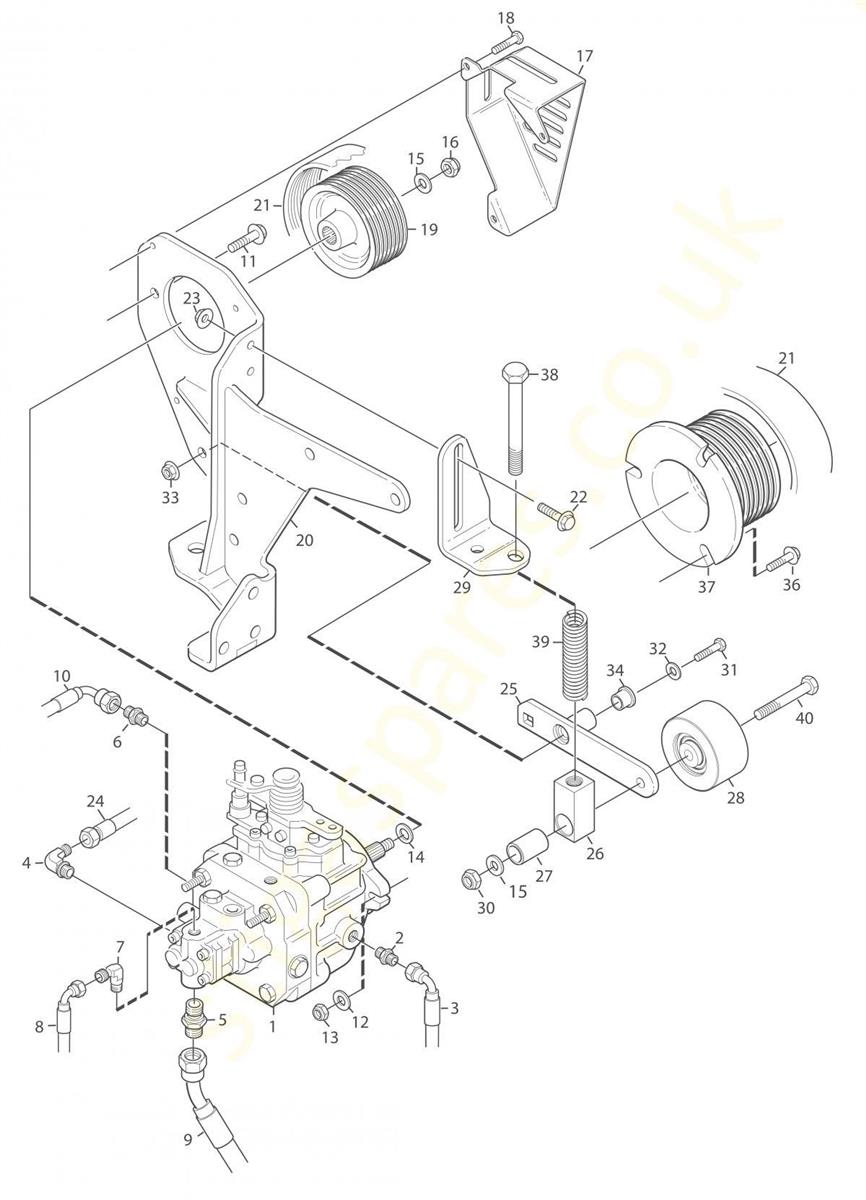

HYDROSTATPUMP HYDRO PUMP assembly details for Stiga Stiga TITAN 740DCR 13-7462-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011137-1128-01HYDRAULIC PUMP KPS-23 ALPH£6,800.10 Add to
0021134-5809-01HYDRAULIC COUPLING£17.86 Add to
0031137-0195-17HYDRAULIC HOSE 90° 3/8"£53.75 Add to
0041137-0772-01HYDRAULIC COUPLING£21.26 Add to
0051134-7187-01HYDRAULIC COUPLING£26.93 Add to
006082-043-01HYDRAULIC COUPLING JIC 1 1/16-7/8£7.90 Add to
0081137-0195-03HYDRAULIC HOSE£116.11 Add to
0119997-1035-16SCREW M6S M10 x 35£3.28 Add to
0129699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
013112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
0141137-0604-01SPACER£26.18 Add to
015122671652/0WASHER 12.3 x 20 x 2£2.74 Add to
0169747-1231-02NUT£2.06 Add to
0171137-0550-01BELT GUARD (OBSOLETE)N/A
0189959-0616-16SCREW M6SF M6 X 16£2.06 Add to
0191137-1069-01PUMP PULLEY£117.47 Add to
0201137-0517-01HST-PUMP BRACKET£484.04 Add to
0219585-0222-01POLY-V BELT£58.87 Add to
0229959-1025-16SCREW M6SF M10 x 25 TL£3.00 Add to
0239959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0251137-0526-01TENSION ARM£99.76 Add to
0261137-0529-01BLOCK£32.68 Add to
0271137-0530-01SLEEVE£16.54 Add to
0281137-1071-01TENSION ROLLER£315.28 Add to
0291137-0532-01BRACKET£64.32 Add to
030112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
0319997-1065-01ScrewN/A POA
032112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
033112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
0349544-0023-01BEARING£2.87 Add to
0359544-0023-02BEARING£3.00 Add to
0369997-1225-16SCREW M6S M12 x 25£4.52 Add to
0379997-1225-16SCREW M6S M12 x 25£4.52 Add to
0389939-1213-02SCREW£3.69 Add to
0391137-0599-01SPRING£14.05 Add to
0409939-1231-02SCREW (OBSOLETE)N/A
045112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
