FUEL TANK

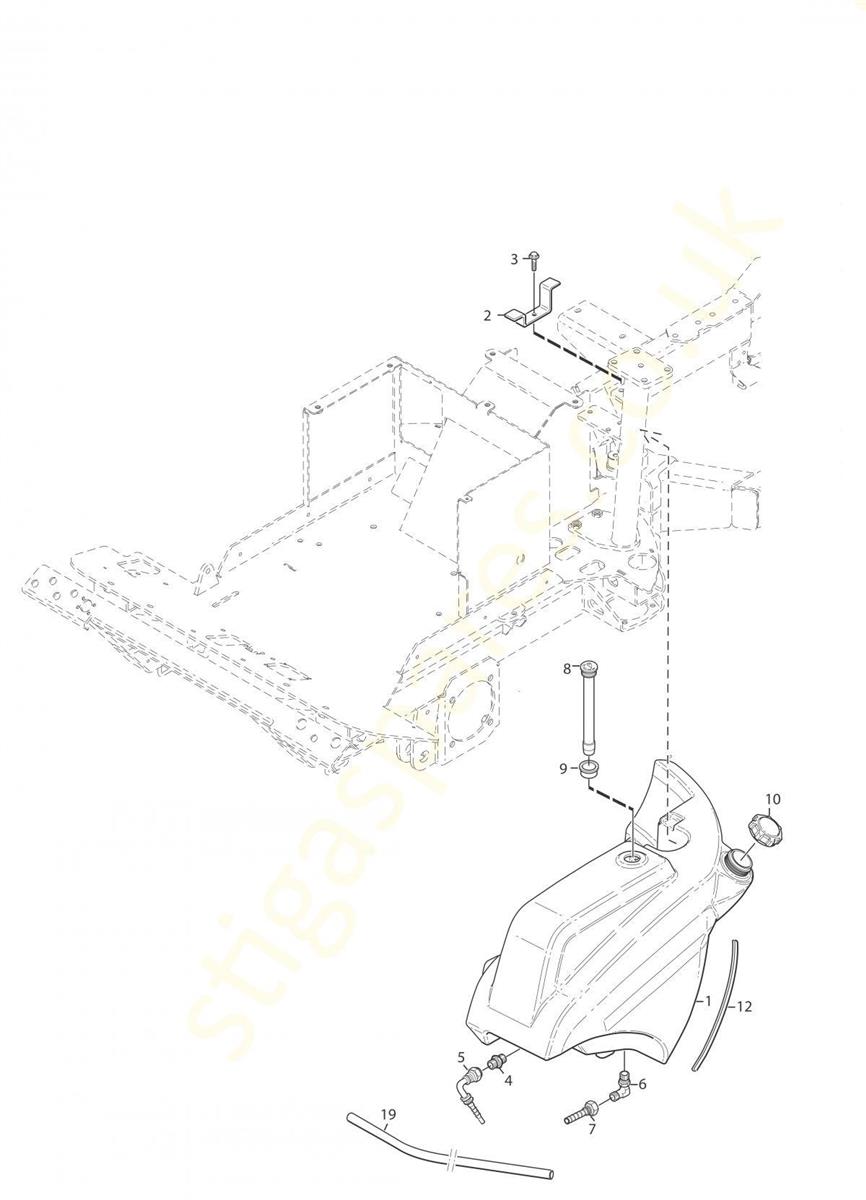

FUEL TANK assembly details for Stiga Stiga TITAN 740DCR 13-7462-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011137-0656-01FUEL TANK£701.32 Add to
0021135-2522-01FUEL TANK CLAMP£13.47 Add to
0031134-4242-01SPACER WASHER£5.75 Add to
004387520119/0LOWER STEERING COLUMN£64.86 Add to
0051135-2796-01TUBE COUPLING£14.30 Add to
006082-675-01L-COUPLING (OBSOLETE)N/A
0071135-3670-01TUBE COUPLING (OBSOLETE)N/A
0081135-2526-01FUEL LEVEL INDICATOR£141.37 Add to
0091135-2528-01RUBBER SLEEVE£9.08 Add to
0101135-3381-01FUEL TANK CAP£35.41 Add to
0121135-3768-02SEALING STRIP (OBSOLETE)N/A
0190,819505-0002-01 Bränsleslang Fuel line Quantity per meterN/A POA
0192,169505-0002-02 Bränsleslang Fuel line Quantity per meterN/A POA
0190,959505-0002-03 Bränsleslang Fuel line Quantity per meterN/A POA
0209578-0023-02HOSE CLAMP£6.38 Add to
