FRAME-REAR

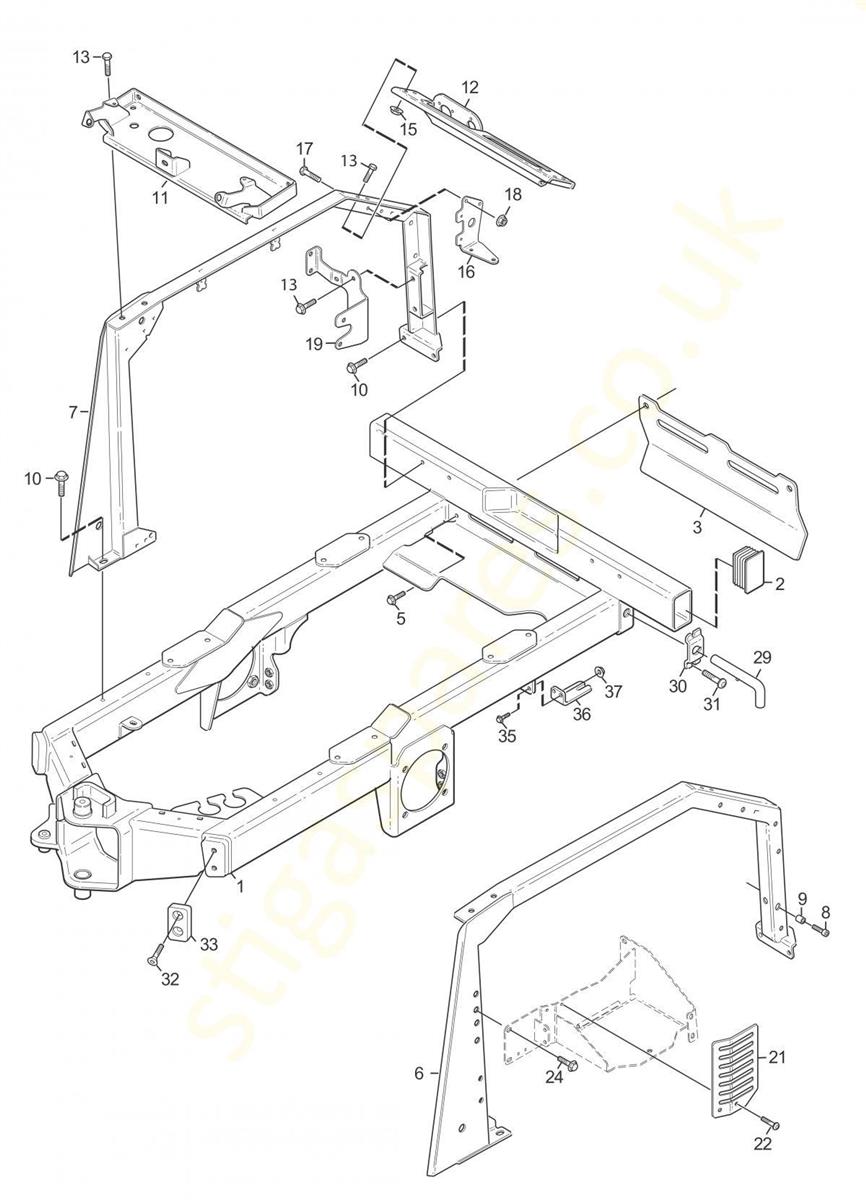

FRAME-REAR assembly details for Stiga Stiga TITAN 740DCR 13-7462-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011137-1121-01Frame-rearN/A POA
0029403-0058-01END CAP£7.92 Add to
0031137-0553-01HEAT GUARD£88.52 Add to
005112800815/0SCREW TE FL M8 x 16£1.96 Add to
0061137-0490-01LOAD FRAME L/H£515.13 Add to
0071137-0489-01LOAD FRAME R/H£515.13 Add to
0089939-1020-16SCREW£1.96 Add to
0091134-0041-10BUSH£40.50 Add to
0109959-1025-16SCREW M6SF M10 x 25 TL£2.86 Add to
0111137-0501-01FRONT CROSS MEMBER£360.22 Add to
0121137-0508-01REAR CROSS MEMBER£157.87 Add to
0131182800815/0ScrewN/A POA
0151137-0155-01SPACER£4.30 Add to
0161137-0557-01BRACKET-FUEL PUMP£37.90 Add to
0179893-0616-16SCREW M6 x 16£2.35 Add to
0191134-0556-01Bracket PTO BlockN/A POA
0229893-0816-16SCREW (OBSOLETE)N/A
0231137-0551-01BELT GUARD-ALTERNATOR£46.94 Add to
0291134-7525-01LOCKING PIN£53.48 Add to
0301134-7523-01BRACKET-LOCKING PIN£12.34 Add to
031112735662/1SCREW TCB TORX M6 x 12£2.73 Add to
0329924-0820-16SCREW (OBSOLETE)N/A
0331135-3188-01STEERING LIMIT£24.93 Add to
0359959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£1.96 Add to
0361137-0591-01MUFFLER BRACKET£27.75 Add to
037112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
