FOOT CONTROLS assembly details for Stiga Stiga TITAN 740DCR 13-7462-11 2016 model

Parts list

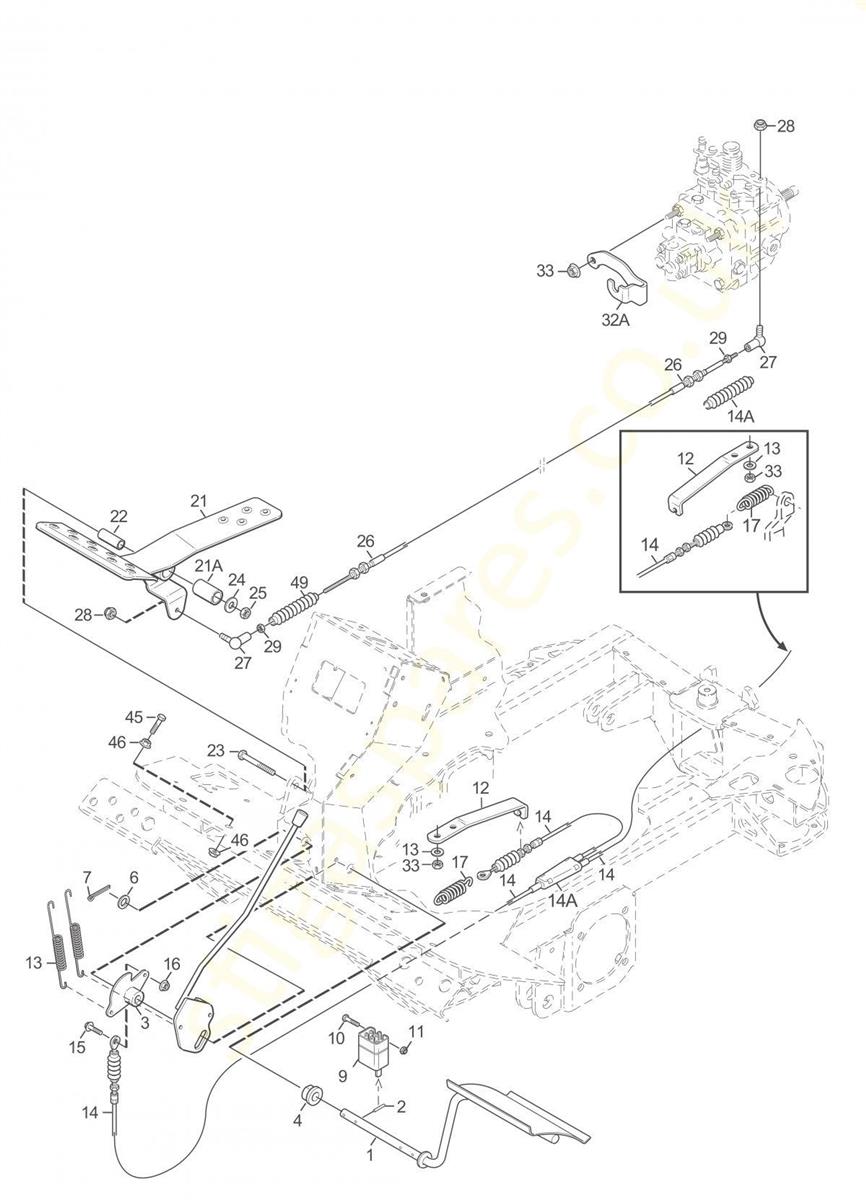

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011134-7267-03BRAKE PEDAL£34.35 Add to
0029595-0210-00LOCATING PIN£8.32 Add to
0031137-0706-01BRAKE ARM (OBSOLETE)N/A
0041134-6313-01BEARING£7.36 Add to
0051137-0702-01BRAKE LOCK£39.61 Add to
006122671652/0WASHER 12.3 x 20 x 2£2.74 Add to
0079599-0080-02COTTER PIN£2.47 Add to
0081134-7401-01SPRING£6.55 Add to
0091134-3999-01SPACER (OBSOLETE)N/A
0109997-0520-16SCREW M6S M5 x 20£2.32 Add to
011112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0121137-0589-01BRAKE CABLE BRACKET£27.09 Add to
0139930-0816-16SCREW (OBSOLETE)N/A
0141137-1040-01Bromswire Brake cableN/A POA
015112789020/0HEX-HEAD SCREW M5 x 25£2.06 Add to
016112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0171134-7321-01EXTENSION SPRING£5.76 Add to
0211134-7216-02DRIVE PEDAL£190.93 Add to
0221134-7217-01SPACER£9.54 Add to
023999-1050-12ScrewN/A POA
0249699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
0251134-4775-01LOCK NUT£2.47 Add to
0261134-7054-03CONTROL CABLE£179.92 Add to
0279570-0004-00ELBOW LINK£26.18 Add to
028112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
029112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0321137-0564-01HST CABLE BRACKET£54.48 Add to
0339747-1231-02NUT£2.06 Add to
14A1135-3948-01RUBBER SLEEVE£15.13 Add to
21A9548-0027-01BEARING£9.68 Add to
