ELECTRICAL SYSTEM 1

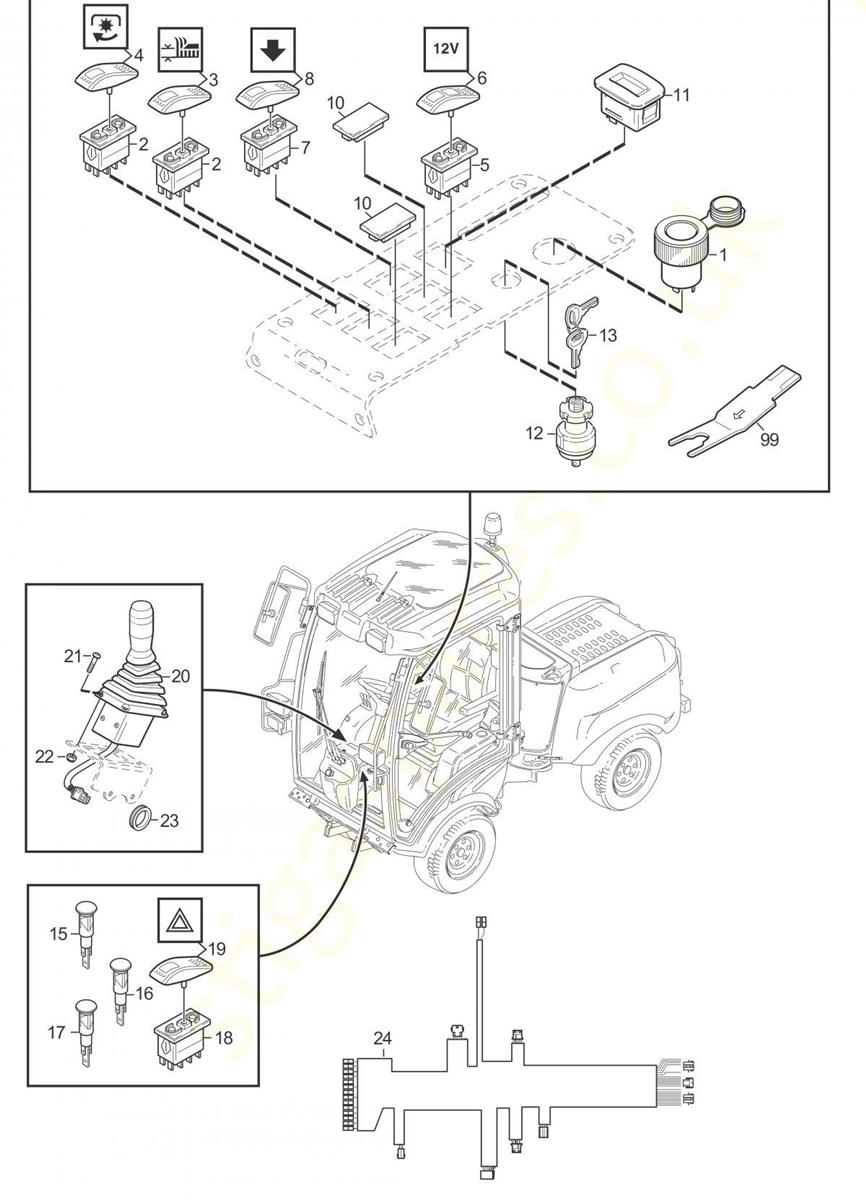

ELECTRICAL SYSTEM 1 assembly details for Stiga Stiga TITAN 740DCR 13-7462-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0019400-0317-02DC-SOCKET£16.56 Add to
0029400-0282-01SWITCH C/W DIODE£68.40 Add to
0039400-0280-03SWITCH COVER-HEIGHT ADJUST£17.04 Add to
0049400-0343-01SWITCH COVER-PTO£9.12 Add to
0059400-0321-01SWITCH£55.20 Add to
0069400-0322-01SWITCH COVER-12V£15.24 Add to
0079400-0283-01SWITCH£82.80 Add to
0089400-0280-08SWITCH COVER-SELECTOR VALVE£9.36 Add to
0101134-4129-01COVER£6.36 Add to
0111134-6097-02HOUR METER£90.78 Add to
0121135-2754-01IGNITION KEY SWITCH£138.60 Add to
0131135-2505-01REAR COVER£68.40 Add to
0159400-0320-01PILOT LAMP [RED]£10.05 Add to
0169400-0346-01PILOT LAMP [FLASHING RED]£14.52 Add to
0179400-0320-03PILOT LAMP [GREEN]£10.08 Add to
0189400-0345-01SWITCH [HAZARD]£75.60 Add to
0199400-0343-02SWITCH [HAZARD]£8.88 Add to
0209400-0336-01LIGHT CONTROL SWITCH£217.20 Add to
0219997-0416-16SCREW M6S M4 X 16£4.16 Add to
0229747-0421-02NUT£3.12 Add to
0239400-0340-01GROMMET£5.87 Add to
0241137-0817-01WIRING HARNESS£361.20 Add to
