CABIN (1)

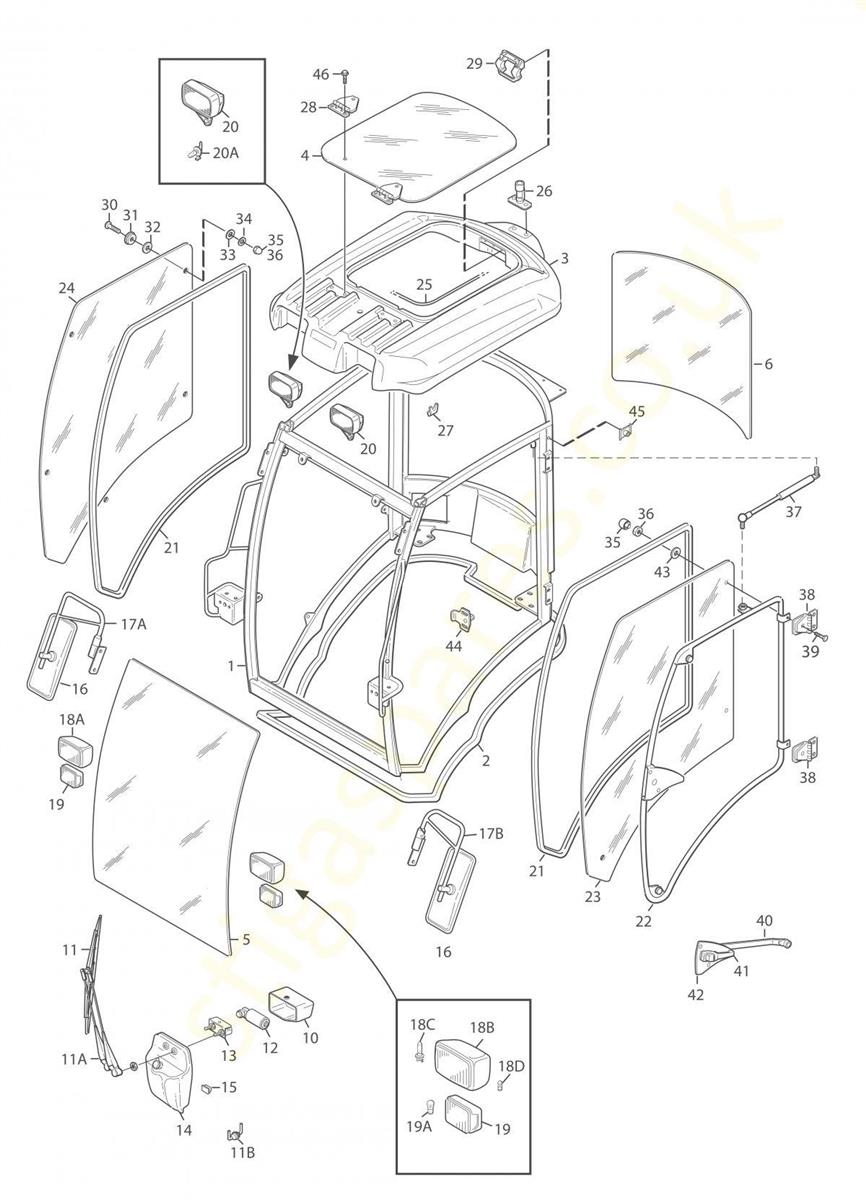

CABIN (1) assembly details for Stiga Stiga TITAN 740DCR 13-7462-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0734-01	CABIN ASSEMBLY	£11,557.93	Add to
002	1319-1189-01	Tätning Cabin support seal	N/A	POA
003	1319-1172-01	ROOF	£1,546.07	Add to
004	1319-1174-01	UPPER GLASS	£674.81	Add to
005	1319-1134-01	WIND SCREEN	£1,008.67	Add to
006	1319-1137-01	REAR GLASS	£1,853.54	Add to
010	1319-1168-01	Kåpa Cover	N/A	POA
011	1319-1152-01	WIND SCREEN WIPER BLADE	£135.19	Add to
012	1319-1150-01	WIND SCREEN WIPER MOTOR	£545.36	Add to
013	1319-1149-01	BRACKET-WIND SCREEN WIPER MOTOR	£620.31	Add to
014	1319-1190-01	WATER TANK	£225.12	Add to
015	083-504-01	Brytare Switch	N/A	POA
016	1319-1125-01	MIRROR	£129.74	Add to
019	1319-1100-01	DIRECTION LIGHT	£150.18	Add to
020	1319-1121-01	WORK LAMP	£156.99	Add to
021	1319-1142-01	RUBBER SEAL (METRE)	£37.08	Add to
022	1319-1180-01	DOOR FRAME	£668.00	Add to
023	1319-1135-01	DOOR GLASS L/H	£574.97	Add to
024	1319-1136-01	SIDE GLASS R/H	£804.27	Add to
025	1319-1191-01	Tätningslist Sealing strip	N/A	POA
026	1319-1127-01	SPACER	£7.63	Add to
027	1319-1176-01	Krokar Hooks	N/A	POA
028	1319-1173-01	Gångjärn Hinge	N/A	POA
029	1319-1175-01	HANDLE	£129.74	Add to
030	083-509-01	Screw	N/A	POA
031	1319-1158-01	PLATE	£9.07	Add to
032	1319-1160-01	RUBBER GASKET	£2.74	Add to
033	1319-1178-01	GASKET	£5.19	Add to
034	1134-4176-01	CLIP	£5.19	Add to
035	1319-1177-01	NUT COVER	£2.06	Add to
036	9739-0831-02	Nut	N/A	POA
037	1319-1132-01	GAS SPRING	£211.50	Add to
038	1319-1133-01	HINGE	£61.60	Add to
039	9924-0840-01	Screw	N/A	POA
040	1319-1148-01	DOOR LOCK L/H	£415.91	Add to
041	1319-1143-01	DOOR HANDLE W KEYS	£231.93	Add to
042	1319-1183-01	Packning Gasket	N/A	POA
043	1319-1182-01	RUBBER GASKET	£3.00	Add to
044	1319-1147-01	BOLT STRIKER	£45.26	Add to
045	1319-1181-01	Dörrfäste Door strap	N/A	POA
046	083-509-01	Screw	N/A	POA
11A	1319-1151-01	WIND SCREEN WIPER ARM	£272.82	Add to
17A	1319-1123-01	MIRROR ARM R/H	£170.61	Add to
17B	1319-1124-01	MIRROR ARM L/H	£170.61	Add to
18A	1319-1101-01	Head lamp-RH	N/A	POA
18B	1319-1102-01	Head lamp-LH	N/A	POA
