BODY WORK-FRONT

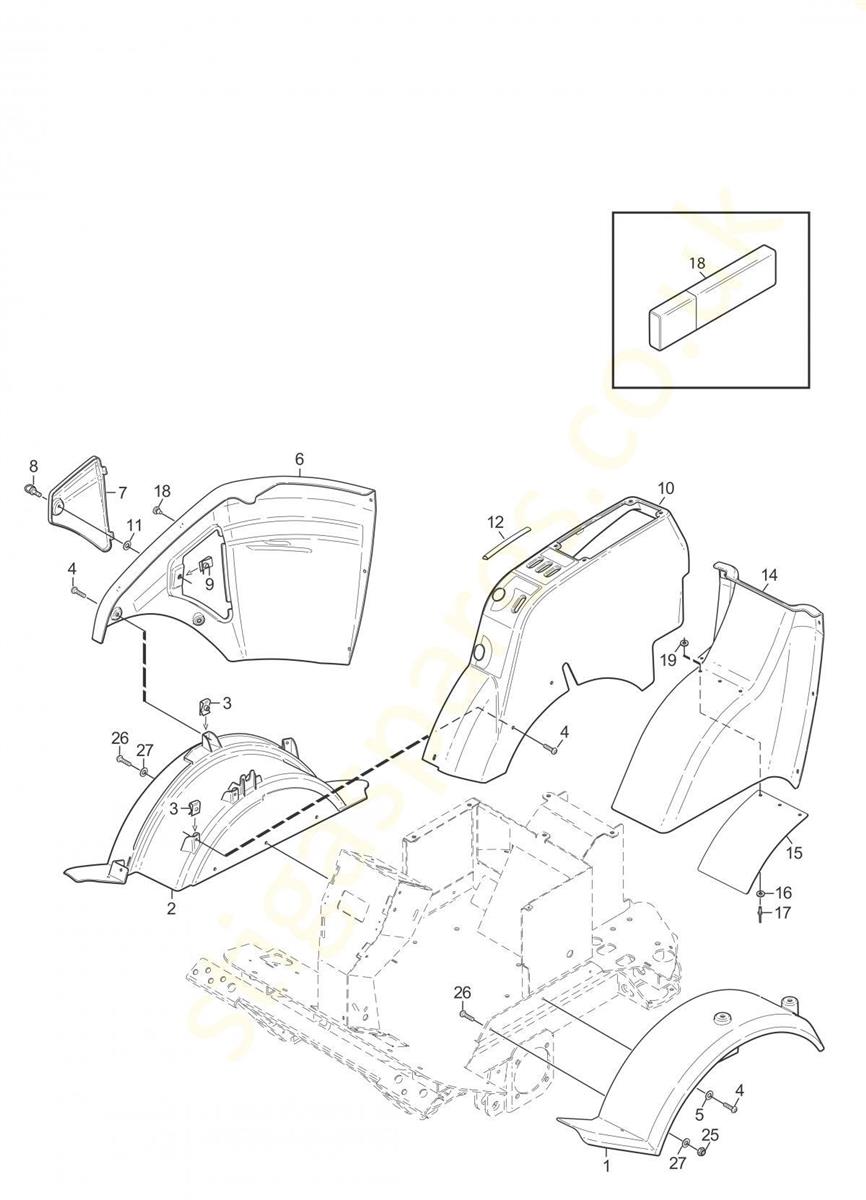

BODY WORK-FRONT assembly details for Stiga Stiga TITAN 740DCR 13-7462-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011135-3559-01FRONT FENDER LH [YELLOW]£541.20 Add to
0021135-3560-01FRONT FENDER RH [YELLOW]£68.40 Add to
0031134-4176-01CLIP£5.52 Add to
0049893-0616-16SCREW M6 x 16£3.12 Add to
005112523040/0WASHER M6 6.6 x 18 x 1.6£2.76 Add to
0061135-2502-01SIDE PANEL£69.02 Add to
0071135-2504-01INSPECTION COVER£32.40 Add to
0081137-0453-01FASTENER£30.00 Add to
0091137-0452-01CLIP ON£8.28 Add to
0101135-3565-04CONTROL PANEL£74.40 Add to
0111137-0454-01WASHER£2.76 Add to
012084-237-01SEALING STRIP 710610£8.40 Add to
013084-305-01RUBBER PLUG£4.16 Add to
0141135-2505-01REAR COVER£68.40 Add to
0151135-3495-01RUBBER CLOTH£26.40 Add to
0169699-0120-02WASHER 3.2 x 14 x 1.5£3.00 Add to
0179632-0516-00POP RIVET£3.12 Add to
0181137-0850-01WARNING TRIANGLE£50.94 Add to
024112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£2.76 Add to
0259997-0631-02NutN/A POA
0269959-0820-16SCREW M6SF M8 x 20 TL£2.76 Add to
0271134-4176-01CLIP£5.52 Add to
