STEERING

STEERING assembly details for Stiga Stiga TITAN 740D 13-7460-11 2016 model

Parts list

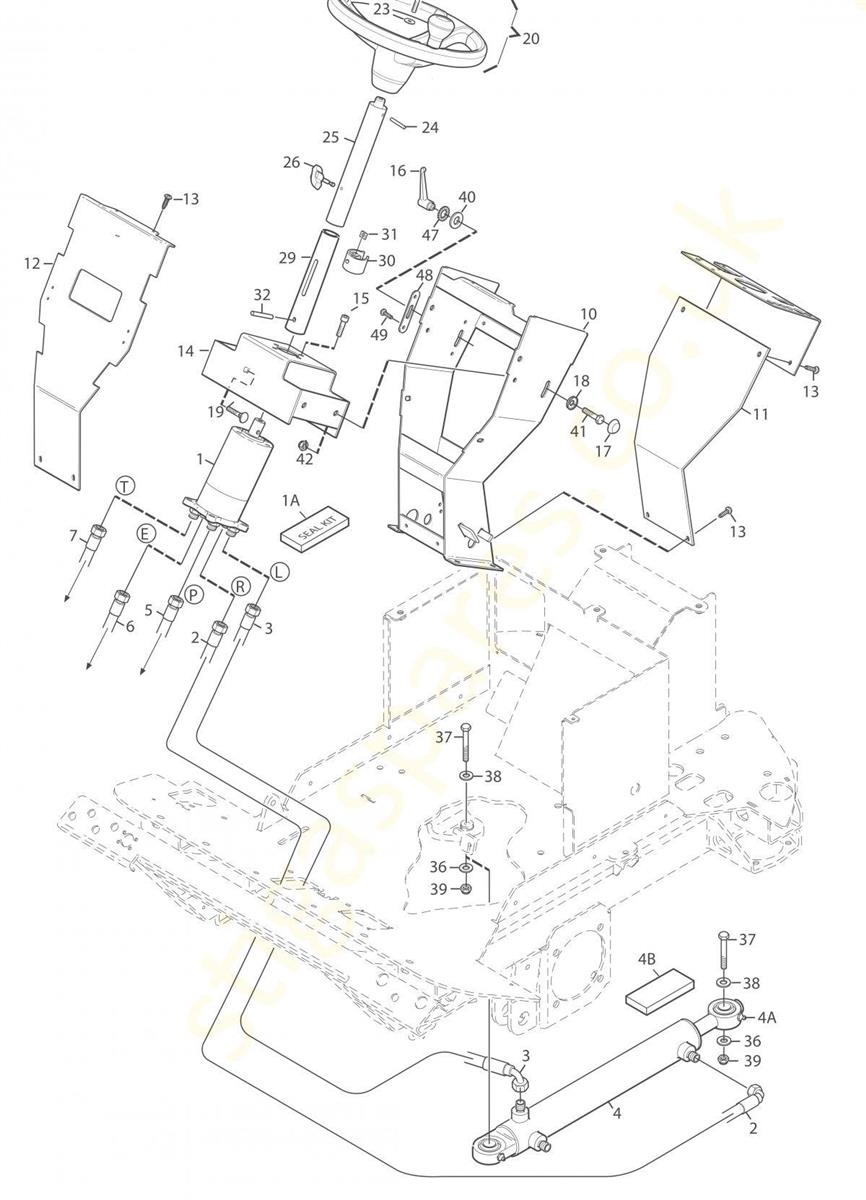

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-7214-01	STEERING BOOSTER	£1,090.44	Add to
002	1137-0185-13	HYDRAULIC HOSE 90° ¼"	£47.50	Add to
003	1137-0186-08	HYDRAULIC HOSE 45° ¼"	£57.72	Add to
004	1135-2808-01	STEERING CYLINDER	£579.42	Add to
005	1137-0195-03	HYDRAULIC HOSE	£116.11	Add to
006	1137-0196-05	HYDRAULIC HOSE L=1350mm 45° 3/8"	£53.75	Add to
007	1137-0196-02	Hydraulic tube	N/A	POA
010	1137-0667-01	Styrkonsol bracket	N/A	POA
011	1134-7198-01	REAR PLATE-STEERING CONSOLE	£54.79	Add to
012	1137-0670-01	FRONT PLATE	£98.29	Add to
013	9893-0616-16	SCREW M6 x 16	£2.47	Add to
014	1134-6995-01	BRACKET-STEERING SERVO	£124.29	Add to
015	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
016	1134-7123-01	LOCK LEVER-ADJUSTABLE	£35.71	Add to
017	9403-0053-01	COVER CAP	£5.66	Add to
018	9400-0052-01	Hattbricka Cap ring	N/A	POA
019	9897-0820-16	SCREW M8 x 20	£2.32	Add to
01A	1139-2081-01	SEAL KIT	£197.87	Add to
020	337961200/0	STEERING WHEEL [BLACK]	£287.40	Add to
021	337580550/0	STEERING WHEEL PLATE	£8.75	Add to
022	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
023	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
024	112620299/0............................	Locating pin	N/A	POA
025	387520101/0	Rattstång column	N/A	POA
026	337394201/0	WING NUT	£13.64	Add to
029	1134-5216-01	INNER STEERING TUBE	£87.50	Add to
030	1134-5177-01	SLIDE COLLAR	£13.64	Add to
031	9710-0631-12	SQUARE NUT	£3.55	Add to
032	9595-0258-01............................	Locating pin	N/A	POA
036	9690-0003-02	Bricka Washer	N/A	POA
037	112691800/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
038	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
039	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
040	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
041	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
042	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
047	081-470-01	LOCK WASHER 5/16" - NLA	£2.06	Add to
048	1135-2514-01	WEAR PLATE	£28.89	Add to
049	9893-0616-16	SCREW M6 x 16	£2.47	Add to
04A	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
04B	1139-2083-01	SEAL KIT	£129.74	Add to
052	9893-0616-16	SCREW M6 x 16	£2.47	Add to
