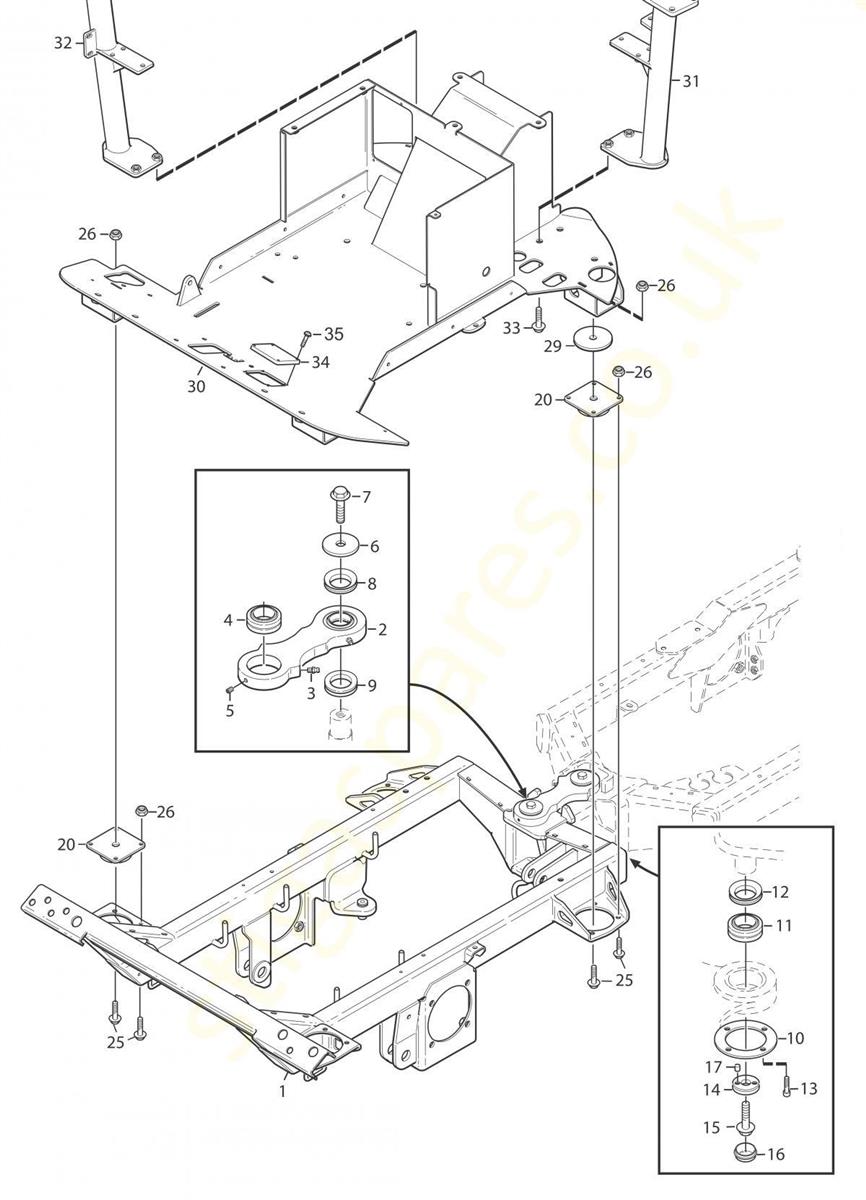

RAME-FRONT assembly details for Stiga Stiga TITAN 740D 13-7460-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011137-0459-01FRONT FRAME£2,735.60 Add to
0021135-3018-01LINK ASSEMBLY£375.02 Add to
003112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
0049547-0006-01SPHERICAL BEARING£34.35 Add to
0059907-0610-16SCREW£3.55 Add to
0061135-4008-01WASHER V-RING£11.18 Add to
0079959-1025-16SCREW M6SF M10 x 25 TL£3.00 Add to
0089404-0204-01SEALING RING£12.55 Add to
0099404-0203-01SEALING RING£5.19 Add to
0101135-4009-01LOCK WASHER£71.14 Add to
0119547-0007-01SPHERICAL BEARING£61.60 Add to
0129404-0202-01SEALING RING£4.52 Add to
013112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
0141137-1116-01WASHER£34.35 Add to
0159991-1024-19SCREW M10 x 24£2.59 Add to
0161135-4007-01COVER ARTICULATION JOINT£13.77 Add to
0179591-0016-01DOWEL PIN£2.47 Add to
0201137-0605-01FLOOR PLATE SPACER£73.91 Add to
0239959-1025-16SCREW M6SF M10 x 25 TL£3.00 Add to
0249739-1031-22NUT M10£2.32 Add to
025081-384-01ScrewN/A POA
026112295801/0HEXAGON NUT M16£2.06 Add to
0301137-0548-01FLOOR PLATE£1,737.71 Add to
0311137-0543-01ROPS ATTACHMENT ARM L/H£379.49 Add to
0321137-0544-01ROPS ATTACHMENT ARM R/H£422.72 Add to
0339959-1225-16SCREW M6SF 8.8£2.06 Add to
0341135-3604-01Aim windowN/A POA
035112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
