IMPLEMENT CONTROL

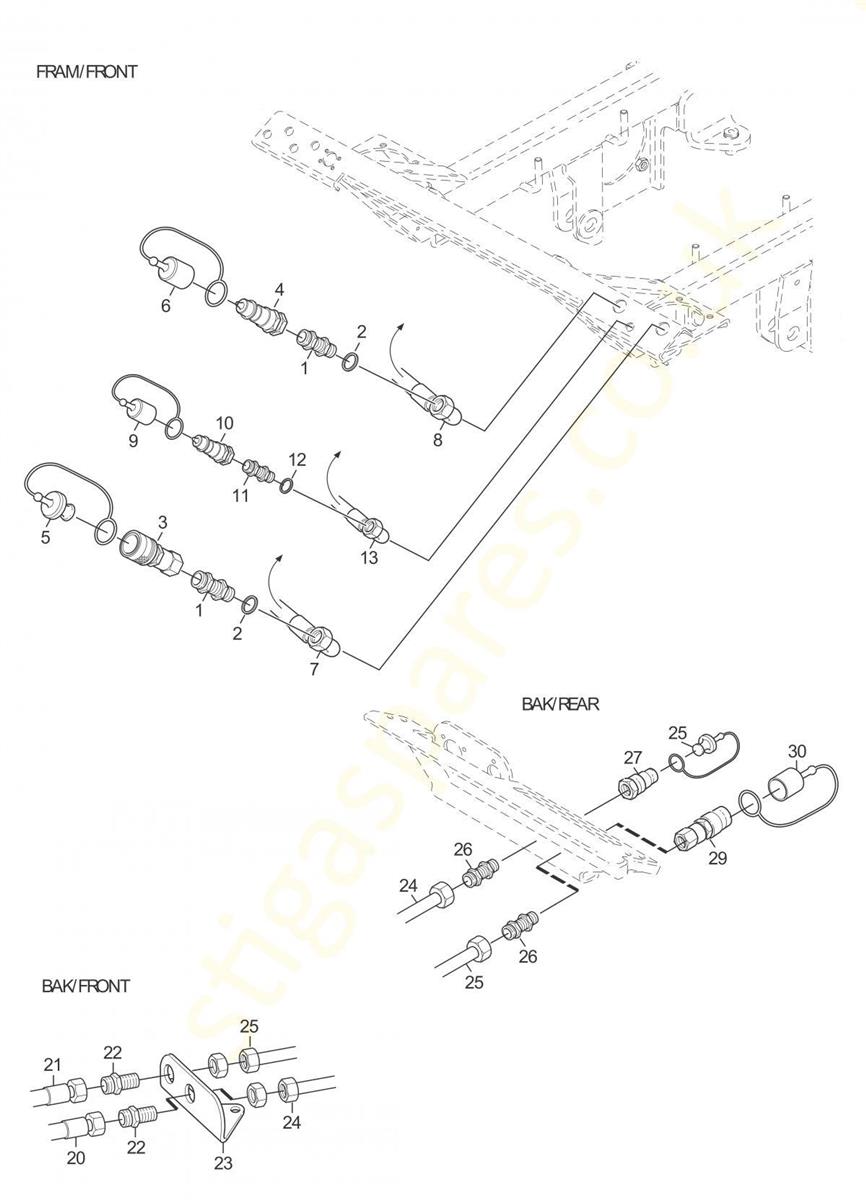

IMPLEMENT CONTROL assembly details for Stiga Stiga TITAN 740D 13-7460-11 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-7180-01	HYDRAULIC COUPLING 1/2"	£21.59	Add to
002	1134-4948-03	SEAL WASHER 1/2"	£3.83	Add to
003	1134-7182-01	QUICK CONNECTOR-FEMALE 1/2"	£46.61	Add to
004	1134-7181-01	QUICK CONNECTOR-MALE 1/2"	£19.09	Add to
005	1134-7184-01	PLASTIC PLUG 1/2"	£5.73	Add to
006	1134-7185-01	PLASTIC CAP 1/2"	£6.01	Add to
007	1137-0218-14	HYDRAULIC HOSE L=2600mm 90° 1/2"	£121.45	Add to
008	1137-0218-13	HYDRAULIC HOSE L=2540mm 90° 1/2"	£121.45	Add to
009	1134-7175-01	PLASTIC CAP	£8.87	Add to
010	1134-6042-01	QUICK COUPLING-MALE 1/4"	£32.08	Add to
011	1134-7296-01	HYDRAULIC COUPLING 1/4"	£19.22	Add to
012	1134-4948-01	SEAL WASHER 1/4"	£2.59	Add to
013	1137-0232-03	HYDRAULIC HOSE L=3050mm 1/4" 90°	£73.49	Add to
020	1137-0631-01	HYDRAULIC HOSE L=1595mm 1/4"	£71.58	Add to
021	1137-0184-06	HYDRAULIC HOSE 1/4"	£59.51	Add to
022	1137-0774-01	HYDRAULIC COUPLING	£6.85	Add to
023	1137-0562-01	HYDRAULIC TUBE BRACKET	£24.86	Add to
024	1137-0595-01	HYDRAULIC HOSE 9/16"	£55.82	Add to
025	1137-0596-01	HYDRAULIC HOSE 9/16"	£55.82	Add to
026	1137-0773-01	HYDRAULIC COUPLING 9/16"	£14.13	Add to
027	1134-6042-01	QUICK COUPLING-MALE 1/4"	£32.08	Add to
028	1134-7175-01	PLASTIC CAP	£8.87	Add to
029	1135-2498-01	KNOB	£7.78	Add to
030	1134-7173-01	PLASTIC PLUG 1/4"	£13.95	Add to
