HYDRAULIC VALVE

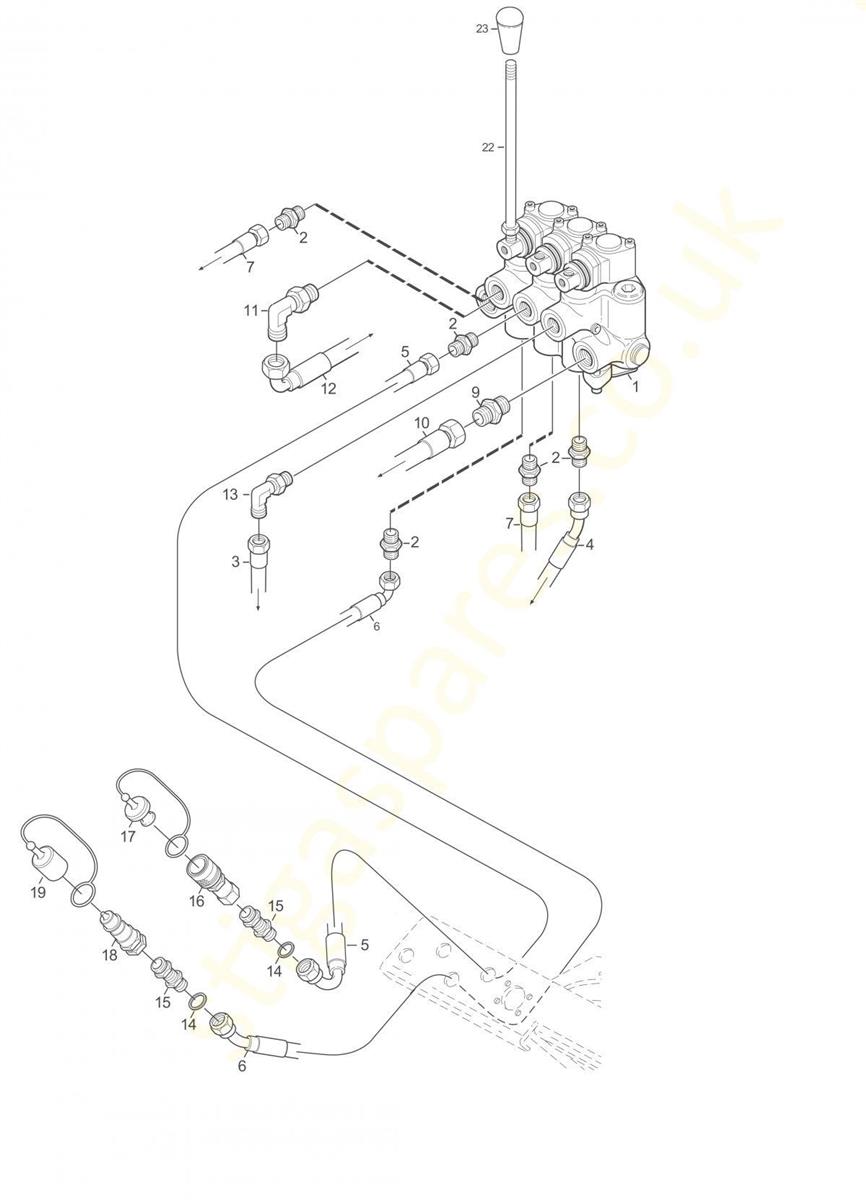

HYDRAULIC VALVE assembly details for Stiga Stiga TITAN 740D 13-7460-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011137-0641-01HAND OPERATED VALVE£1,207.20 Add to
0021134-7165-01HYDRAULIC CONNECTOR£8.52 Add to
0031137-0195-15HYDRAULIC HOSE L=860mm 90° 3/8"£36.89 Add to
0041137-0196-09Hydraulic tubeN/A POA
0051137-0186-06HYDRAULIC HOSE L=815mm 45° ¼"£36.44 Add to
0061137-0187-04HYDRAULIC HOSE L=785mm 90°/45° 1/4"£43.31 Add to
0071137-0185-20HYDRAULIC HOSE 90° ¼"£30.70 Add to
0091134-7156-01HYDRAULIC COUPLING£10.15 Add to
0101137-0196-05HYDRAULIC HOSE L=1350mm 45° 3/8"£48.29 Add to
0111134-7073-01HYDRAULIC COUPLING 90°£31.20 Add to
0121137-0195-15HYDRAULIC HOSE L=860mm 90° 3/8"£36.89 Add to
0131135-2906-01HYDRAULIC CONNECTION 90°£45.93 Add to
0141134-4948-01SEAL WASHER 1/4"£3.24 Add to
0151134-7296-01HYDRAULIC COUPLING 1/4"£17.88 Add to
0161135-2498-01KNOB£7.80 Add to
0171134-7173-01PLASTIC PLUG 1/4"£13.24 Add to
0181134-6042-01QUICK COUPLING-MALE 1/4"£27.17 Add to
0191134-7175-01PLASTIC CAP£8.76 Add to
