HAND CONTROLS

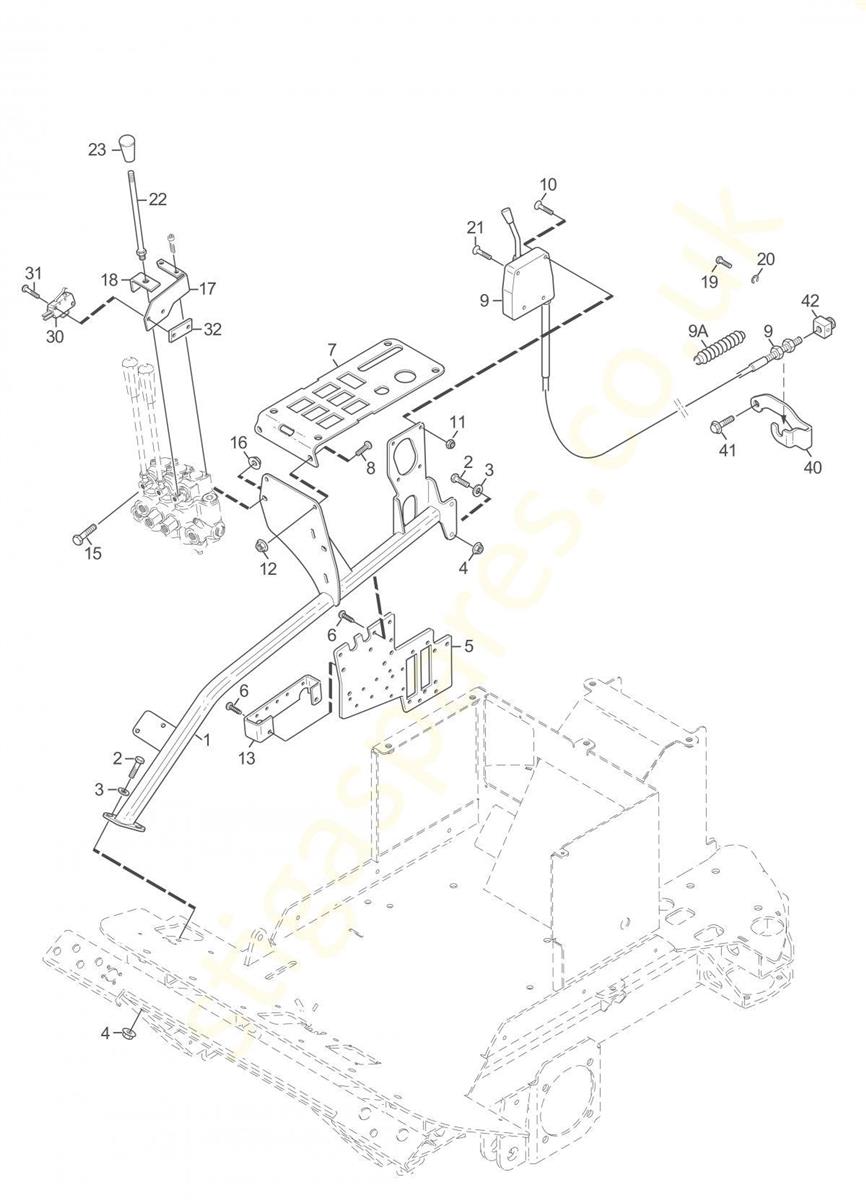

HAND CONTROLS assembly details for Stiga Stiga TITAN 740D 13-7460-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011135-2577-01CONTROL ATTACHMENT£313.24 Add to
0029959-0820-16SCREW M6SF M8 x 20 TL£2.76 Add to
0031134-4176-01CLIP£5.52 Add to
004112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.76 Add to
0051135-3614-01COLLECTING PLATE£90.00 Add to
0069893-0616-16SCREW M6 x 16£3.12 Add to
0071137-0698-01CONTROL PANEL (OBSOLETE)N/A
0089959-0616-16SCREW M6SF M6 x 16£2.76 Add to
0091134-7257-04THROTTLE CABLE ASSEMBLY£200.97 Add to
0109950-0530-16SCREW£4.16 Add to
011112154330/0LOW SELF-LOCKING NUT M5 UNI7474 ACC.6S£2.76 Add to
0129747-0631-01NUT (OBSOLETE)N/A
0131135-3616-01RELAY BRACKET (OBSOLETE)N/A
015112689515/0HEX-HEAD SCREW M6 x 45£2.76 Add to
016112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.76 Add to
0171134-7474-01SWITCH BRACKET£33.11 Add to
0181135-3127-01SWITCH ARM£8.11 Add to
0199997-0416-16SCREW M6S M4 X 16£4.16 Add to
0209652-0007-04CIRCLIP£3.00 Add to
0219946-0525-16SCREW M5 x 25£3.12 Add to
0221135-2497-01LEVER£16.44 Add to
0231135-2498-01KNOB£7.80 Add to
0309400-0360-01MICRO SWITCH£8.52 Add to
0319840-7716-16SCREW£3.00 Add to
0401137-0563-01THROTTLE CABLE BRACKET£14.23 Add to
0419959-0616-16SCREW M6SF M6 x 16£2.76 Add to
09A1135-3948-01RUBBER SLEEVE£14.28 Add to
