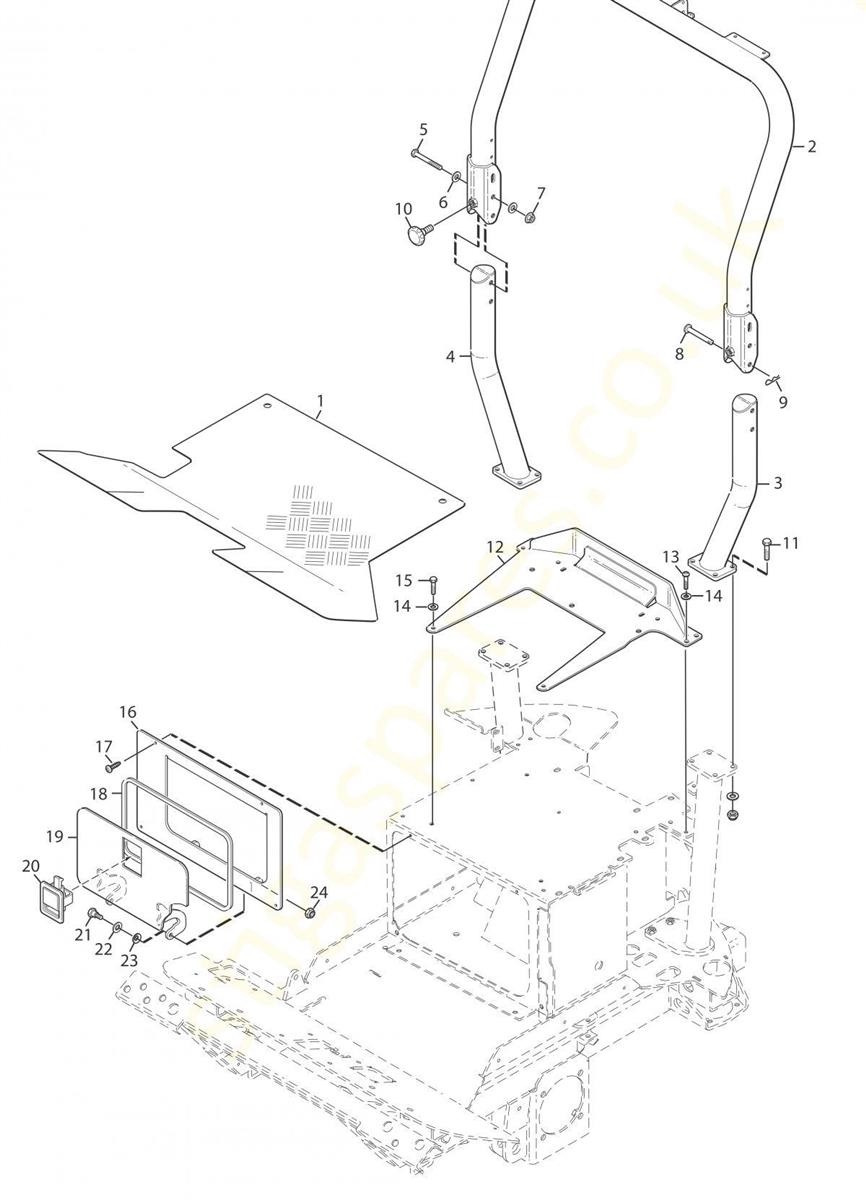

FRAME-ROPS assembly details for Stiga Stiga TITAN 740D 13-7460-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011135-2527-02FLOOR MAT£100.44 Add to
0021137-0583-01UPPER TUBE-ROPS£920.09 Add to
0031137-0586-01BRACKET L/H-ROPS£381.83 Add to
0041137-0585-01BRACKET R/H-ROPS£381.83 Add to
0059997-1290-12SCREW M6S£3.64 Add to
006081-670-01WASHER (OBSOLETE)N/A
007112156603/0SELF-LOCKING NUT M12£2.06 Add to
0081134-7565-01CLEVIS PIN£62.97 Add to
0099598-0002-02SPRING PIN 2.5mm L=47mm£2.06 Add to
0101134-7561-01LOCKING KNOB£12.14 Add to
0119939-1030-16SCREW£2.06 Add to
0121137-0696-01REINFORCEMENT PLATE£88.85 Add to
0139959-1025-16SCREW M6SF M10 x 25 TL£3.00 Add to
0149699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
0159997-1050-16SCREW M6S M10 x 50£2.87 Add to
0161137-0731-01FRAME (OBSOLETE)N/A
0179840-8009-19ScrewN/A POA
018084-31-01Seal strip Q per meterN/A POA
0191137-0727-01SHUTTER£99.15 Add to
0201137-0730-01DOOR LATCH£72.57 Add to
0211134-0240-01SCREW£9.82 Add to
0221134-4242-01SPACER WASHER£4.78 Add to
0239665-0002-00BOWL WASHER£2.61 Add to
024112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
