ENGINE

ENGINE assembly details for Stiga Stiga TITAN 740D 13-7460-11 2016 model

Parts list

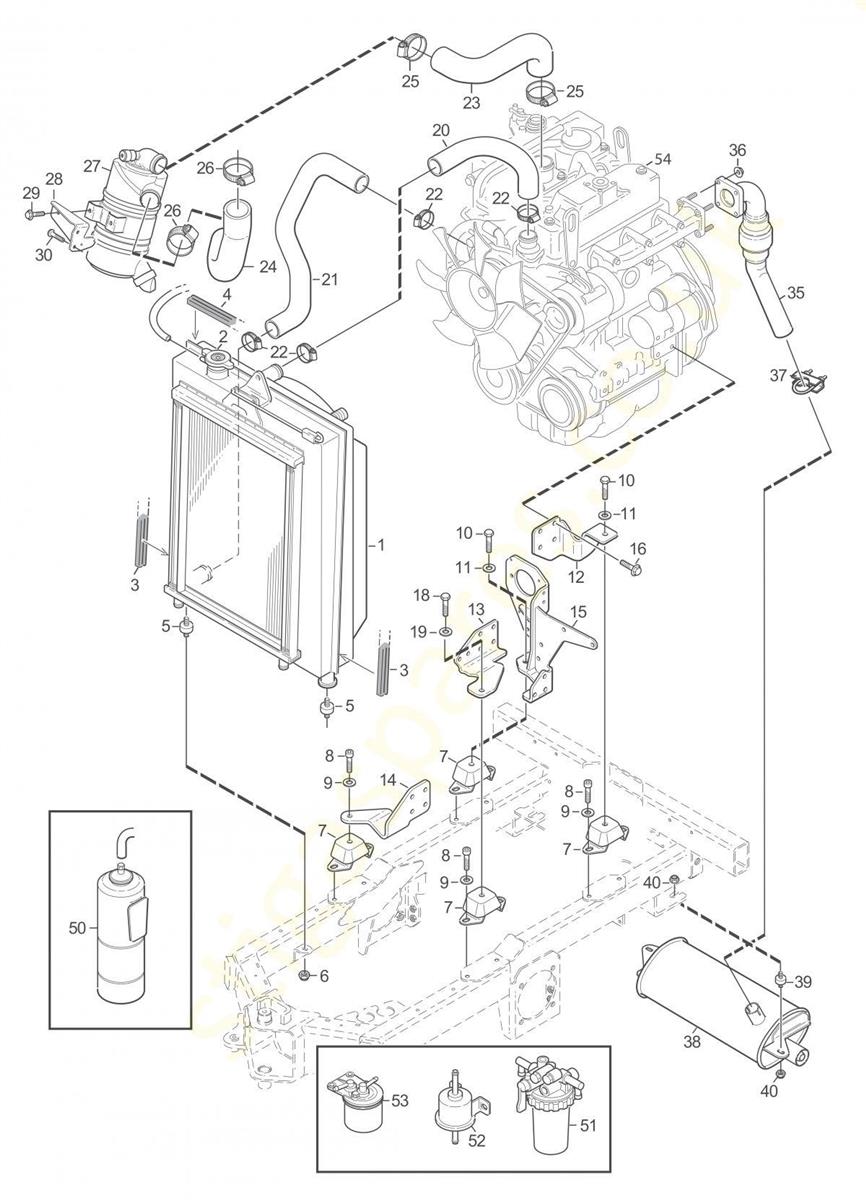

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011137-0690-01RADIATOR£1,234.93 Add to
0021139-2122-01RADIATOR CAP£51.56 Add to
003084-312-01SEALING STRIP 700140£19.33 Add to
004084-239-01SEALING STRIP 700180£20.24 Add to
0059550-0008-03VIBRATION DAMPER£20.86 Add to
0069747-0831-22NUT (OBSOLETE)N/A
007084-362-01ENGINE SUPPORT RUBBER£255.02 Add to
0089939-1020-16SCREW£2.84 Add to
009112521360/0WASHER M10 10.5 X 20 X 2£2.84 Add to
0109997-1230-16SCREW M6S M12 x 30£3.40 Add to
011122671652/0WASHER 12.3 x 20 x 2£3.53 Add to
0121137-0512-01ENGINE BRACKET-BLACK£83.85 Add to
0131137-0514-01ENGINE BRACKET-BLACK£102.56 Add to
0141137-0513-01ENGINE BRACKET-BLACK£83.85 Add to
0151137-0517-01HST-PUMP BRACKET£458.77 Add to
0169959-1225-16SCREW M6SF 8.8£4.23 Add to
0201137-0565-01RADIATOR HOSE£55.72 Add to
0211137-0566-01RADIATOR HOSE£69.16 Add to
022085-520-01HOSE CLAMP (OBSOLETE)N/A
0231137-0567-01AIR INTAKE HOSE£47.25 Add to
0241134-7460-01HOSE£48.79 Add to
025087-510-01HOSE CLAMP 44-56£8.45 Add to
026085-018-01HOSE CLAMP 50-65 ABA£8.12 Add to
0271135-3961-01AIR FILTER ASSEMBLY£162.16 Add to
0281137-0558-01AIR FILTER BRACKET£67.64 Add to
029112800815/0SCREW TE FL M8 x 16£2.84 Add to
030112792610/0HEX-HEAD SCREW M8 x 16£1.65 Add to
031112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.84 Add to
0351137-0578-01EXHAUST PIPE£195.43 Add to
0361137-0155-01SPACER£5.34 Add to
037084-351-01TUBE CLAMP£10.40 Add to
0381137-0576-01MUFFLER£261.89 Add to
0399550-0008-03VIBRATION DAMPER£20.86 Add to
0401137-0155-01SPACER£5.34 Add to
0501135-2751-01EXPANSION TANK£66.53 Add to
0511135-2818-01WATER SEPARATOR£245.32 Add to
0521135-2745-01FUEL FEED PUMP£389.47 Add to
0531139-2510-01ASSY FUEL FILTER (OBSOLETE)N/A
0549500-5032-09MOTOR ENGINE (OBSOLETE)N/A
27A1139-2507-01INNER AIR FILTER£174.64 Add to
27B1139-2663-01BREAK DRUM (OBSOLETE)N/A
