ELECTRICAL SYSTEM 2

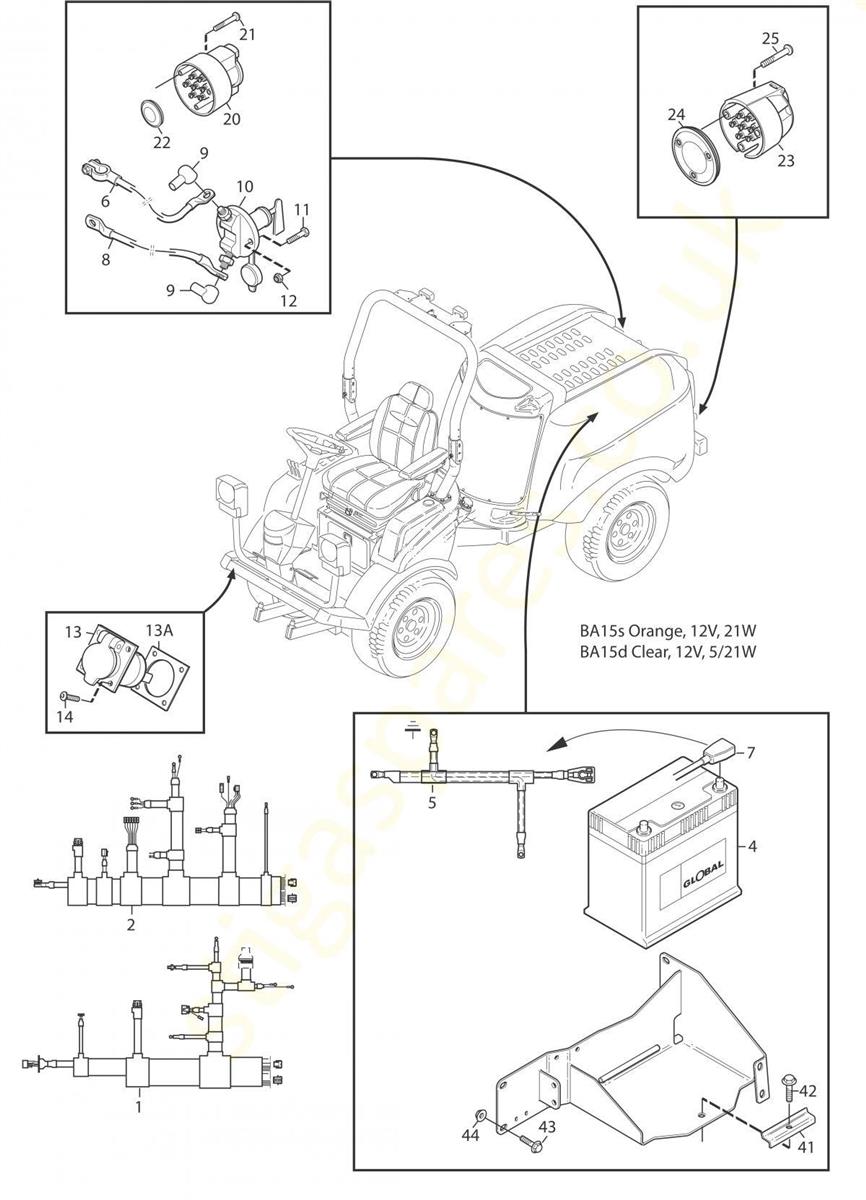

ELECTRICAL SYSTEM 2 assembly details for Stiga Stiga TITAN 740D 13-7460-11 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0661-01	REAR HARNESS L/H	£497.66	Add to
002	1137-0662-01	REAR HARNESS R/H	£653.67	Add to
004	1134-7203-01	BATTERY (OBSOLETE)	N/A
005	1137-0663-01	BATTERY HARNESS (+)	£183.07	Add to
006	1134-7237-06	CABLE (OBSOLETE)	N/A
007	118564864/1	RED RUBBER TERMINAL COVER	£6.01	Add to
009	118564861/1	RED RUBBER TERMINAL COVER	£7.90	Add to
010	9400-0316-01	MAIN SWITCH	£76.59	Add to
011	9959-0616-16	SCREW M6SF M6 X 16	£2.06	Add to
012	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
013	1134-7535-01	FEMALE TERMINAL	£7.73	Add to
014	9840-7716-16	SCREW	£2.32	Add to
020	9400-0347-01	SOCKET 7-POLE	£28.90	Add to
021	9947-0540-19	SCREW	£2.06	Add to
022	9403-0056-01	MEMBRANE GROMMET	£5.66	Add to
023	084-036-01	PLUG CONTACT	£72.73	Add to
024	084-464-01	PASS WIRE (OBSOLETE)	N/A
025	9946-0525-16	SCREW M5 x 25	£2.47	Add to
040	1137-0509-01	BATTERY HOLDER	£177.43	Add to
041	1134-6943-01	BATTERY CLAMP	£18.95	Add to
042	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
043	112800815/0	SCREW TE FL M8 x 16	£2.06	Add to
044	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
13A	1134-4052-01	SUPPORT WASHER	£9.28	Add to
