BODY WORK-REAR

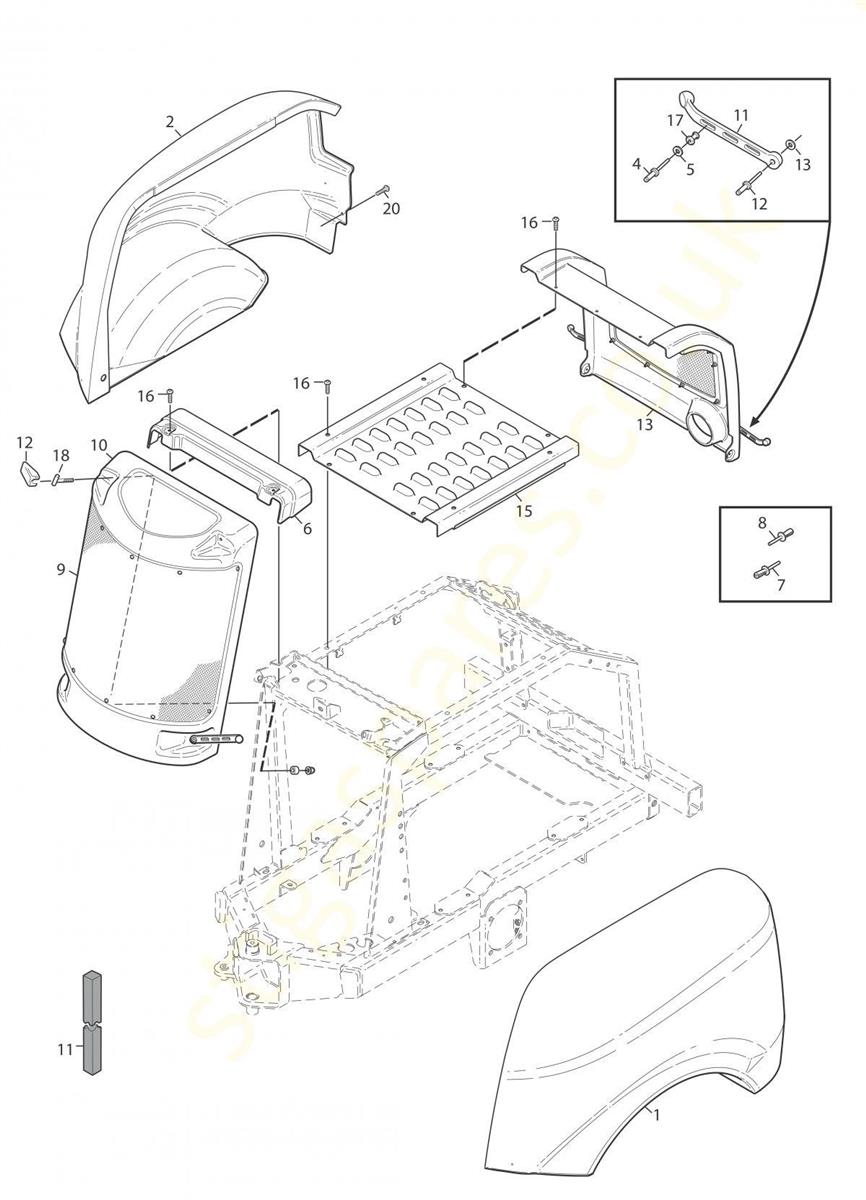

BODY WORK-REAR assembly details for Stiga Stiga TITAN 740D 13-7460-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011137-0715-02HOOD COVER L/H£659.74 Add to
0021137-0716-02HOOD COVER R/H£659.74 Add to
0031134-2143-01RUBBER STRAP£10.05 Add to
0049632-0513-00POP RIVET 3.2 x 20£2.84 Add to
0059699-0120-02WASHER 3.2 x 14 x 1.5£3.33 Add to
0061137-0645-01UPPER HOOD£82.47 Add to
007085-044-01BLIND RIVET£7.97 Add to
0089699-0002-02WASHER£4.16 Add to
0091137-0643-01FRONT NET£259.18 Add to
0101137-0644-01FRONT HOOD£493.42 Add to
011084-237-01SEALING STRIP 710610£9.49 Add to
0121134-4904-01HOOD LOCK KIT£18.85 Add to
0131137-0647-01REAR HOOD£479.56 Add to
0141137-0648-01REAR NET£163.55 Add to
0151137-0659-01HOOD COVER£195.43 Add to
0169893-0616-16SCREW (M6 X 16)£3.40 Add to
0179405-0029-00KNOB£5.54 Add to
0181137-1007-01T SCREW (OBSOLETE)N/A
