PTO AND IMPLEMENT CONTROL

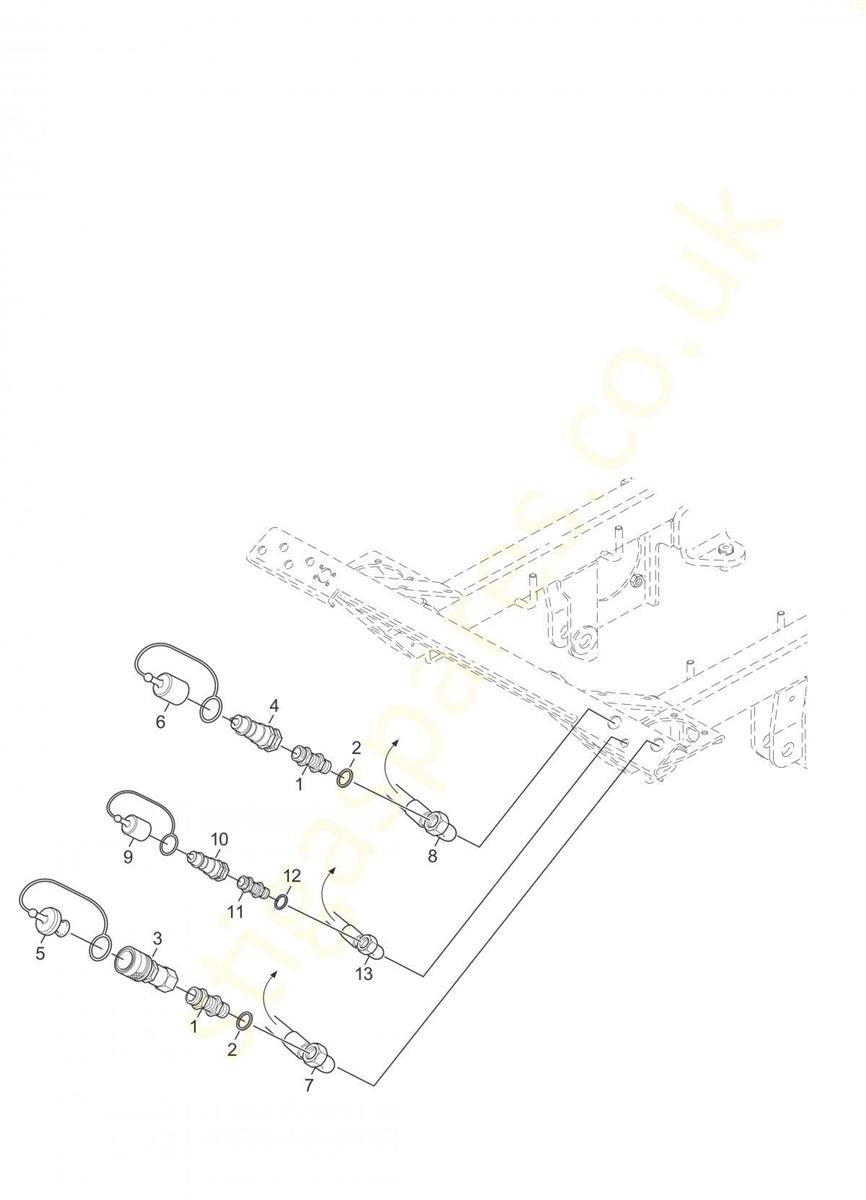

PTO AND IMPLEMENT CONTROL assembly details for Stiga Stiga TITAN 540D 13-7454-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-7180-01HYDRAULIC COUPLING 1/2"£19.96 Add to
0021134-4948-03SEAL WASHER 1/2"£4.32 Add to
0031134-7182-01QUICK CONNECTOR-FEMALE 1/2"£42.00 Add to
0041134-7181-01QUICK CONNECTOR-MALE 1/2"£17.76 Add to
0051134-7184-01PLASTIC PLUG 1/2"£6.00 Add to
0061134-7185-01PLASTIC CAP 1/2"£6.24 Add to
0071137-0218-14HYDRAULIC HOSE L=2600mm 90° 1/2"£107.90 Add to
0081137-0218-13HYDRAULIC HOSE L=2540mm 90° 1/2"£107.90 Add to
0091134-7175-01PLASTIC CAP£8.76 Add to
0101134-6042-01QUICK COUPLING-MALE 1/4"£27.17 Add to
0111134-7296-01HYDRAULIC COUPLING 1/4"£17.88 Add to
0121134-4948-01SEAL WASHER 1/4"£3.24 Add to
0131137-0232-03HYDRAULIC HOSE L=3050mm 1/4" 90°£65.67 Add to
