KANZAKI WHEEL ENGINE KWM 13S-186H MOTOR

KANZAKI WHEEL ENGINE KWM 13S-186H MOTOR assembly details for Stiga Stiga TITAN 540D 13-7454-11 2016 model

Parts list

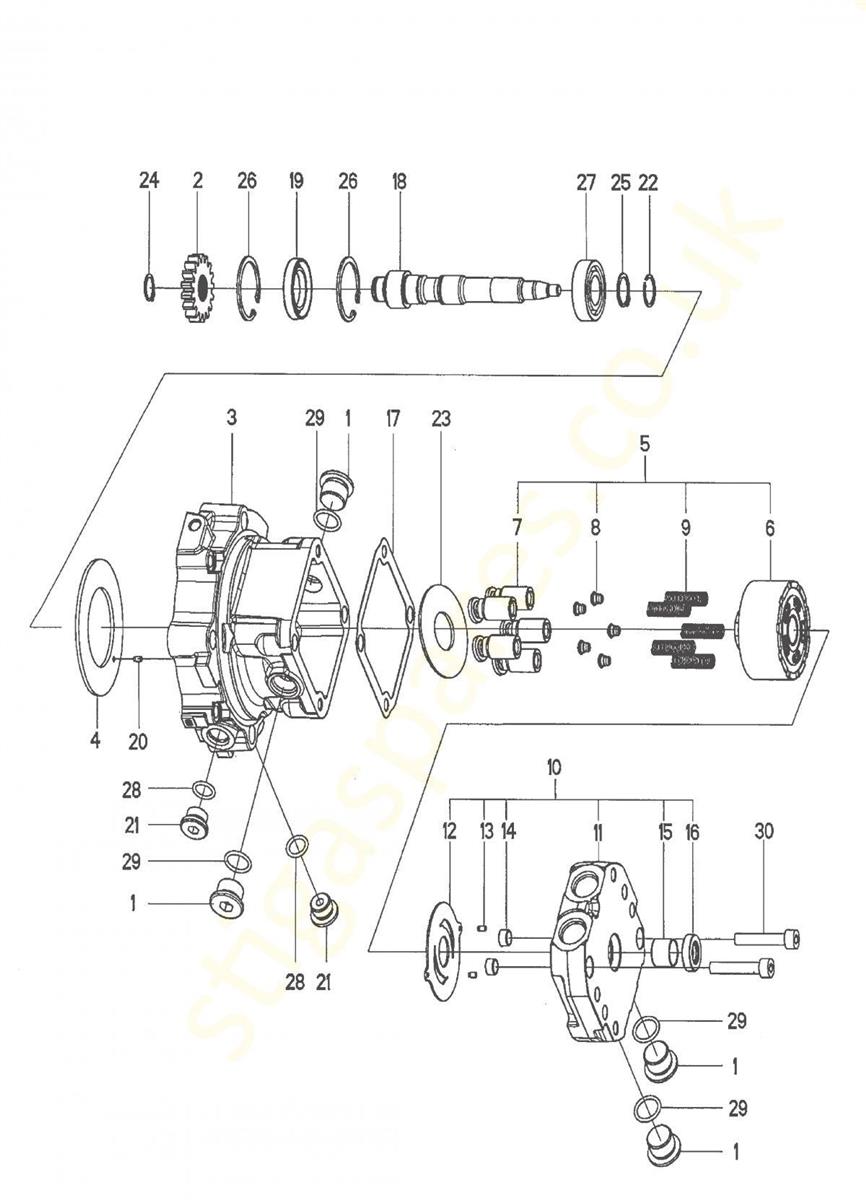

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011139-1569-01PLUG£31.26 Add to
0021139-1625-01SUN GEAR£62.01 Add to
0031139-1702-01HOUSING£635.25 Add to
0041139-1627-01PLATE£66.11 Add to
0051139-1628-01PLUNGER BLOCK ASSEMBLY£1,458.36 Add to
0101139-1703-01CENTER CASE CMP (OBSOLETE)N/A
0121139-1630-01VALVE PLATE£244.45 Add to
0131139-1058-01KNOCK PIN (OBSOLETE)N/A
0141139-1166-01PIN£4.94 Add to
0161139-1614-01SEAL£56.15 Add to
0171135-3981-01GASKET WHEEL MOTOR£16.22 Add to
0181139-1632-01SHAFT£309.30 Add to
0191139-1633-01OIL SEAL£149.23 Add to
0201139-1058-01KNOCK PIN (OBSOLETE)N/A
0211139-1572-01PLUG£14.74 Add to
0221139-1615-01CIRCLIP£3.64 Add to
0231139-1616-01THRUST PLATE£122.47 Add to
0241139-1278-01RING (OBSOLETE)N/A
0251139-1678-01CIRCLIP£4.18 Add to
0261139-1444-01CIRCLIP£7.57 Add to
0271139-0233-01BALL BEARING (OBSOLETE)N/A
0281139-1115-01O RING£1.79 Add to
0291139-1116-01O RING£2.87 Add to
0301139-1716-01BOLT 8 x 45£10.35 Add to
