KANZAKI WHEEL ENGINE KWM 13S-186H AXLE ASSY

KANZAKI WHEEL ENGINE KWM 13S-186H AXLE ASSY assembly details for Stiga Stiga TITAN 540D 13-7454-11 2016 model

Parts list

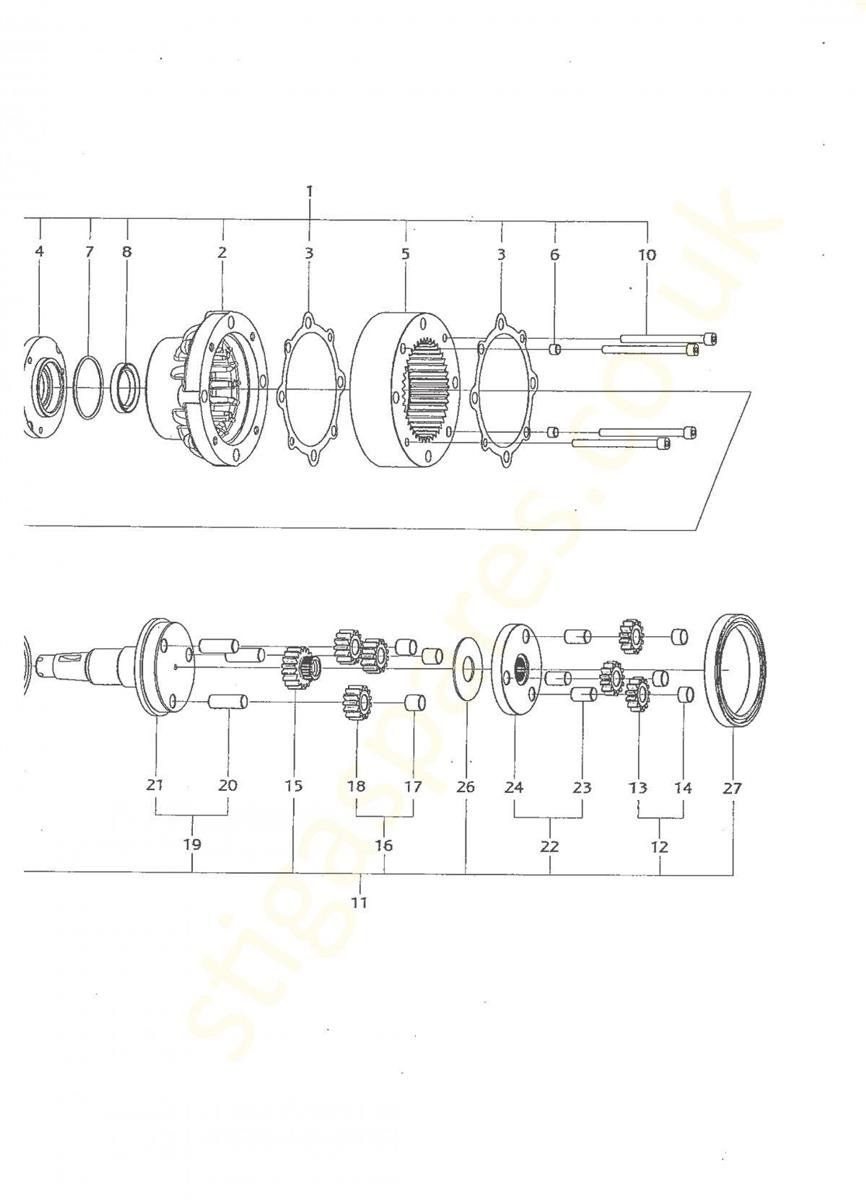

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011139-1634-01AXLE ASSEMBLY£1,647.44 Add to
0021139-1635-01AXLE CASE£335.02 Add to
0031139-1636-01GASKET£30.26 Add to
0041139-1637-01SEAL COVER (OBSOLETE)N/A
0051139-1697-01INTERNAL GEAR£1,175.64 Add to
0061139-1166-01PIN£4.94 Add to
0071139-1682-01SEAL RING£4.10 Add to
0081139-1684-01SEAL£21.26 Add to
0091139-1688-01BOLT£3.64 Add to
0101139-1691-01BOLT£10.14 Add to
0111139-1699-01AXLE SHAFT ASSEMBLY£2,333.65 Add to
0121139-1645-01GEAR 1ST ASSEMBLY£223.51 Add to
0151139-1640-01SUN GEAR 2ND£137.74 Add to
0161139-1701-01GEAR 2ND ASSEMBLY£403.65 Add to
0191139-1700-01SHAFT ASSEMBLY£1,046.99 Add to
0221139-1644-01CARRIER ASSEMBLY£386.49 Add to
0251139-1675-01BALL BEARING£120.59 Add to
0261139-1641-01PLATE£29.06 Add to
0271139-1642-01BEARING£944.04 Add to
