KANZAKI HYDRAULIC PUMP KPS-23ALPH CHARGE PUMP-CENT CASE

KANZAKI HYDRAULIC PUMP KPS-23ALPH CHARGE PUMP-CENT CASE assembly details for Stiga Stiga TITAN 540D 13-7454-11 2016 model

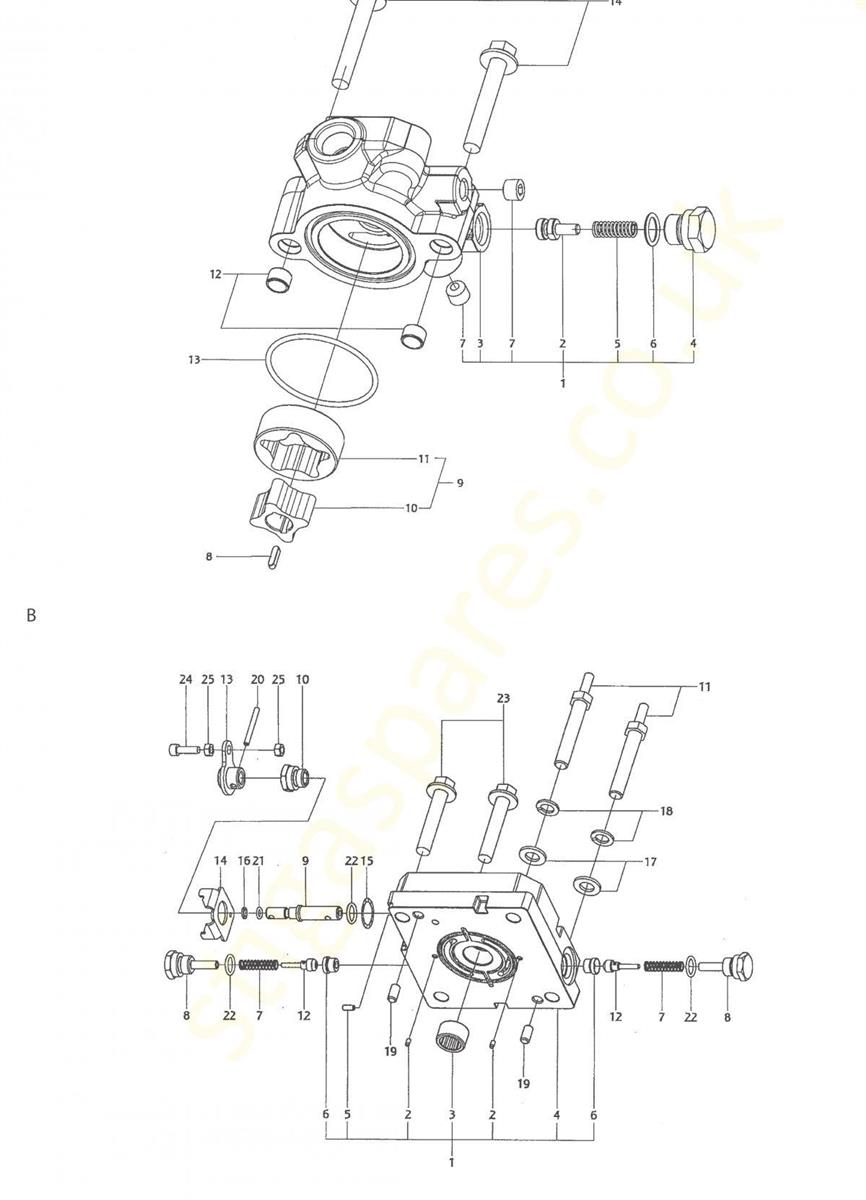

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
A01	1139-1709-01	PUMP BODY A CMP	£441.82	Add to
A02	1139-1571-01	RELIEF VALVE	£21.72	Add to
A03	1139-1710-01	PUMP BODY A	£357.16	Add to
A04	1139-1546-01	PLUG	£35.57	Add to
A05	1139-1570-01	SPRING (OBSOLETE)	N/A
A06	1139-1168-01	O RING	£2.87	Add to
A07	1139-1107-01	PLUG	£6.94	Add to
A08	1139-1693-01	KEY	£9.67	Add to
A09	1139-1694-01	ROTOR SET (6 cc/rev)	£144.95	Add to
A12	1139-1166-01	PIN	£4.94	Add to
A13	1139-1683-01	SEAL RING	£7.63	Add to
A14	1139-1715-01	BOLT 8 x 55	£21.67	Add to
B01	1139-1706-01	CENTRE CASE ASSEMBLY	£1,372.94	Add to
B02	1139-1058-01	KNOCK PIN (OBSOLETE)	N/A
B05	1139-1394-01	PIN (OBSOLETE)	N/A
B07	1139-1547-01	SPRING (SUCTION)	£6.94	Add to
B08	1139-1548-01	CHECK PLUG	£68.66	Add to
B09	1139-1549-01	BY-PASS PIN (OBSOLETE)	N/A
B10	1139-1371-01	BY-PASS ADAPTER	£36.13	Add to
B11	1135-3987-01	BOLT (OBSOLETE)	N/A
B12	1139-1368-01	CHECK VALVE F	£38.16	Add to
B13	1139-1372-01	BY-PASS LEVER	£61.17	Add to
B14	1139-1373-01	PLAT BY-PASS PLATE	£7.11	Add to
B15	1139-1522-01	WAVE WASHER	£4.01	Add to
B16	1139-1387-01	RING BACK-UP RING	£7.34	Add to
B17	1139-1102-01	WASHER	£5.75	Add to
B18	1139-1679-01	WASHER (OBSOLETE)	N/A
B19	1139-1496-01	PARALLELL PIN	£2.00	Add to
B20	1139-1395-01	PIN (OBSOLETE)	N/A
B21	1139-1112-01	O RING	£4.01	Add to
B22	1139-1115-01	O RING	£1.79	Add to
B23	1139-1687-01	BOLT (OBSOLETE)	N/A
B24	1139-1585-01	BOLT (OBSOLETE)	N/A
B25	1139-0247-01	NUT (OBSOLETE)	N/A
